Control panel of the PTZ camera

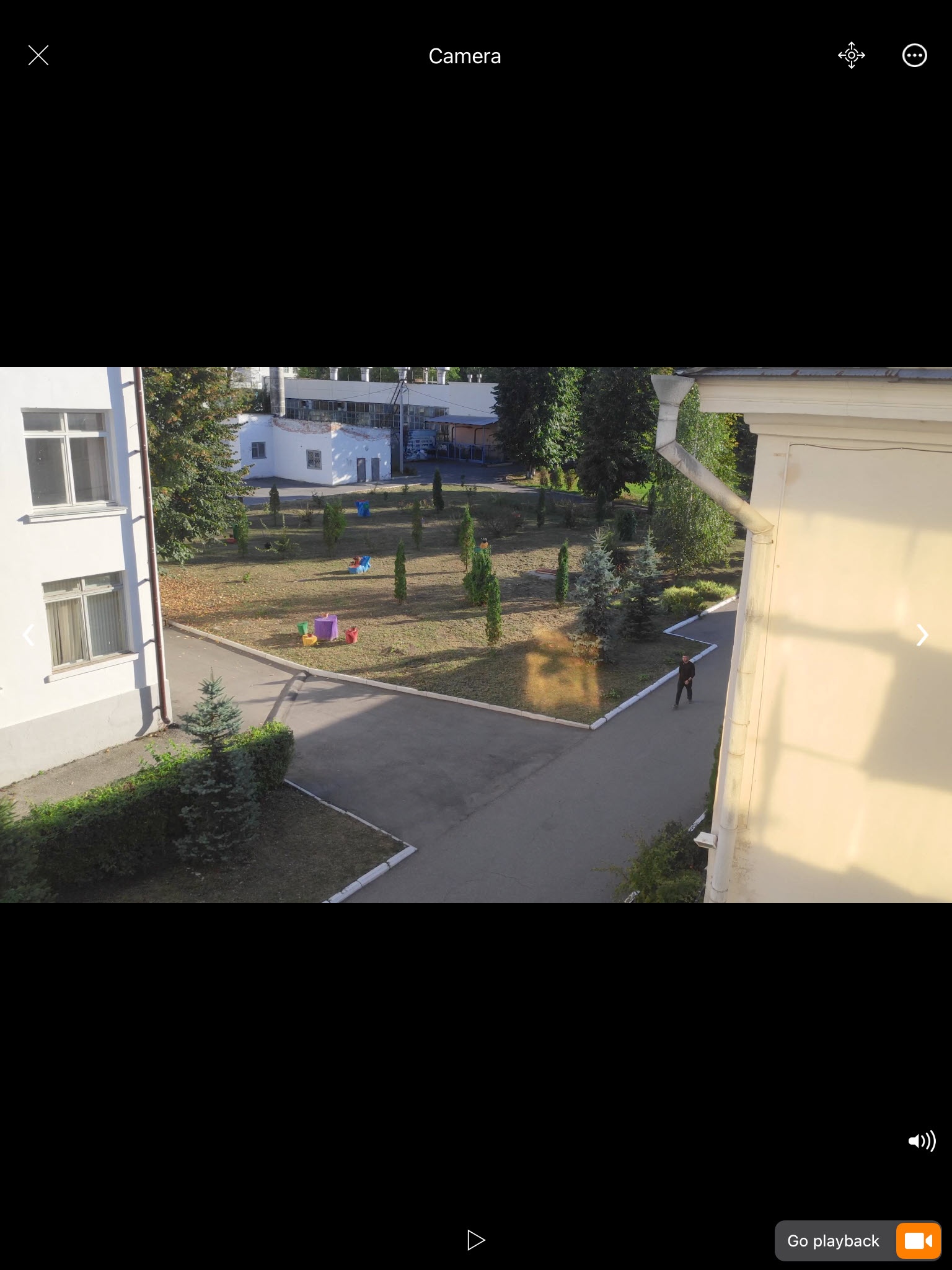

In the AxxonNet mobile client you can control the PTZ camera. To do this, in the live video mode of the corresponding camera, click the
To control PTZ cameras, open a viewing tile for the corresponding camera and click the
button in the upper right corner.
As a result, the PTZ control panel will be displayed in the lower part of the screen.
...
Controlling
...
the PTZ camera
...

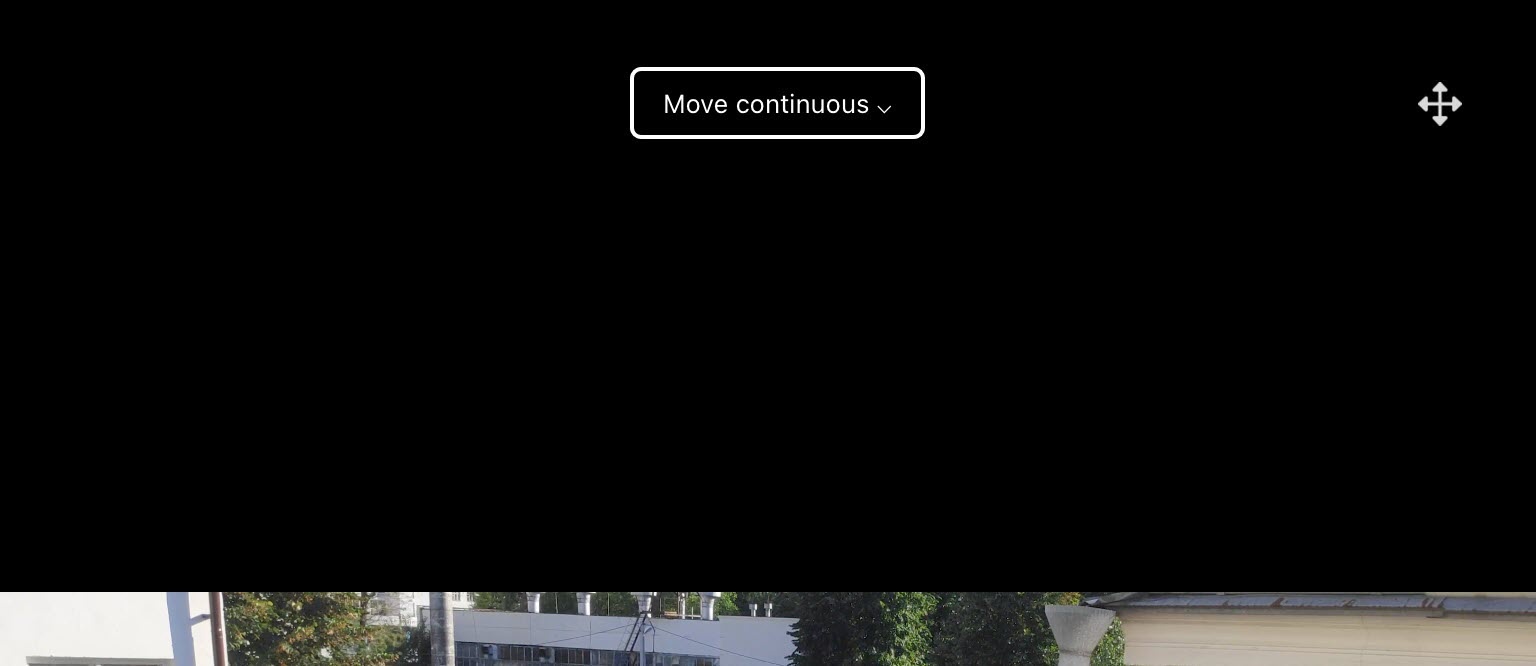

The current way mode of the PTZ camera control is displayed in at the upper part top of the screen. Click it

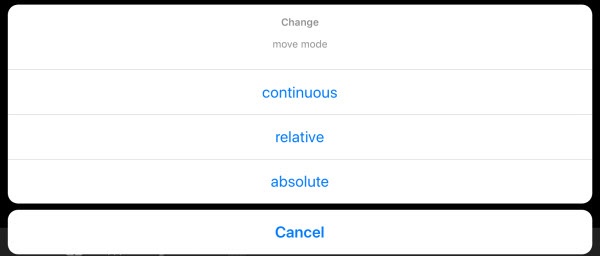

Click the current mode of control to select other ways modes of the PTZ camera control:
- continuous - is a — continuous camera movement.
- relative - is a relative — relative camera movement.
- absolute - is an — absolute camera movement.

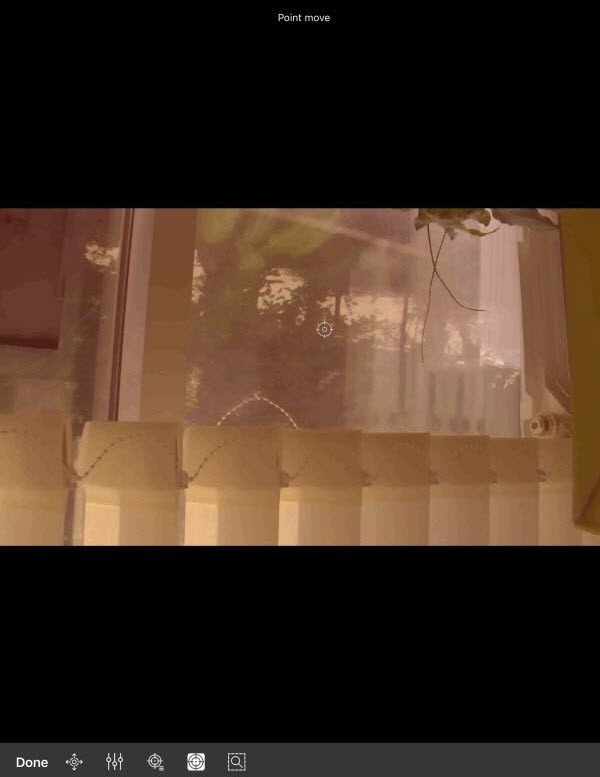

To move the camera, you can use the gray circle or square (depending on the way mode of controlling) which emulates the joystick movement. It is You can also possible to move the camera using the
button. After clicking the the button, it is necessary to specify the point in any area of the video image to position the camera lens there.

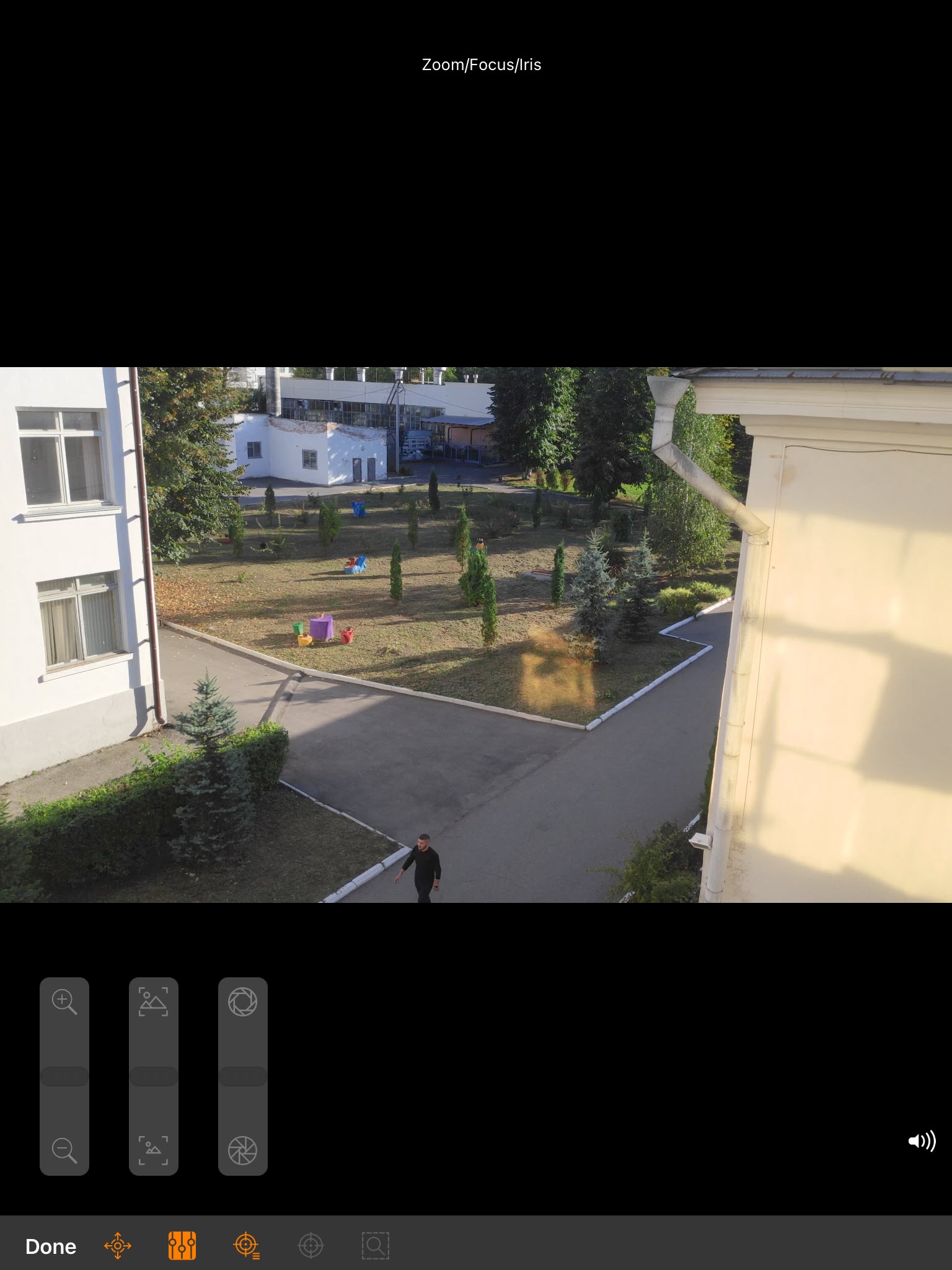

Changing the scale, focus, IRIS adjustment (manual iris).
Click the
button to zoom in/out the image, change the focus, or adjust IRIS (manual iris).
Execute Configure the required settings using the displayed sliders.
| Info | ||
|---|---|---|
| ||
The quantity number of the available sliders depends on the camera. |
Configuring the presets
To proceed go to the preset list, click the the
button. As a result, the presets will be displayed in the left part of the screen if they exist.
...
To remove the presets, click the
button. As a result, the presets will become red, and the cross icons will appear next to them. Click on the presets to remove them. If the the
button is clicked again, the preset list will go back to the selection mode.

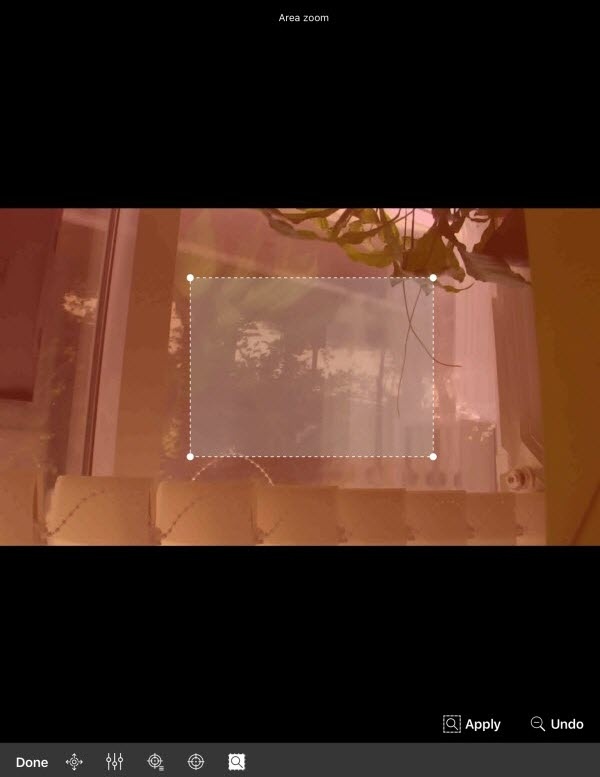

Focusing on the specific area
You can focus on the specific area of the video image. To do sothis, click the the
button and specify the size of the appeared frame. Click the
button to expand this area to fit the surveillance window. To cancel, click the
button.
...
Finishing working with the PTZ camera
...
To complete finish working with the PTZ camera, click the the
button. As a result, the PTZ control panel will be hidden.
...
