To configure the Web-Client, you need todo the following:

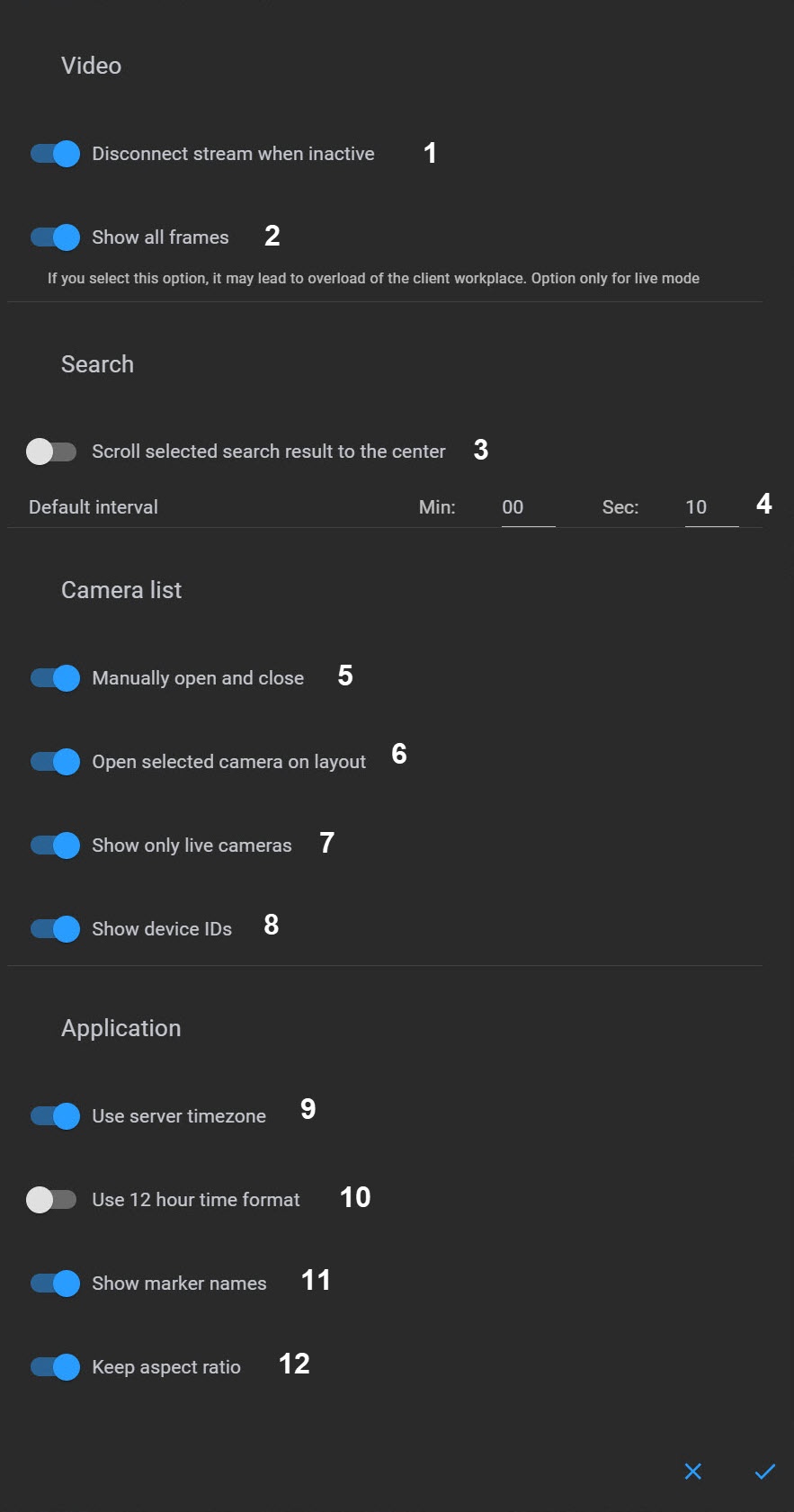

  1. Click the button in the top - right corner and select Preferences.

  2. By default, when you switch to another tab in the browser and minimize it, the video stream transmission stops. In order not to interrupt the video stream transmission, disable the Disconnect stream when inactiveparameter option (1). This setting is common to all Web-Client users in a particular browser.
    Image Modified

  3. By default, if a layout with several cameras is open on the screen, then only the key frames (I- frames ) are displayed for all H.264 format cameras. If you select a specific video camera, all frames will be displayed. In order to display all frames in the H.264 format, regardless of whether a video camera is selected or not, activate enable the Show all framesparameter option (2). This setting is common to all Web-Client users in a particular browser.
  4. By default, the H.264 codec is used for fast archive playback. In order to use the MJPEG codec, activate enable the Use MJPEG for fast archive playback option parameter (3). This setting is common to all Web-Client users in a particular browser.
  5. To position the retrieved video found fragment in the center of the screen, activate enable the Scroll selected search result to the center option parameter (4). This setting is common to all Web-Client users in a particular browser.

  6. Set the default interval for Time Slice the TimeSlice (5, see Types of Archive archive search available via in the Web-Client). This setting is common to all Web-Client users in a particular browser.

  7. By default, the cameras Cameras panel does not close after you select a device. To minimize the panel, deactivate disable the Manually open and closeparameter option (6). This setting is common to all Web-Client users in a particular browser.

  8. When you select a camera in cameras the Cameras panel, the layout featuring this camera's window opensa layout containing the selected camera will open. If there are several such layouts, then the one with fewer cells is selected. To expand the video camera view to full screen, deactivate disable the Open selected camera on layoutparameter option (7).  This setting is common to all Web-Client users in a particular browser.

  9. By default, only enabled cameras are displayed in the Web-Client . In order for displays only the enabled cameras. If you want the Web-Client to display all cameras, deactivate disable the Show only live camerasparameter option (8). This setting is common to all Web-Client users in a particular browser.
  10. By default, the Web-Client displays the cameras IDs. In order to disable the cameras IDs display, disable the Show device IDs parameter (9). This setting is common to all Web-Client users in a particular browser.
  11. By default, the Web-Client cameras and bookmarks display the Server time. In order for If you want the Web-Client cameras and bookmarks to display the PC client time, deactivate disable the Use server timezoneparameter option (910). This setting is common to all Web-Client users in a particular browser.
  12. By default, the Web-Client displays time in the 24-hour format. In order for If you want the time to be displayed in the 12-hour format, deactivate disable the Use 12 hour time format in the calendar parameter option (1011). This setting is common to all Web-Client users in a particular browser.
  13. Click the  button.
