Configuring VideowallVideo wall

To configure the videowall mode, do the following:

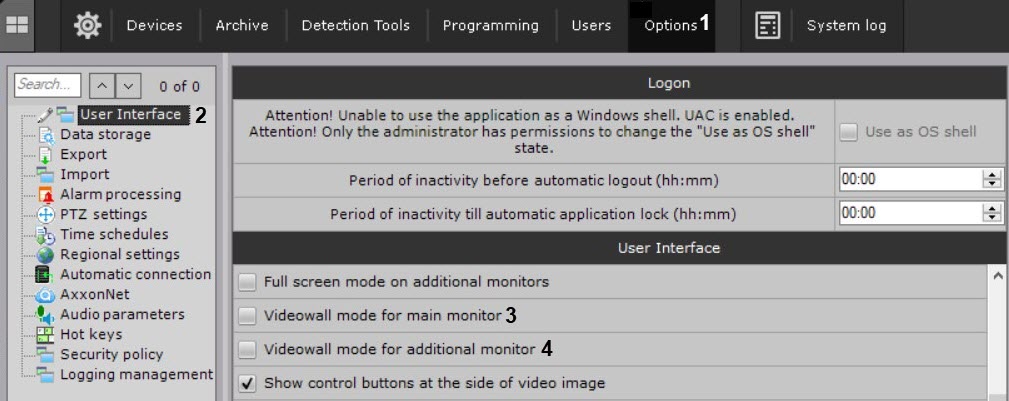

  1. Go to Settings → Options (1) → User Interface (2).

  2. To use the videowall mode on the main monitor, set the Videowall mode for main monitor checkbox (3).

  3. To use the videowall mode on the additional monitor, set the Videowall mode for additional monitor checkbox (4).

  4. Click the Apply button.

  5. Restart Axxon One (see Shutting down an Axxon One ClientStopping the client, Starting an Axxon One Clientthe client).

The videowall mode is configured.

...

  1. On the main monitor, the panel pin button won’t be active (see Interface of the Axxon One Software Package). The archive Archive navigation panel and the Event Board (see The Archive Navigation Panel), the Layouts panel (see The Layouts panel), messages about system errors that occurred (see Control in Live Video mode), the Alert panel (see Alert panel) won't be displayed.
  2. The additional monitor won’t display the objects Objects panel (see Objects Panel Object panel), the archive Archive navigation panel and the Event Board (see The Archive Navigation Panel).The Alarms , the Alert panel (see Alert panel).
  3. The map and the map (see Working with the Interactive Mapinteractive map) will be available on the main monitor and on the additional monitor.
