If the Operator protocol should use requires using an external database that is different from the default one used in Axxon PSIM, configure the connection to the such an external database server as follows:

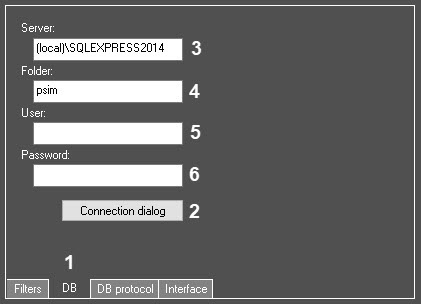

1. Go to the DB tab on the settings panel of the Operator protocol object settings panel (1).


   Info
   title Note.
   Parameters set at Axxon PSIM ™ software installation  installation are used by default to connect to the database server.

2. Set the connection parameters in one of the following ways:

   1. Click the Connection dialog button (2) and set the parameters for connecting to an the external database using the standard dialog box – window (see Configuring the database server connection in a dialog mode (2).
   2. Set connection parameters manually:


      1. In the Server field (3), set enter the name of the database server to connect to (3).

         Info
         title Note.
         Working When you work in the distributed configuration it is needed to , you must enter the name of the computer where the database is stored without the (local) value where the database is stored. For example, "WS1\SQLEXPRESS", where WS1 is the name of the computer on which the database is stored. Connection is performed only to the database that is specified in the settings. The data about the objects is requested from this database and matched with the data sent from the server that contains these objects. That is why you cannot display the operator protocol set to the computer with the installed vertical solution and database on the computer where they aren't present.

      2. In the Folder field (4), set enter the name of the database to store events (4).
      3. In the User field (5), set enter the username for the authorization on the database server (5).
      4. In the Password field (6), set enter the password for the authorization on the database server (6).
3. Click the Apply button.

Configuring the connection to the external database of the configuration is complete.
