Get frame by timestamp

GET http://IP-adressaddress:port/prefix/archive/media/{VIDEOSOURCEID}/{STARTTIME} - – gets frame by its STARTTIME. Frame is returned in JPEG format.

tip
Tip
  • {VIDEOSOURCEID}
-
  • – three-component source endpoint ID (
see SERVER1
  • Server1/DeviceIpint.3/SourceEndpoint.video:0:0".
  • {STARTTIME}
 -
  • – time in ISO format.
 Set
  • Set the timezone to UTC+0.


ParameterRequiredDescription
thresholdNo

Available from Axxon Next 4.4.1.9245.

If there is no frame at a given time, then the first frame from the [STARTTIME; STARTTIME + threshold] range is returned, where threshold is specified in milliseconds.

If there is no frame in the specified range, then there will be a 404 Not Found error in the response.

w

h

No

w – frame width, h – frame height.

Info
titleNote

If h and w values are more than size of original frame, the frame will be received with original size.

Zooming out of width and height is available only discretely - – in 2, 4, 8 times, etc. If specified sizes are not corresponding to 1/2, 1/4 etc. of original frame size, the frame will be received with size divisible by the original frame size close to specified values.

crop_x

crop_y

crop_width

crop_height


left

top

right

bottom

No

left

No

Available from Axxon Next 4.4.1.9115.

crop_x – horizontal indent from the upper left corner. Possible values are 0 to 1. The default is 0.crop_y

top – vertical indent from the upper left corner. Possible values are 0 to 1. The default is 0.

crop_widthright – the ratio of the original image width. Possible values are 0 to 1. The default is 1.

crop_heightbottom – the ratio of the original image hight. Possible values are 0 to 1. The default is 1.

Sample request: 1:

GET http://127.0.0.1:80/archive/media/SERVER1/DeviceIpint.1/SourceEndpoint.video:0:0/20210910T092100

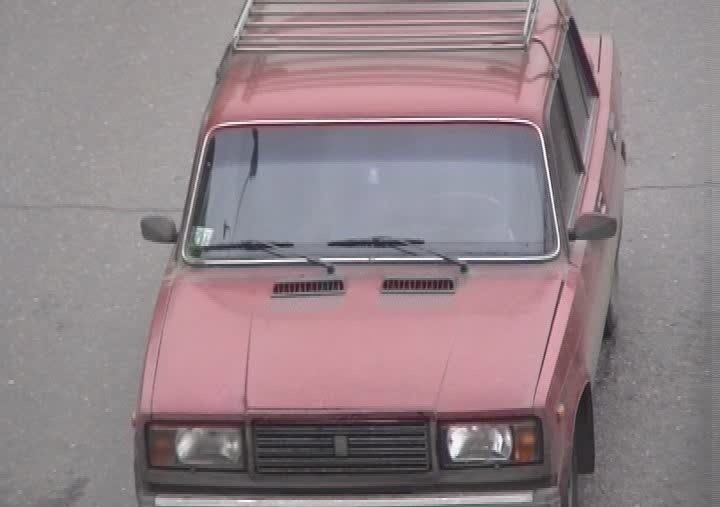

Query result:
Image Added

Sample request: 2:

GET http://127.0.0.1:80/archive/media/SERVER1/DeviceIpint.1/SourceEndpoint.video:0:0/20210910T092200?archive=hosts/SERVER1/MultimediaStorage.AntiqueWhite/MultimediaStorage

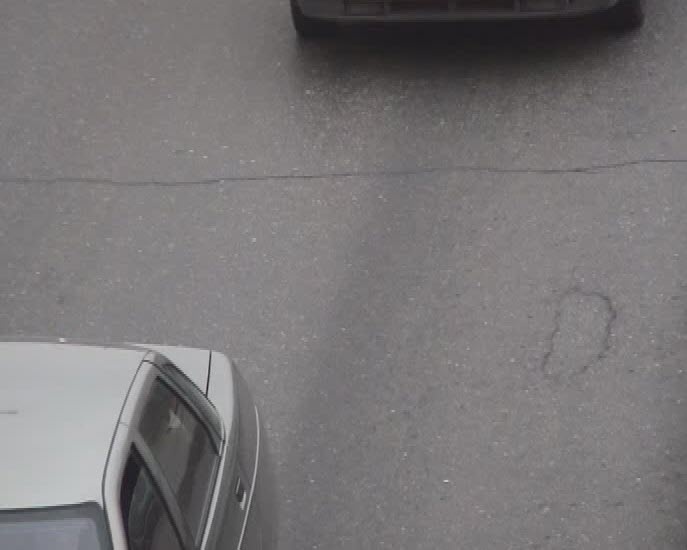

Query result:
Image Added

Get frame registration time

GET http://IP-Addressaddress:port/prefix/archive/contents/frames/{VIDEOSOURCEID}/{ENDTIME}/{BEGINTIME} – getting the time of frames registration in the archive.

...

ParameterRequiredDescription
limitNo

The default value of limit parameter is 250. This parameter is optional for server Server and it can return fewer search results.

...

GET http://127.0.0.1:80/archive/contents/frames/SERVER1Server1/DeviceIpint.2/SourceEndpoint.video:0:0/past/future?limit=3

...

Code Block
{
  "frames": [
    "20200525T113229.649000",
    "20200525T113229.100000",
    "20200525T113228.588000"
  ],
  "more": true
}


ParameterDescription
frames

An array containing the timestamps of the stored frames.

Info
titleNote

Time is returned in the UTC format.


more

true

-

– the

server

Server returned all frames from the specified range.

false

-

– the

server

Server did not return all

frames because

frames because the limit was exceeded (limit parameter).
