№ | Parameter name | Parameter setting method | Description | Data type | Default value | Value range | ||||
| 1 | Countrydrop-down list | Select value from the list | For AUTO-Uragan, VIT, RoadAR, LPR IntelliVision software modules | |||||||
| Selection of the country which numbers it is necessary to recognize | List of available national license plate templates | Depending on the recognition module | Depending on the number of available national license plate templates | |||||||
| Module drop-down list | Select value from the list | For CARMEN-Auto, ARH-Carriages, ARH-ContainersRailway software modules | ||||||||
| Selection of the license plate recognition SDK | List of license plate recognition SDK | Depending on the recognition module | Depending on the number of installed license plate recognition SDK | |||||||
2 | Select cameras group | |||||||||
License plates recognition drop-down listrecognition | Select value from the list | Main video camera for license plate recognition | List of available Camera objects | Camera 1 | Depending on the number of available Camera objects | |||||
Synchronous recording drop-down listrecording | Select value from the list | Additional video camera operating together with the main camera | List of available Camera objects | None | Depending on the number of available Camera objects | |||||
Auto recordingcheckbox | Set the checkbox | Enabling the automatic recording on the LP number recognition | Boolean | No | Yes — automatic Yes—automatic recording enabled, No — automatic No—automatic recording disabled | |||||
Auto recording, s fields | Enter the value in the text field | Setting the auto recording duration (in seconds) | Seconds | 10 | 0-86400 | |||||
| Enable on motion detection trigger checkbox | Set the checkbox | Starting auto recording on receiving an event from the motion detector | Boolean | No | For normal mode: Yes — if Yes—if the camera is armed, the LPR channel scans all video images until the basic motion detection of the Intellect software is in the Alarm mode; If the camera is not armed, the LPR doesn't work, but manual start using scripts is available (see item 6 in the Scripts used in the Auto-Intellect software package section). Recognition will process frames until the stop command will be done No — the No—the LPR channel scans video images permanently For Parking mode: Yes — if Yes—if the camera is armed, the LPR channel scans all video images, until the plate will be recognized, after it recognition stops even if the Alarm mode is still in process and procedure repeats when the new trigger of alarm is activated; if the camera is not armed, the LPR doesn't work, but manual start using scripts is available (see item 6 in the Scripts used in the Auto-Intellect software package section). Recognition will process frames until the plate will be recognized and then will stop before new manual start No — the No—the LPR channel scans video images permanently | |||||
| Reduce large resolution checkbox | Set the checkbox | Frame handling setup | Boolean | Yes | Yes — the Yes—the lesser frame is stretched, the bigger one is cut off No — theNo—the lesser frame is stretched, the bigger one is handled without changes | |||||
3 | Settings button Not available for:
| Click the button | Access to frame sign settings | - | - | - | ||||
| 4 | Entry checkbox | Set the checkbox | The vehicle movement direction will be treated as Entry to the territory | Boolean | No | Yes — the Yes—the LPR channel considers the vehicle's movement direction as Entry to the territory No — the No—the LPR channel does not consider the vehicle's movement direction as Entry to the territory Note. This setting is taken into account in the Intellect Web Report System when working with Auto reports (see Intellect Web Report System. User Guide) | ||||
...
№ | Parameter name | Parameter setting method | Description | Data type | Default value | Value range |
|---|---|---|---|---|---|---|
| 1 | Detection settings group | |||||
Area search threshold field. Available for:
| Enter the value in the text field | Detecting zone sensitivity | Number | 60 | 0-100 | |
Max. width field. Available for:
| Enter the value in the text field | Maximum available width of license plate | Percentage of frame width | 21 | 0-100 | |
Max. height field. Available for:
| Enter the value in the text field | Maximum available height of license plate | Percentage of frame height | 9 | 0-100 | |
Button X Available for:
| Click the button | Access to the interactive interface of setting the area width and height | - | - | - | |
Min. width field. Available for:
| Enter the value in the text field | Minimum available width of license plate | Percentage of frame width | - | 0-100 | |
Min. height field. Available for:
| Enter the value in the text field | Minimum available height of license plate | Percentage of frame width | - | 0-100 | |
Button X Available for:
| Click the button | Access to the interactive interface of setting the area width and height | - | - | - | |
Cut image with vehiclecheckbox. Available for:
| Set the checkbox | Set up the detection settings to the image with a car | Boolean | No | Yes — frame Yes—frame with a vehicle is cutNo — frame No—frame with a vehicle is not cut | |
Allow recognition on demand checkbox. Available for:
| Set the checkbox | Enable the image recognition on demand | Boolean | No | Yes — onYes—on-demand image recognition is enabled No — onNo—on-demand image recognition is disabled | |
| 2 | Search area border, % group | |||||
| Leftfield | Enter the value in the text field | Left edge of the LP number search area (%) | % relative to the width of the surveillance window | 0 | 0-100 | |
| Top fieldTop | Enter the value in the text field | Top edge of the LP number search area (%) | % relative to the width of the surveillance window | 0 | 0-100 | |
| Right field | Enter the value in the text field | Right edge of the LP number search area (%) | % relative to the width of the surveillance window | 100 | 0-100 | |
| Bottom fieldBottom | Enter the value in the text field | Bottom edge of the LP number search area (%) | % relative to the width of the surveillance window | 100 | 0-100 | |
| Search areacheckbox | Set the checkbox | Enabling the option of the LP number search area boundaries setting | Boolean | No | Yes — the Yes—the option of the LP number search area boundaries setting is enabled No — the No—the option of the LP number search area boundaries setting is disabled | |
| Button X | Click the button | Setting the search area using the mouse | - | - | - | |
| 3 | Direction group | |||||
| Direction calculation drop-down list. | Select value from the list | Sets the mode of determining the vehicle's movement direction | List | by LP position | by LP position — the position—the direction is determined by the position of the upper part of the LP number. If the upper part of the LP number at the start of tracking is lower than the upper part of the LP number at the end of tracking, then the direction is defined as From the camera, otherwise — To the camera. by LP area — the area—the direction is determined by the license plate area. If the LP area at the start of tracking is larger than the LP area at the end of tracking, then the direction is defined as From the camera, otherwise — To the camera. by SDK — the SDK—the direction is determined by the SDK. Currently, the following LP recognition modules support this mode: RoadAR, VIT, AUTO-Uragan, LPR IntelliVision | |
Direction drop-down list. Available for:
| Select value from the list | Setting the traffic direction to detect the LP numbers | List | any | Any — the Any—the direction of movement from the video camera or towards the video camera From the camera — the camera—the direction of movement from the video camera To the camera — the camera—the direction of movement towards the video camera For the IntLab, RIDR IntelliVision and CIDR IntelliVision modules, the direction of carriage movement in the camera view is selected from left to right or from right to left | |
Undefined checkbox Available for:
| Set the checkbox | Enables to display the direction as Undefined in the Vehicle Tracer module, if it is impossible to determine the vehicle direction | Boolean | Yes | Yes — if Yes—if it is impossible to determine the direction of vehicle movement, the direction is displayed as Undefined No — if No—if it is impossible to determine the direction of vehicle movement, the direction is not determined | |
Record violation checkbox. Only used when direction is selected in the Direction list (To the camera/ | Set the checkbox | Enabling event generating in case of vehicle entering an oncoming lane | Boolean | Yes | Yes — in Yes—in case if the direction of vehicle moving is not coincide with the specified in the Direction list, the Entered the oncoming lane alarm event will be created No — the No—the Entered the oncoming lane alarm event is not created | |
The Saving settings tab
№ | Parameter name | Parameter setting method | Description | Data type | Default value | Value range |
|---|---|---|---|---|---|---|
| 1 | Record frames to SQL |
DB | Set the checkbox | Saving video frames of vehicle's recognized number into SQL DB | Boolean | Yes |
Yes—the frame with a vehicle is saved into the database |
No—the frame with a vehicle is not saved into the database |
Show |
captions | Set the checkbox | Enabling the LP number titles overlaid with the video image while making report about the recognized number | Boolean | Yes |
Yes—captions overlay enabled |
No—captions overlay disabled |
Deinterlace | Set the checkbox | Enables de-interlacing of video frame with a vehicle when the image is received in full resolution | Boolean | No |
Yes—de-interlacing of video frame with a vehicle is implemented |
No—de-interlacing of video frame with a vehicle is not implemented |
Ratio 4: |
3 | Set the checkbox | Set the ratio 4:3 of video frame's width and height while making report about the recognized number | Boolean | Yes |
Yes—video frame with a vehicle is displayed in ratio 4:3 |
No—initial ratio of the frame while making report about the recognized number is not changed | ||||||
| 2 | Settings of results filtering group | |||||
| Min. number of characters in | ||||||
| LP | Enter the value in the text field | Minimum number of characters in the license plate number | Number | - | >0 |
| Min. recognition quality, % |
| Enter the value in the text field | Minimum image quality for license plate recognition | % | - | 0-100% | |
| Min. time of LP repetition, |
| s | Enter the value in the text field | Minimum time of repetition of the license plate on video | Seconds | - | Up to 60 seconds |
| 3 | Archive size, days |
| Enter the value in the text field | Database archive depth | Days | 30 | 0-5000 |

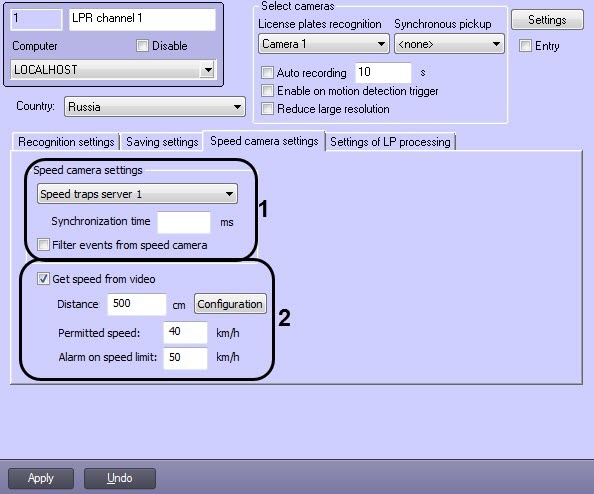

The Speed camera settings tab
№ | Parameter name | Parameter setting method | Description | Data type | Default value | Value range |
|---|---|---|---|---|---|---|
| 1 | Speed camera settings group | |||||
Speed camera settings | ||||||
Select the value from the list | Selecting the speed camera to work together with LPR channel | List of available Speed traps objects | Not specified | Depending on the number of available Speed traps objects | |
Synchronization |
time | Enter the value in the text field | The time it takes the car to move from the point of speed detection by the Speed traps server module to the viewing zone of the camera | Milliseconds | Not specified | 0-20000 |
Filter events from |
speed camera | Set the checkbox | Enables saving the first speed detected only | Boolean | No |
Yes—only the first detected speed value is used, others are ignored until the delay expires or the number is recognized |
No—all speed values are used | |
| 2 | Get speed from video |
Available for:
| Set the checkbox | Enables estimation of speed by video via the Auto Intellect algorithm | Boolean | No |
Yes—vehicle speed is estimated by video, the results are displayed over video image as captions |
No—vehicle speed is not estimated by video |
| Configuration |
| Click the button | Opens a dialog box to set a line segment | - | - | - | |
| Distance |
| Enter the value in the text field | Sets length of the line segment in the Get speed from video dialog box, in centimeters | Number | - | >0 | |
| Permitted |
| speed | Enter the value in the text field | Sets permitted vehicle speed on the observed lane | Number | 60 | >0 |
| Alarm on speed |
| limit | Enter the value in the text field | Sets maximum vehicle speed. If this speed is exceed, an alarm event is generated | Number | 80 | >0 |

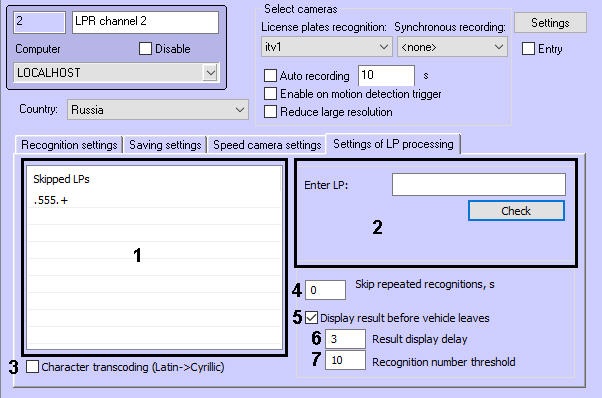

The Settings of LP processing tab
№ | Parameter name | Parameter setting method | Description | Data type | Default value | Value range |
|---|---|---|---|---|---|---|
| 1 | Skipped LPs |
| Use functional menu | Contains the LP number templates by which the recognized numbers will be ignored if they match the created list by some criterion. For example, the LP numbers of a specific region can be ignored | String | - | - | |
| 2 | Enter LP |
| Enter the value in the text field | Specifies an LP number to check if it is contained in an existing template or not | Number | - | >0 | |
| Check button | Click the button | Activates the check of the specified LP number against the existing template | - | - | - |
| 3 | Character transcoding (Latin->Cyrillic) |
| Set the checkbox | Enables the automatic transcoding of Latin characters into Cyrillic, if the license plate recognition module returns the recognized numbers in Latin characters | Boolean | No |
Yes—automatic transcoding of Latin characters to Cyrillic is enabled |
No—automatic transcoding of Latin characters into Cyrillic is disabled | |
| 4 | Skip repeated recognitions, |
| s | Enter the value in the text field | Specifies the time period in seconds during which the repeated recognition of one captured license plate will be ignored by the system | Seconds | 0 | >=0 |
| 5 | Display result before vehicle leaves |
Available for:
| Set the checkbox | Enabling the results to be displayed before the car leaves the viewing zone | Boolean | Yes |
Yes—the result is displayed before the vehicle leaves the frame (the license plate of the given vehicle is out of the license plate search boundaries) |
No—the result is displayed only after the vehicle leaves the frame | |
| 6 | Result display delay |
Enter the value in the text field | The time delay between the first recognition of the LP number and displaying the results | Seconds | 3 | 0-100 | |
| 7 | Recognition number threshold |
Enter the value in the text field | The number of reliable license plate recognitions, after which the recognition result is displayed | Number | 2 | 0-1000 |
