General information

While setting the LPR channel with active AUTO-Uragan/VIT/RoadAR/LPR IntelliVision module, it is necessary to specify the country to be able to identify the plates belonging to that country.

...

While setting the LPR channel with active CARMEN-Auto/ARH-Railway/ARH-Containers module, it is necessary to specify the license plate recognition SDK.

Selecting the

...

country for license plate recognition

To select the country, do the following:

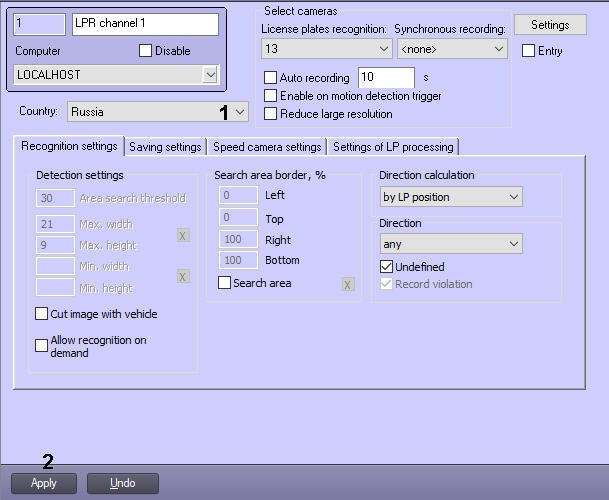

1. Go to the settings panel of the LPR channel object representing the activated recognition module.


2. From the Country drop-down list (1), select the installed country for license plate recognition.

   Note
   title Attention!
   The By default value is available. In this case it will be possible to recognize license plates of all supported countries, though the recognition quality may become worse.




   Note
   title Attention!
   There is a special utility for the VIT and AUTO-Uragan modules—see PatCgfr.exe utility for active patterns configuration or PresetEditor.exe utility for active patterns configuration of VIT module—using which it is possible to set template configurations. Each configuration defines what license patterns will be recognized by the camera. Using various configurations it is possible to set various recognition rules for various cameras.




   Info
   title Note
   If the software module supports the two-line license plates recognition, then in order to display them in the Event Log in two lines, it is necessary to set the RemoveNewLine registry key value to 0 (for details, see Registry keys reference guide, for more information about working with the registry, see Working with Windows OS registry).




3. Click the Apply button (2).

Selecting the license plate recognition SDK

To select the license plate recognition SDK, do the following:

...
