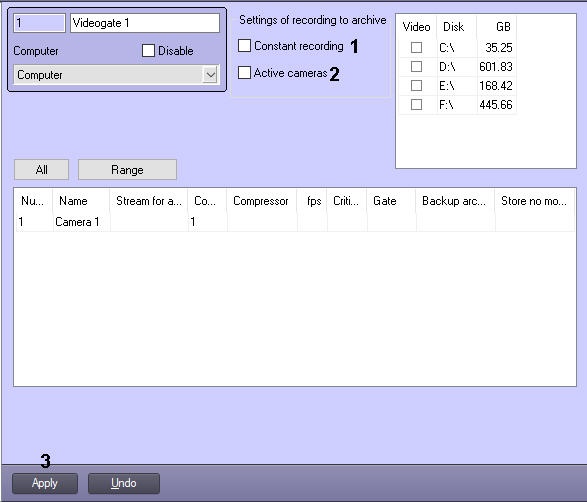

1. Go to the Videogate object settings panel.

2. If it is necessary to provide continuous recording on all cameras added to the Videogate regardless of whether the Server records its archive or not, set the Constant recording checkbox (1).
3. If it is necessary to provide recording of the Videogate module archive only by cameras requested on clients (i.e. displayed in the Video surveillance monitor), set the Active cameras recording checkbox (2).
4. Click Apply (3).

Configuring the recording of the Videogate module archive is completed.

...

Specifics of the Videogate operation with different combinations of set checkboxes for archive recording are described in the table:

Constant recording	Active cameras recording	Disk for storing the archive is selected	Result: video streams and recording
			Continuous video stream from the Server, no recording of the Videogate module archive
			The video streams from the Server only if it is displayed on the Video surveillance monitor, no recording of the Videogate module archive
			Continuous video stream from the Server, no recording of the Videogate module archive
			The video streams from the Server only if it is displayed on the Video surveillance monitor, no recording of the Videogate module archive
			Continuous video stream from the Server, recording of the Videogate module archive is similar to the Server
			The video streams from the Server only if it is displayed on the Video surveillance monitor. Recording of the Videogate module archive is similar to the Server, but only when the video is displayed on the Video surveillance monitor
			Continuous video stream from the Server, continuous recording of the Videogate module archive
			The video streams from the Server only if it is displayed on the Video surveillance monitor. The video is recorded of the Videogate module archive only when it is displayed on the Video surveillance monitor

...
