The main recognition video camera is directed at the driving lane. The additional video camera covers the same area as the main video camera, but it can be mounted in another place. The two Two video cameras can be controlled synchronously using scripts or macros.

...

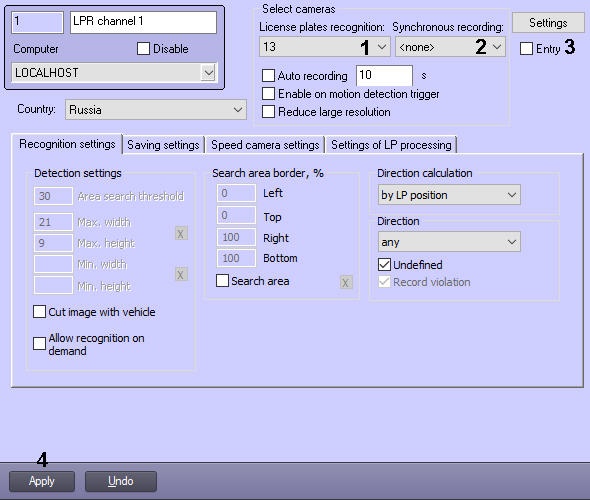

1. Go to the LPR channel object settings panel, corresponding to the activated module (see Activating the software module used for identifying the plates).


2. From the License plates recognition drop-down list (1), select a required Camera object (the main camera for LP number recognition).

   Info
   title Note
   The same camera can be used for various LPR channels.




3. From the Synchronous recording drop-down list (2), select a required Camera object (the additional synchronous camera). To get a contextual frames from an ANPR camera, you must select the same camera that is selected as the main one.

   Note
   title Attention!
   Frames recording from the synchronous video camera is performed are recorded only if permanent record by continuous recording is enabled on both video cameras is performing.




4. If it is necessary for the LPR channel to consider the vehicle's movement direction as Entry to the territory, set the Entry checkbox (3).

   Info
   title Note
   This setting is taken into account in the Intellect Web Report System when working with Auto reports (see Intellect Web Report System. User Guide).




5. Click the Apply button (4).

...
