To use and configure captions, for each camera on which you want to use captions, you must create a Captioner object.

Note
titleAttention!

If multiple captioners have been created for a single camera, the Agent of Of Control uses the captioner with the lowest ID number.

...

To configure the font and display area used for captions:

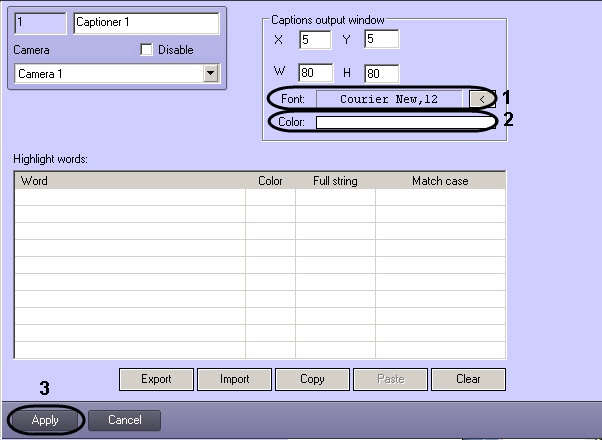

  1. In the device hardware tree, click the relevant Captioner object. On the right side of the System settings dialog box, the configuration settings panel of the Captioner object is displayed.

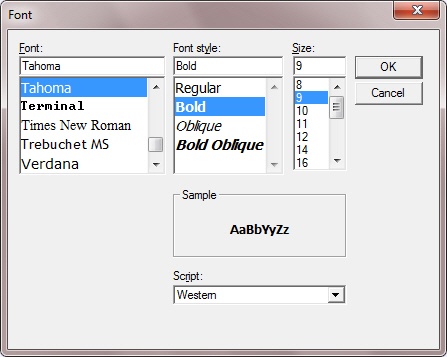

  2. If you click the button to the right of Font, a dialog box appears in which you can configure the font face and size (1).
  3. To configure the color of captions, double-click the area to the right of Color. A dialog box for configuring color appears (2).

...
