1. At the Server Of Control and Agent Of Control side:
   1. Create the Audio card object with the Microphone child object (see Audio subsystem configuration).
   2. Create the Audio playback card object with the Speaker child object (see Configuring audio playback).
2. At the Server Of Control side:
   1. Create the SIP-terminal object as a SIP-server in Intellect (see Configuring SIP-terminal).
   2. On the basis of the SIP-terminal object, create two SIP-operator child objects and for each of them specify the corresponding operator identification number (Configuring SIP-operators of the Intellect's SIP server).
   3. On the basis of the SIP-terminal object, create the Address book object and select the previously created SIP-operators (see Configuring address book of SIP-terminal).
   4. On the settings panel of each SIP-operator, select a previously created address book (see Configuring SIP-operators of the Intellect's SIP server).

   5. Create the SIP-panel 1 interface object on the same Display 1 object on which the Monitoring interface object was created (see Configuring the SIP-panel interface object).


      Info
      title Note
      Recommended coordinates of the SIP-panel: X = 40, Y = 40, W = 20, H = 21.




      1. On the Basic settings tab of the SIP-panel 1 object, select the SIP-terminal as the terminal (see Basic settings of the SIP-panel interface object).

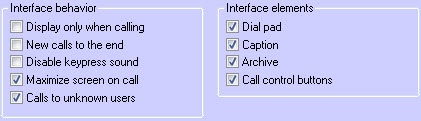

      2. On the Advanced settings tab of the SIP-panel 1 object, set the checkboxes as shown in the figure below (see Advanced settings of the SIP-panel interface object).



      3. On the Operator settings tab of the SIP-panel 1 object, configure the list of SIP-operators as shown in the figure below (see Operator settings of the SIP-panel interface object).



   6. Create the Display 2 object, which will be displayed only on the Agent Of Control side (see Assigning the displays to the operator workstations).
   7. Create the SIP-panel 2 child interface object.
      1. On the Basic settings tab of the SIP-panel 2 object, select the SIP-terminal as the terminal (see Basic settings of the SIP-panel interface object).

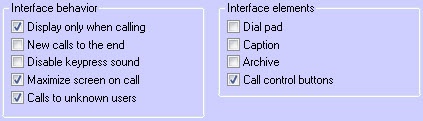

      2. On the Advanced settings tab of the SIP-panel 2 object check the boxes as shown in the figure below (see Advanced settings of the SIP-panel interface object).



      3. On the Operator settings tab of the SIP-panel 2 object, configure the list of SIP-operators as shown in the figure below (see Operator settings of the SIP-panel interface object).



   8. On the settings panel of the Computer object, select the speaker and microphone of the SIP-operator (see Selecting speaker, microphone and camera for SIP-operator).

...
