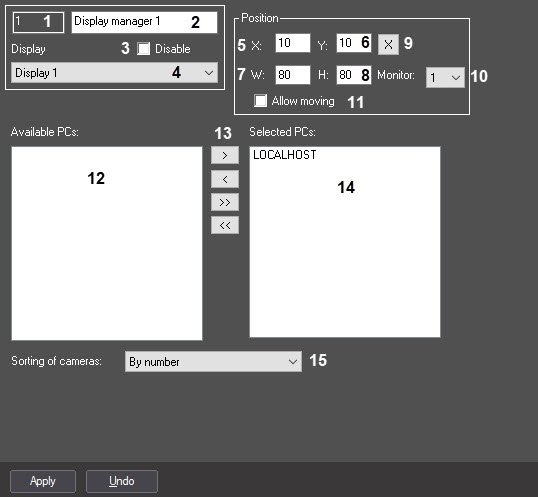

The settings panel of the Display manager object interface object is shown in the figure.
Table The table describes the setting parameters of the Display manager interface object.
| № | Parameter | Method for setting the parameter value | Parameter description | Representation | Default value | Value range |
1 | The Identification number* | Automatically | Displays the identification number of the Display manager |
object in the system |
Sequence of numbers
Digits, letters, periods, hyphen, dash, and underscore | NA |
Depends on the number of the Display manager objects in the system | ||
2 | The Name* | Enter the value |
in the field | Sets the name of the Display manager object in the system | Latin alphabet, Cyrillic, digits, and service characters | Display manager | A line containing a sequence of any characters (letters, digits, service characters except > and < characters), case-insensitive. Number of characters—from 1 to 60 |
3 | The Disable | Set the checkbox |
Disables the Display manager object in the system | Boolean type | Clear | Set—the Display manager object is disabled and isn't used |
Clear—the Display manager object is enabled and used | |||
4 | The Display | Select the value from the list | Sets the Display parent object |
for the given Display manager object |
Names of the Display objects registered in the system | Name of the Display parent object | Depends on the number of the Display objects in the system | ||||
| The Position group | ||||||
5 | The X field | Enter the value | ||||
in the field | Sets the X coordinate in the horizontal axis for the upper left corner of the |
display manager |
window | % of the screen width |
10 | From 0 to M*100, where M is the number of the installed monitors | |
| 6 | The Y field | Enter the value |
in the field | Sets the Y coordinate in the vertical axis for the upper left corner of the |
display manager |
window | % of the screen height |
10 | From 0 to M*100, where M is the number of the installed monitors | |
7 | The W field | Enter the value |
in the field | Sets the width of the |
display manager |
window | % of the screen width |
80 | From 0 to M*100, where M is the number of the installed monitors | |
| 8 | The H field | Enter the value |
| in the field | Sets the height of the |
display manager |
window | % of the screen width |
80 | From 0 to M*100, where M is the number of the installed monitors |
9 | The |
| Click the button | Opens the window for |
changing the size and position of the display manager object window | NA | NA | NA |
| 10 | The Monitor drop-down list | Select the value from the list |
Determines the number of the monitor in the system for which the coordinates are specified | Numbers of the monitors in OS | 1 | From 1 to 16 |
11 | The Allow moving | Set the checkbox | Allows moving the |
display manager |
window |
using the mouse | Boolean type | Clear | Set—allow moving the |
display manager |
window |
Clear—disable moving the |
display manager |
window |
| Out of the group | ||||||
| 12 | The Available PCs | |||||
| area | Click the button | Contains a list of the Computer objects that |
| aren't |
| selected to be managed via the |
| display manager | Names of |
| the Computer |
| objects registered in the system | Depends on the number of |
| the Computer objects registered in the system | Depends on the number of |
| the Computer |
| objects registered in the system |
| 13 |
The | Click the button |
| Moves the computers from the Available PCs list to the Selected PCs list and back |
| NA |
| NA |
| NA | |
| 14 | The Selected PCs |
| area | Click the button |
| Contains a list of the Computer objects that are selected to be managed via the |
| display manager | Names of |
| the Computer |
| objects registered in the system |
| NA | Depends on the number of |
| the Computer |
| objects registered in the system |
| 15 |
| The Sorting of cameras drop-down list | Select the value from the list | Sets the cameras' sorting method in the |
| display manager interface | Available sorting methods | By number |
|
*Name of the element isn't displayed in the settings panel of the given object
