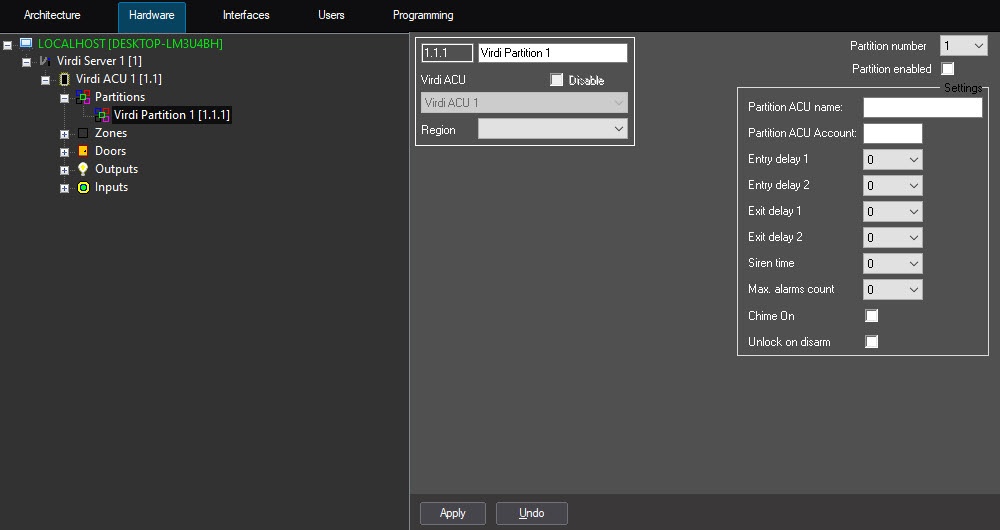

1. Go to the settings panel of the Virdi Partition object, which is created on the basis of the Virdi ACU object.
   Image Modified
2. From the Partition number drop-down list (1), select the input partition number from 1 to 4.
   Image Added
3. Set the Partition enabled checkbox (2) to checkbox to activate this partition.
4. In the Partition ACU name field (3), enter the partition name (maximum 16 characters).
   Image Added
5. In the Partition ACU Account field (4), enter the partition account number in the form of 4 four hexadecimal digits. By default, the account number matches the controller ID.
6. From the Entry delay 1 and Entry delay 2 drop-down lists (5), select the time delay in seconds for the entry: from 0 to 255.

7. From the Exit delay 1 and Exit delay 2 drop-down lists (6), select the time delay in seconds for the exit: from 0 to 255.

   Info
   title NotesNote
   Entry delay 1 and Exit delay 1 affect all zones of EXIT1 type. Entry delay 2 and Exit delay 2 affect all zones of EXIT2 type.




8. From the Siren time drop-down list (7), select the duration of the siren signal in seconds when an alarm occurs in the alarm section: from 0 to 255.
9. From the Max. alarms count drop-down list (8) select , select the maximum number of the siren repetitions when an alarm occurs in the alarm section: from 0 to 255.
10. Set the Chime On checkbox (9) if it is necessary for the reader to make 2 two short beeps when opening a zone such as EXIT1, EXIT2, or INSTANT and the partitions assigned to them. This can be used as an indicator of door opening, but not as an alarm indicator.
11. Set the Unlock on disarm checkbox (10) if it checkbox if it is necessary for the doors belonging to this partition to be automatically unlocked when the partition is disarmed. Doors will remain open until the partition is armed again.
12. Click the Apply button (11) to Image Added button to apply the settings.

...
