It's possible to create and configure inputs of AIM readersof AIM readers. The inputs track the defined certain states of reader and trigger messages on to which different reactions can be configured using scripts and macros.

Input of AIM SC reader is configured on the settings panel of the Apollo AIM SC Input object created on the basis of the Apollo AIM SC Reader object.

To configure the AIM SC reader input, do the following:

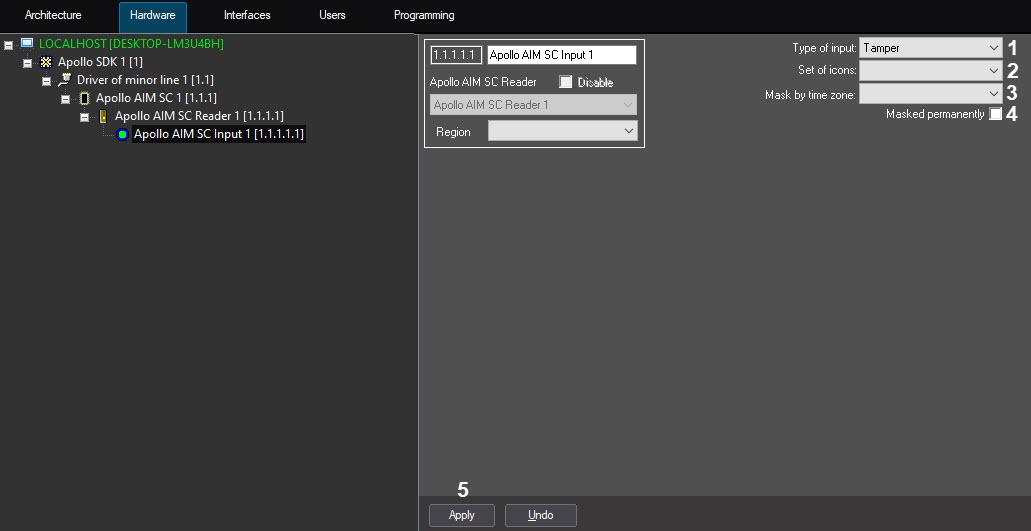

1. From the Type of input drop-down list (1), select the object corresponding to the required event.
   Image Modified

2. From the Set of icons drop-down list (2), select the corresponding icon that will be displayed on the Map interface object.

3. From the Mask by time zone drop-down list (3), select the time zone within which no events will be generated for the input.

4. Set the Masked permanently checkbox (4) to never generate the events for the input.

   Info
   title Note
   During the masking period, the input cannot be in an alarm state.




5. Click the Apply button (5).

...
