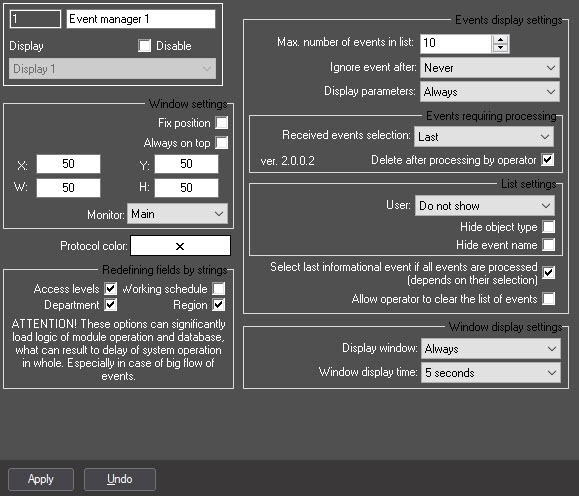

1. Go to the settings panel of the Event manager object.

2. Adjust the position of the Event manager interface window:
   1. Set the Fix position checkbox (1) to fix the interface window at specified coordinates excepting possibility to move it in the specified coordinates preventing it from moving on the screen. If the checkbox is set, the interface window is displayed without heading and it is impossible to change size of window by markings and to close it.
      Image Added
   2. Set the Always on top (2) checkbox top checkbox if it's required to display the interface window on top of all opened windows.
   3. To configure position of the Event manager window, specify coordinates of the window's upper left corner in the X and Y fields and its width and height in the W and H fields (3) fields.
   4. From the Monitor drop drop-down list (4),  select select the number of monitor in the system, on which the Event manager window is to must be displayed.

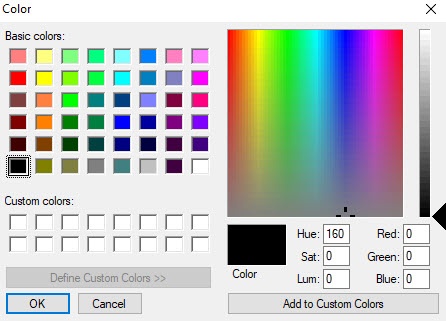

   5. Click the Protocol color button (5) if button if it is necessary to set an arbitrary protocol color in the Event manager window. As a result, the standard Windows color palette window opens, where in which you need to select the appropriate color.
      Image RemovedImage Added
3. In the Redefining fields by strings group (6), set the checkboxes next to the fields for which the digital values stored in the Axxon PSIM database should must be displayed as text:

   1. Access levels;
      Image Added
   2. Department;
   3. Working schedule;
   4. Region.
4. Specify settings for displaying events in the Event manager window:

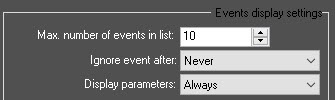

   1. In the Max. number of events in list field (7), specify field, specify the maximum number of events to that will be shown displayed in the Event manager window. The default value is 10. If you set the value to 0, the protocol located in the lower part of the Event manager interface window will be hidden, and the area of the specified Template of displaying will be proportionally enlarged.
      Image Added
   2. From the Ignore event after drop drop-down list (8), select the time period after which event will be ignored by the Event manager module. If time period from the moment of event receiving exceeds the specified period then such events won't be displayed in the Event manager window. Select the Never value to display all events of any period of limitation.
   3. From the Display parameters drop drop-down list (9), select the way of displaying section of the Event manager window containing parameters of a user related to the event:
      1. Always — section Always—section of the Event manager window containing user parameters is displayed all the time (see Example of working with the Event manager module). If event not relating to user is selected, then this section will be empty.
      2. Never — section Never—section of the Event manager window containing user parameters is not never displayed.
      3. If it's required — section required—section of the Event manager window containing user parameters is displayed only if there is user related to the selected event. In this case, only the user parameters specified on the Field and Additional field tabs on settings panel of the Rule of displaying object (see Configuring the sectionrules of displaying) will display. If the informational event is selected or the corresponding user is not found, then this section won't display.
   4. From the Selection of received events drop Received events selection drop-down list (10), select the way a method of selection selecting events requiring that require processing:
      1. Do not select — events select—events are not selected;
         Image Added
      2. First—only First — only the first event is selected;
      3. Last — only Last—only the last event is selected.
   5. Set the Delete after processing by operator checkbox (11) to delete the events that were already processed by the an operator from the list and leave only the current events.
5. Specify the protocol list settings of the Event manager window:
   1. In the User field (12), select the option to display the user's last name, first name and patronymic:
      1. Do not show — show—user's last name, first name and patronymic of the user will be hidden;
         Image Added
      2. Surname — only Surname—only the user's surname will be displayed in the protocol;
      3. Surname and initials — the userinitials—user's last name and initials will be displayed;
      4. Full name — the username—user's full name (last name, first name and patronymic) will be displayed.
   2. Set the Hide object type checkbox (13) to checkbox to hide the Object type column in the protocol.
   3. Set the Hide event name checkbox (14) to checkbox to hide the Event column in the protocol.

   4. Set the Select last informational event if all events are processed (depends on their selection) checkbox (15) to select only the last informational event.
      Image Added

      Info
      title Note
      If there is at least one unprocessed event, the last informational event won't be selected.




   5. Set the Allow operator to clear the list of events checkbox (16)  to allow an operator possibility to clear the list of events. To clear the list of event click the right mouse button on some event and select the Clear list value.
      Image Removedevents, right-click anywhere in the protocol and select Clear list.
      Image Added
6. Specify the Event manager window display settings:
   1. From the Display window drop drop-down list (17), select the value determining the way of displaying the Event manager window:
      1. Always
       — to
      1. —to display the window all the time;
         Image Added
      2. On event
       — to
      1. —to activate window by event from device or hide it after finishing of operator actions.

   2. From theWindow display time drop-down list (18), select time period, during which the Event manager window will display after the event receiving.

      Info
      title Note
      Window display time should must be specified only if the On event way of window displaying is selected.




7. To save changes clickClick Apply Image Added button (19)to save the changes.

Configuring Specifying the  parameters of the Event manager module object is completedcomplete.
