In the Axxon One software package, several types of detection tools process incoming data:

...

Detection tools are configured using the Detection Tools tab interface (within the Settings tab). To configure detection tools, it is necessary to have the appropriate user rights.

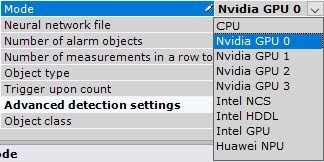

When configuring the detection tools, in the Mode field, select NVIDIA GPU one by one.

If only one NVIDIA GPU is installed, in the Mode field, select Nvidia GPU 0.

If more than one NVIDIA GPU is installed, in the Mode field, select the video card which should must be used for detection.

It is possible to change the order of NVIDIA GPUs display using the CUDA_DEVICE_ORDER system variable (see Appendix 109. Creating system variable) by specifying the required value:

1. The FASTEST_FIRST value numbers the GPUs from the most powerful card to the less powerful ones, i.e. that is, GPU 0 is the most powerful card.
2. The PCI_BUS_ID value numbers the GPUs according to the physical location of the cards in the PCI-E slots on the motherboard, i.e.that is, GPU 0 is the card in the highest slot.

...

1. Run a command line as an administrator.
2. In the command line type , enter the nvidia-smi query.
3. Press Enter.

...

For a video camera and its corresponding branch to appear in the detection tools list, the camera should must be enabled in Axxon One.

In the viewing tile Surveillance window, on the right side of the detection configuration window, you can set visual parameters.

...

The default system setting to a detection event is not to trigger any response actions. To set system response, create an automatic rule or a macro (see Configuring macros and counters, Automatic Rules).
