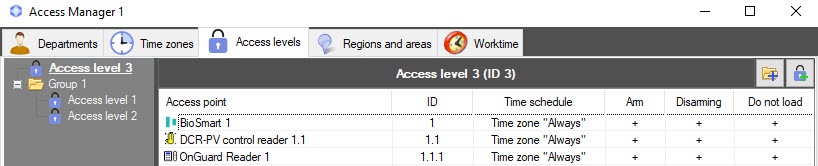

Editing of time zone involves an access level includes adding, deleting and changing links. To start editing of access levelsedit an access level, double-click the required access level in the list on the the Access levels tab or on double-click the name of access point in the table of access level parameters.
| Info | ||
|---|---|---|
| ||
The link to the corresponding access point will be selected in the opened Edit access level window window as you click on the name of the access point. The first link will be selected while clicking when you click the access level. |
As a result, the Edit access levels window will be opened. Working open. You can work with this window is the same as while when creating an access level - —see Create access levelsection.
In ACFA PSIM, you can assign one time schedule to several access points. To do this, do the following:
- In the Edit access level window, select the List option of data display.
- Hold down the Shift key and select all access points that you want to edit.
- From the Time schedule drop-down list, select the required time schedule. As a result, this time schedul will be assigned to all selected access points.
- Click the Save button to save the changes.
Assigning a time schedule to several access points is complete.
