The The Access Manager program module allows specifying you to specify cameras which that will be available in the Access Manager window for setting to assign photos to users and to configure these cameras.To select

Selecting available cameras

...

1. Go to the settings panel of the Access Manager object, to the Cameras tab.

2. In the Filter group, filter the cameras that you want to use in the Access Manager to assign photos to users:
   1. filter by status by selecting camera status from the Status drop-down list: Any, Used, Unused.
   2. filter by name by entering camera name in the Name field. The search starts with the first character.
   3. filter by ID by entering camera ID in the ID field.
   4. filter by server by selecting the required server from the Server drop-down list.
3. To collapse the camera structure, click the Collapse all button. To delete filtering results, click the Clear usage button.
4. Click the Apply button.

A list of cameras that are available in the Access Manager window to assign photos to users is specified.

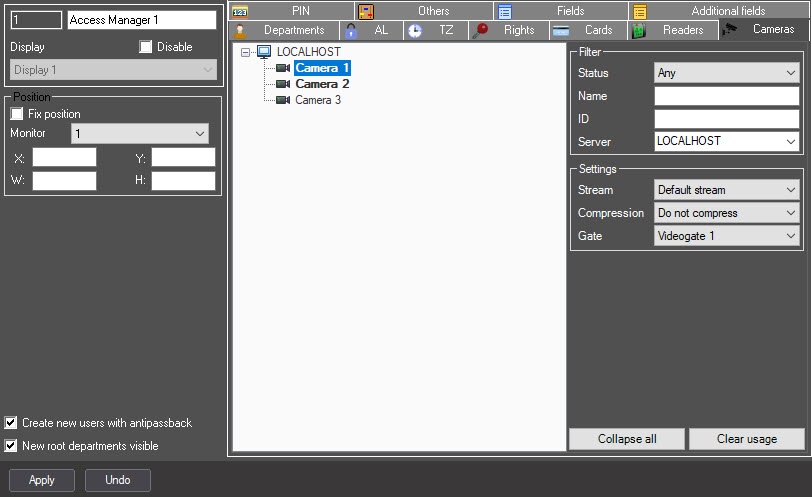

Configuring a camera

1. Select a camera that you want to configure
2. Go to the Cameras tab (1).
3. In the Use column, from the drop-down list, select the camera stream (2).


   Info
   title Note
   Camera objects are created on the Hardware tab of the System settings dialog window. Creating and configuring Camera is described in the Axxon PSIM software package. Installing and Configuring Security System Components Guide document. Current version of this document is available in the documentation repository.

4. From the Stream drop-down list, select camera stream.
5. From the Compression In the Compression column, from the drop-down list, select the video stream compression level (3).
6. If video from camera is to must be received using videogatevia Videogate, select the required Videogate object from the Gate drop-down list in the Gateway column (4).


   Info
   title Note
   The corresponding Videogate object should object must be configured for data transferring with this camera. Configuring the the Videogate object is described in the Axxon PSIM software package. Administrator's guide document. Current version of this document is available in the documentation repository.

7. To save changes click Click the Apply button (5).

...

1. to save the settings.
