Parameter name

Method of setting the parameter value

Parameter description

Representation

Default value

Value range

The Position group

1

Fix position

Set the checkbox

Set the checkbox if you want to specify the coordinates and the size of the Access Manager window on the screen and prohibit its movement

Boolean type

Set—position of the Access Manager window is fixed

Clear—position of the Access Manager window can be changed

2

Monitor

Select the value from the drop-down list

Sets the number of the monitor on which the Access Manager window will be displayed

List of available computer monitors

Monitor 1

Depends on the number of the connected computer monitors

3

X

Enter the value in the field

Sets the coordinate of the upper left corner of the Access Manager window along the horizontal X axis

% of screen width

0

From 0 to M*100, where M is a number of installed computer monitors

Y

Enter the value in the field

Sets the coordinate of the upper left corner of the Access Manager window along the vertical Y axis

% of screen height

0

From 0 to M*100, where M is a number of installed computer monitors

W

Enter the value in the field

Sets the width of the Access Manager window

% of screen width

0

From 0 to M*100, where M is a number of installed computer monitors

H

Enter the value in the field

Sets the height of the Access Manager window

% of screen height

0

From 0 to M*100, where M is a number of installed computer monitors

Sets the default value for the user antipassback parameter

Set—by default, the users are created with enabled antipassback

Clear—by default, the users are created with disabled antipassback

5

New root departments visible

Set the checkbox

Sets the availability of the created departments in the Access Manager that are located in the root of the hierarchy

Boolean type

Set

Set—new departments created in the root of the hierarchy are available in the Access Manager

Clear—new departments created in the root of the hierarchy aren't available in the Access Manager

№

Parameter name

Method of setting the parameter value

Parameter description

Representation

Default value

Value range

1

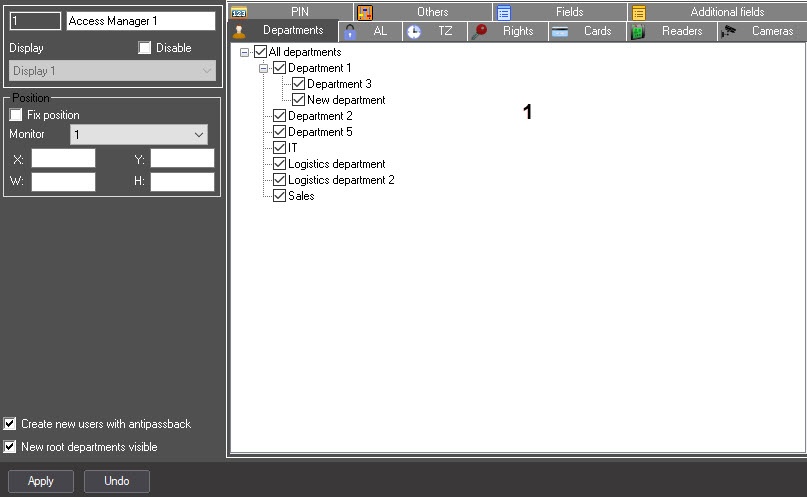

Departments tree

Set the checkbox

Sets the departments available in the Access Manager window

Boolean type

Set of boolean variables

Department will be available in the Access Manager window if you set the checkbox next to it

№

Parameter name

Method of setting the parameter value

Parameter description

Representation

Default value

Value range

1

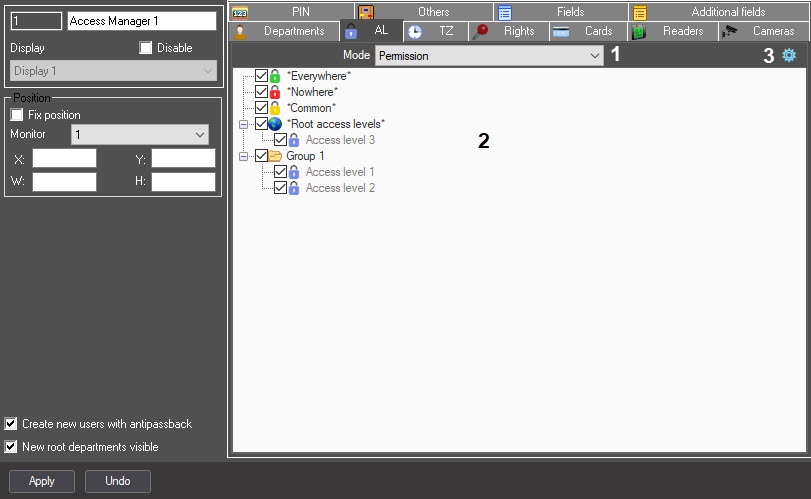

Prohibition—restrict the access to the selected access levels

Permission—allow the access to the selected access levels

Minimize—minimizes all access levels in the tree

Expand—expands all access levels in the tree

Select all—sets the checkboxes for all access levels

Remove all—clears checkboxes for all access levels

Search—opens the Access level search or folder search window for access level or folder searching by the name or identifier

№

Parameter name

Method of setting the parameter value

Parameter description

Representation

Default value

Value range

1

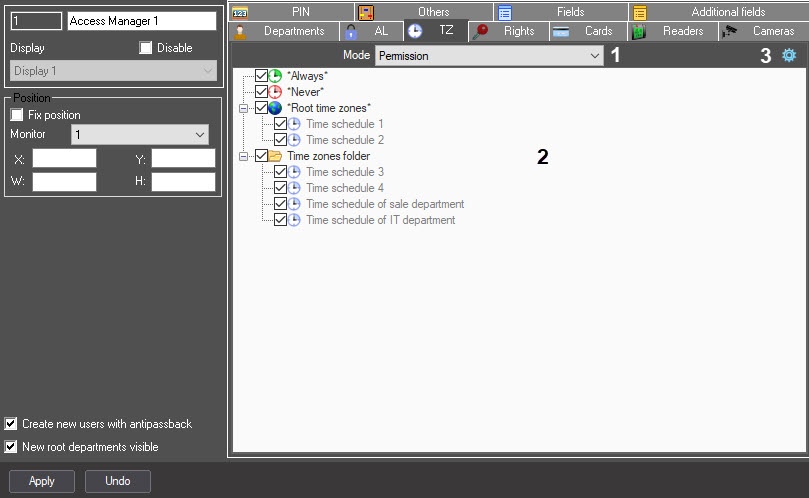

Prohibition—restrict the access to the selected time zones

Permission—allow the access to the selected time zones

Minimize—minimizes all time zones in the tree

Expand—expands all time zones in the tree

Select all—sets the checkboxes for all time zones

Remove all—clears the checkboxes for all time zones

Search—opens the Time zone search or folder search window for time zone or folder searching by the name or identifier

№

Parameter name

Method of setting the parameter value

Parameter description

Representation

Default value

Value range

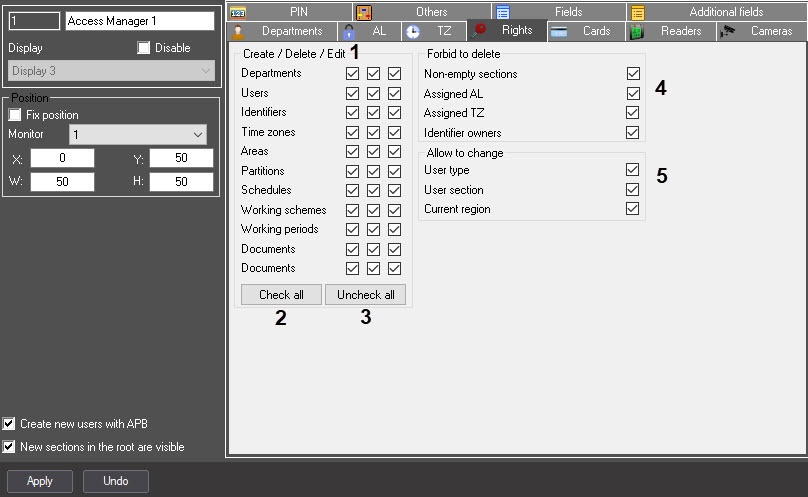

The Create / Delete / Edit group

1

Create

Set the checkbox

Sets possibility to create the corresponding object in the Access Manager window

Boolean type

Set

Set—creating the corresponding object from the Access Manager window is allowed

Clear—creating the corresponding object from the Access Manager window is forbidden

Delete

Set the checkbox

Sets possibility to delete the corresponding object in the Access Manager window

Boolean type

Set

Set—deleting the corresponding object from the Access Manager window is allowed

Clear—deleting the corresponding object from the Access Manager window is forbidden

Edit

Set the checkbox

Sets possibility to edit the corresponding object in the Access Manager window

Boolean type

Set

Set—editing the corresponding object from the Access Manager window is allowed

Clear—editing the corresponding object from the Access Manager window is forbidden

Set—non-empty departments cannot be deleted

Clear—non-empty departments can be deleted

Set—assigned access levels cannot be deleted

Clear—assigned access levels can be deleted

Set—assigned time zones cannot be deleted

Clear—assigned time zones can be deleted

Set—the user type change is allowed

Clear—the user type change is not allowed

Set—the user department change is allowed

Clear—the user department change is not allowed

Set—the current region change is allowed

Clear—the current region change is not allowed

№

Parameter name

Method of setting the parameter value

Parameter description

Representation

Default value

Value range

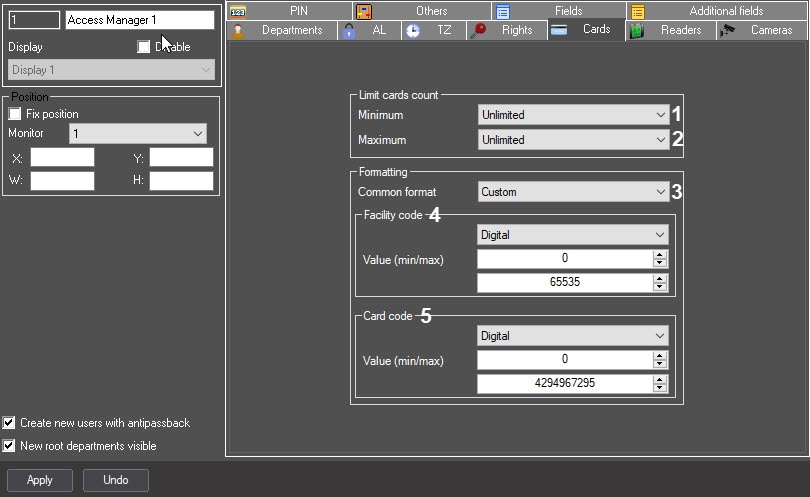

The Limit cards count group

1

• from 1 to 10—if the specified number of access cards is not assigned to the user, then this user cannot be saved in the Access Manager interface object

• Unlimited—an unlimited number of access cards can be assigned to the user

• Prohibited—the user cannot be assigned access cards. Buttons and function menu for assigning access cards will be inactive in the Access Manager interface object

• from 1 to 10—if the user is assigned more than the specified number of access cards, then this user cannot be saved in the Access Manager interface object

• Unlimited—an unlimited number of access cards can be assigned to the user

• Prohibited—the user cannot be assigned access cards. Buttons and function menu for assigning access cards will be inactive in the Access Manager interface object

• Default—allows setting an arbitrary value for the facility code and card code. Any letters, numbers and symbols are allowed

• Wiegand26—allows entering a 1-byte facility code (from 0 to 255), and a 2-byte card code (from 0 to 65535). If the limit of the code length is exceeded, the user cannot be saved

• Wiegand32—allows entering a 2-byte facility code (from 0 to 65535), and a 2-byte card code (from 0 to 65535). If the limit of the code length is exceeded, the user cannot be saved

• Wiegand26 (code only)—the facility code cannot be set, only a 3-byte card code is set (from 0 to 16777215)

• Wiegand32 (code only)—the facility code cannot be set, only a 4-byte card code is set (from 0 to 4294967295)

• TouchMemory—the facility code cannot be set, only the 8-byte card code is set. The format is hexadecimal, characters A, B, C, D, E, F are allowed. The code must be eight characters or longer. If the entered card code is less than eight characters long, the the higher order digits are filled with zeros

• Hikvision—the Hikvision ACS format. It always has a fixed H character in the facility code. The card code is specified by a string with a maximum length of 32 characters

• Configurable—allows setting the parameters of the facility code (4) and card code (5)

  • Fixed character—the specified single character will always be hard-coded, which cannot be changed in the Access Manager interface object

  • String—allows entering a string of 0 to 255 characters

  • Numeric—allows entering only numbers from 0 to 4294967295.

  • Hexadecimal—allows entering numbers in HEX format (numbers and characters A, B, C, D, E, F) from 0 to 8 bytes long.

  • Fixed number—similar to Fixed character, but instead of a character, a number between 0 and 4294967295 is used

  • Regular template—allows defining an access card template with specified restrictions, lengths and value ranges

№

Parameter name

Method of setting the parameter value

Parameter description

Representation

Default value

Value range

1

Confirm card entered by operator

Set the checkbox

Sets the requirement to confirm the card code entered by operator

Boolean type

Clear

Set—operator confirmation is required to assign access card to a user

Clear—operator confirmation is not required to assign access card to a user

2

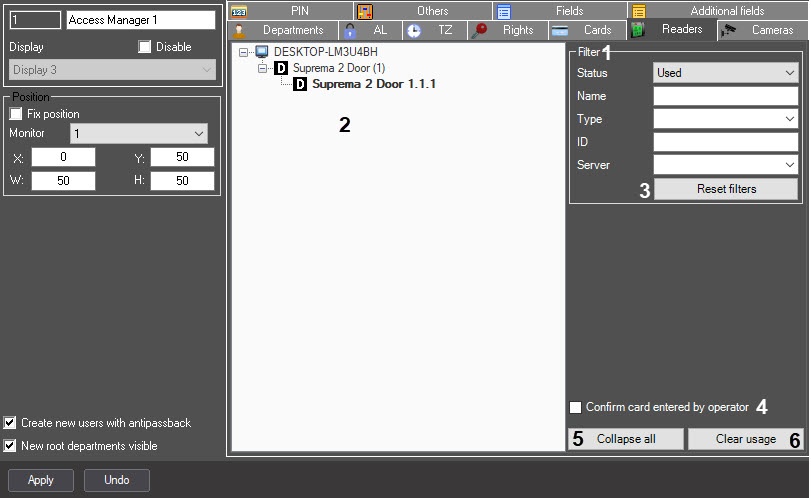

List of readers

Set the checkbox

Sets the list of control readers used for entering user access cards from the Access Manager

List of readers created in the system

Set of boolean variables

The reader will be available for entering the user access card using the control reader if checkbox is set next to the reader

№

Parameter name

Method of setting the parameter value

Parameter description

Representation

Default value

Value range

1

Status

Select the value from the list

Displays the list of statuses of the Camera object to search by the value of this field

List of statuses of the Camera object

Do not use

Any—all cameras created in the system

Used—only cameras that are used

Unused—only cameras that aren't used

Name

Enter the value in the field

Sets the name of the camera to search by the value of this field

Latin and Cyrillic alphabet, digits 0-9

-

-

ID

Enter the value in the field

Sets a unique camera identifier to search by the value of this field

Natural number series

-

-

Server

Select the value from the list

Sets the name of the server to search by the value of this field

List of the Server objects

-

Depends on the number of the Server objects

2

The tree of Cameras objects

Automatically

Displays the list of the Camera objects

List of the Camera objects filtered in step 1

-

Depends on the number of the Camera objects filtered in step 1

The Settings group

3

Select the value from the list

Sets the camera stream that will be used to assign photos to users

Do not use

Do not use—camera cannot be used to input a photo

Default stream—the default stream of a camera will be used

Stream #1—the first stream of a camera will be used

Stream #2—the second stream of a camera will be used

Stream #3—the third stream of a camera will be used

Stream #4—the forth stream of a camera will be used

Do not compress—compression of the camera video stream is disabled

Level 1—the lowest level of video stream compression

....

Level 5—the highest level of video stream compression

Gate

Select the value from the list

Sets the Videogate object used for receiving video signal from camera

List of the Videogate objects created in the system

-

Depends on the number of the Videogate objects created in the system

4

Collapse all

Click the button

Collapses the list of cameras

-

-

-

5

Clear usage

Click the button

Resets all camera settings to default values

-

-

-

Do not mask—PIN code isn’t masked with dots

Mask view—PIN code is masked with dots when reading user data

Mask always—PIN code is always masked with dots

Common—any variant of the PIN code is allowed. It is allowed to enter symbols, letters and numbers. If you select this mode, no further settings are required

3 digits—PIN code must contain three digits.

...

9 digits—PIN code must contain nine digits.

Range—PIN code is within the specified numeric range

Sets the mode of setting zeros at the beginning of the PIN code.

The setting is made for all modes except for the Common mode

Ignore—leading zeros aren’t considered as characters

Required—leading zeros are considered as characters

Auto—leading zeros are entered automatically, completing the PIN code to the required number of characters

Set—the required check is enabled

Clear—the required check is disabled

Set—leading zeros are disregarded

Clear—leading zeros aren't disregarded

Set—search in the entire PIN code

Clear—search only from the beginning

Set—the required check is enabled

Clear—the required check is disabled

Set—leading zeros are disregarded

Clear—leading zeros aren't disregarded

Set—search in the entire PIN code

Clear—search only from the beginning

Set—the required check is enabled

Clear—the required check is disabled

Both—sequences of characters are checked in increasing (increment) and decreasing (decrement) order.

Increment—sequences of characters are checked in increasing order

Decrement—sequences of characters are checked in decreasing order

Clear—leading zeros aren't disregarded

Set—search in the entire PIN code

Clear—search only from the beginning

Set—the required check is enabled

Clear—the required check is disabled

№

Parameter name

Method of setting the parameter value

Parameter description

Representation

Default value

Value range

1

Full name

Select the value from the list

Displays a list of criteria for restricting duplicate user parameters by name, surname, patronymic

List of available combinations

Not used

Surname, name—added users are checked for duplicate name and surname

Surname, name, patronymic—added users are checked for duplicate name, surname, patronymic

Checks the added users for duplicate external ID

Set—added users are checked for duplicate external ID

Clear—added users aren't checked for duplicate external ID

Set—added users are checked for duplicate PIN code

Clear—added users aren't checked for duplicate PIN code

Checks the added users for duplicate license plates

Set—added users are checked for duplicate license plates

Clear—added users aren't checked for duplicate license plates

Set—added users are checked for duplicate emails

Clear—added users aren't checked for duplicate emails

2

The Redefine DB authorization parameters—this group of settings is currently rudimentary

The Field highlighting settings group

3

4

Depends on the number of the created Server objects

5

Depends on the Face Recognition Server objects created in the system

-

№

Parameter name

Method of setting the parameter value

Parameter description

Representation

Default value

Value range

1

Edit—the field will be displayed with the possibility of editing

Hidden—the field will be hidden

Read only—the field won't be available for editing

Mandatory—this field is mandatory when creating and editing a user in the Access Manager module. If you don't fill out the parameter, the field will be highlighted with red asterisks

№

Parameter name

Method of setting the parameter value

Parameter description

Representation

Default value

Value range

1

Edit—the field will be displayed with the possibility of editing

Hidden—the field will be hidden

Read only—the field won't be available for editing

Mandatory—this field is mandatory when creating and editing a user in the Access Manager module. If you don't fill out the parameter, the field will be highlighted with red asterisks
