TheObjects corresponding to the BACnet devices are created automatically during the devices search (see Activation of the BACnet Wrapper integration module and search for BACnet devices). No additional configuration is required.

To add a BACnet device manually or to configure a a BACnet device manually, do the following:

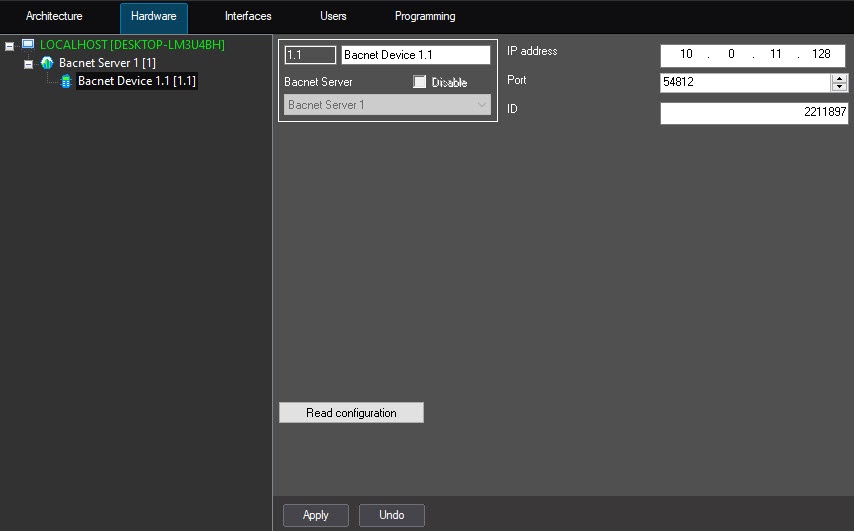

1. Go to the the settings panel of the Bacnet Device object settings panel, which that is created on the basis of the the Bacnet Server object.
   Image Modified
2. In the IP address field (1) enter , enter the IP address of the BACnet device.
3. In the Port field (2) enter , enter the port of the BACnet device.
4. In the ID field (3) enter , enter the identification number of the BACnet device.
5. Click the Apply button (4) to button to save the changes.

Configuring the Configuration of the BACnet device is complete.
