№ | Parameter name | Method of setting the parameter value | Parameter description | Representation | Default value | Value range |
1 | Mode | Select the value from the list | Sets the access restriction mode to the access levels in the Access Manager interface object | -NA | Prohibition | Prohibition—restrict the access to the selected access levels Permission—allow the access to the selected access levels |
| 2 | Access levels tree | Set the checkbox | Specifies the access levels, the access to which must be configured | Boolean type | Set of boolean variables | If the checkbox is set for the access level, the selected access restriction mode will be applied to it in the Access Manager interface object |
| 3 | The action button | Select the value from the list | Opens a list of actions for managing the access levels tree | -NA- | NA | Minimize—minimizes all access levels in the tree Expand—expands all access levels in the tree Select all—sets the checkboxes for all access levels Remove all—clears checkboxes for all access levels Search—opens the Access level search or folder search window for access level or folder searching by the name or identifier |
...
№ | Parameter name | Method of setting the parameter value | Parameter description | Representation | Default value | Value range |
1 | Mode | Select the value from the list | Sets the access restriction mode to the time zones in the Access Manager interface object | -NA | Prohibition | Prohibition—restrict the access to the selected time zones Permission—allow the access to the selected time zones |
| 2 | Time zones tree | Set the checkbox | Specifies the time zones, the access to which must be configured | Boolean type | Set of boolean variables | If the checkbox is set for the time zone, the selected access restriction mode will be applied to it in the Access Manager interface object |
| 3 | The action button | Select the value from the list | Opens a list of actions for managing the time zones tree | -NA- | NA | Minimize—minimizes all time zones in the tree Expand—expands all time zones in the tree Select all—sets the checkboxes for all time zones Remove all—clears the checkboxes for all time zones Search—opens the Time zone search or folder search window for time zone or folder searching by the name or identifier |
...
№ | Parameter name | Method of setting the parameter value | Parameter description | Representation | Default value | Value range |
The Create / Delete / Edit group | ||||||
1 | Create | Set the checkbox | Sets possibility to create the corresponding object in the Access Manager window | Boolean type | Set | Set—creating the corresponding object from the Access Manager window is allowed Clear—creating the corresponding object from the Access Manager window is forbidden |
Delete | Set the checkbox | Sets possibility to delete the corresponding object in the Access Manager window | Boolean type | Set | Set—deleting the corresponding object from the Access Manager window is allowed Clear—deleting the corresponding object from the Access Manager window is forbidden | |
Edit | Set the checkbox | Sets possibility to edit the corresponding object in the Access Manager window | Boolean type | Set | Set—editing the corresponding object from the Access Manager window is allowed Clear—editing the corresponding object from the Access Manager window is forbidden | |
| 2 | Check all | Click the button | Sets all checkboxes in the Create / Delete / Edit group | -NA | -NA | -NA |
| 3 | Uncheck all | Click the button | Clears all checkboxes in the Create / Delete / Edit group | -NA | -NA | -NA |
| The Forbid to delete group | ||||||
| 4 | Non-empty departments | Set the checkbox | Forbids to delete departments if there are users in them | Boolean type | Clear | Set—non-empty departments cannot be deleted Clear—non-empty departments can be deleted |
| Assigned AL | Set the checkbox | Forbids to delete access levels if they are assigned to a user or department | Boolean type | Clear | Set—assigned access levels cannot be deleted Clear—assigned access levels can be deleted | |
| Assigned TZ | Set the checkbox | Forbids to delete time zones if they are assigned to an access levels | Boolean type | Clear | Set—assigned time zones cannot be deleted Clear—assigned time zones can be deleted | |
| The Allow to change group | ||||||
| 5 | User type | Set the checkbox | Enables the possibility to change the user type | Boolean type | Clear | Set—the user type change is allowed Clear—the user type change is not allowed |
| User department | Set the checkbox | Enables the possibility to change the user department | Boolean type | Clear | Set—the user department change is allowed Clear—the user department change is not allowed | |
| Current region | Set the checkbox | Enables the possibility to change the current region | Boolean type | Clear | Set—the current region change is allowed Clear—the current region change is not allowed | |
...
№ | Parameter name | Method of setting the parameter value | Parameter description | Representation | Default value | Value range |
| The Filter group | ||||||
1 | Status | Select the value from the list | Displays the list of statuses of the Camera object to search by the value of this field | List of statuses of the Camera object | Do not use | Any—all cameras created in the system Used—only cameras that are used Unused—only cameras that aren't used |
Name | Enter the value in the field | Sets the name of the camera to search by the value of this field | Latin and Cyrillic alphabet, digits 0-9 | -NA | -NA | |
ID | Enter the value in the field | Sets a unique camera identifier to search by the value of this field | Natural number series | -NA | -NA | |
Server | Select the value from the list | Sets the name of the server to search by the value of this field | List of the Server objects | -NA | Depends on the number of the Server objects | |
2 | The tree of Cameras objects | Automatically | Displays the list of the Camera objects | List of the Camera objects filtered in step 1 | -NA | Depends on the number of the Camera objects filtered in step 1 |
The Settings group | ||||||
3 | Stream | Select the value from the list | Sets the camera stream that will be used to assign photos to users | -NA | Do not use | Do not use—camera cannot be used to input a photo Default stream—the default stream of a camera will be used Stream #1—the first stream of a camera will be used Stream #2—the second stream of a camera will be used Stream #3—the third stream of a camera will be used Stream #4—the forth stream of a camera will be used |
| Compression | Select the value from the list | Sets the compression level of the selected video stream | List of compression options | Do not compress | Do not compress—compression of the camera video stream is disabled Level 1—the lowest level of video stream compression .... Level 5—the highest level of video stream compression | |
Gate | Select the value from the list | Sets the Videogate object used for receiving video signal from camera | List of the Videogate objects created in the system | -NA | Depends on the number of the Videogate objects created in the system | |
4 | Collapse all | Click the button | Collapses the list of cameras | -NA | -NA | -NA |
5 | Clear usage | Click the button | Resets all camera settings to default values | -NA | -NA | -NA |

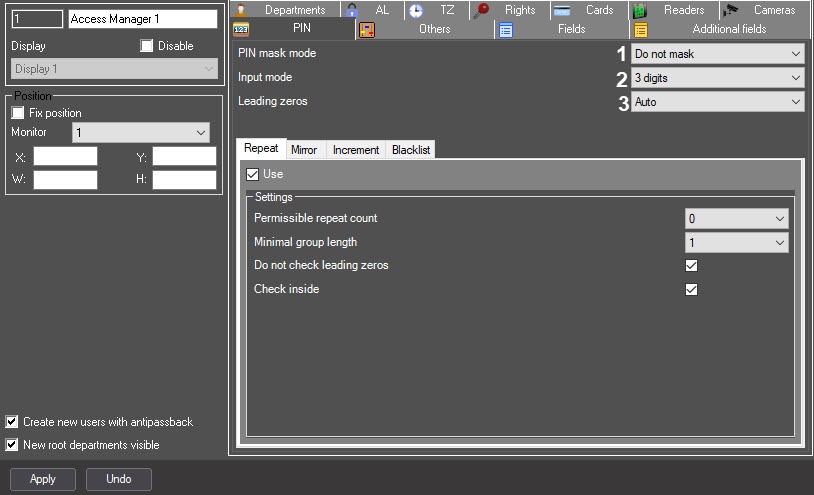

The PIN tab
| № | Parameter name | Method of setting the parameter value | Parameter description | Representation | Default value | Value range |
| 1 | PIN mask mode | Select the value from the list | Sets the mask mode of the PIN code | List of options for PIN code masking | Mask always | Do not mask—PIN code isn’t masked with dots Mask view—PIN code is masked with dots when reading user data Mask always—PIN code is always masked with dots |
| 2 | Input mode | Select the value from the list | Sets the input mode of the PIN code | List of PIN code input modes | Common | Common—any variant of the PIN code is allowed. It is allowed to enter symbols, letters and numbers. If you select this mode, no further settings are required 3 digits—PIN code must contain three digits. ... 9 digits—PIN code must contain nine digits. Range—PIN code is within the specified numeric range |
| 3 | Leading zeros | Select the value from the list | Sets the mode of setting zeros at the beginning of the PIN code. The setting is made for all modes except for the Common mode | List of modes for setting zeros at the beginning of the PIN code | Ignore | Ignore—leading zeros aren’t considered as characters Required—leading zeros are considered as characters Auto—leading zeros are entered automatically, completing the PIN code to the required number of characters |
The Repeat tab
| ||||||
| 1 | Use | Set the checkbox | Enables the required PIN check | Boolean type | Clear | Set—the required check is enabled Clear—the required check is disabled |
| 2 | Permissible repeat count | Select the value from the list | Sets the maximum number of allowed character repetitions in the PIN code | Digits 0–7 | 0 | Depends on the selected input mode |
| 3 | Minimal group length | Select the value from the list | Sets the number of characters in the group to search for repetitions | Digits 1–8 | 1 | Depends on the selected input mode |
| 4 | Do not check leading zeros | Set the checkbox | Disregards leading zeros as characters when entering the PIN code | Boolean type | Clear | Set—leading zeros are disregarded Clear—leading zeros aren't disregarded |
| 5 | Check inside | Set the checkbox | Enables the corresponding search in the entire PIN code | Boolean type | Clear | Set—search in the entire PIN code Clear—search only from the beginning |
The Mirror tab
| ||||||
| 1 | Use | Set the checkbox | Enables the required PIN check | Boolean type | Clear | Set—the required check is enabled Clear—the required check is disabled |
| 2 | Minimal side length | Select the value from the list | Sets the number of characters in the group to search for repetitions in the mirror image | Digits 1–8 | 1 | Depends on the selected input mode |
| 3 | Do not check leading zeros | Set the checkbox | Disregards leading zeros as characters when entering the PIN code | Boolean type | Clear | Set—leading zeros are disregarded Clear—leading zeros aren't disregarded |
| 4 | Check inside | Set the checkbox | Enables the corresponding search in the entire PIN code | Boolean type | Clear | Set—search in the entire PIN code Clear—search only from the beginning |
The Increment tab
| ||||||
| 1 | Use | Set the checkbox | Enables the required PIN check | Boolean type | Clear | Set—the required check is enabled Clear—the required check is disabled |
| 2 | Permissible ‘stair’ length | Select the value from the list | Sets the number of characters in increasing/decreasing order from which the search will be performed | Digits 1–8 | 1 | Depends on the selected input mode |
| 3 | Checking mode | Select the value from the list | Sets the checking mode of the PIN code character sequence | List of checking modes of the PIN code character sequence | Both | Both—sequences of characters are checked in increasing (increment) and decreasing (decrement) order. Increment—sequences of characters are checked in increasing order Decrement—sequences of characters are checked in decreasing order |
| 4 | Do not check leading zeros | Set the checkbox | Disregards leading zeros as characters when entering the PIN code | Boolean type | Clear | Set—leading zeros are disregarded Clear—leading zeros aren't disregarded |
| 5 | Check inside | Set the checkbox | Enables the corresponding search in the entire PIN code | Boolean type | Clear | Set—search in the entire PIN code Clear—search only from the beginning |
The Blacklist tab
| ||||||
| 1 | Use | Set the checkbox | Enables the required PIN check | Boolean type | Clear | Set—the required check is enabled Clear—the required check is disabled |
| 2 | List of PIN codes | Using the Add button | Contains the list of PIN codes prohibited for use | String | -NA- | NA |
| 3 | The Add button | Click the button | Opens the form for adding a PIN code to the blacklist | -NA- | NA | -NA |
| 4 | The Delete button | Click the button | Removes the PIN code from the blacklist | -NA- | NA | -NA |
The Others tab
№ | Parameter name | Method of setting the parameter value | Parameter description | Representation | Default value | Value range |
| The Criteria of user parameters duplicates group | ||||||
1 | Full name | Select the value from the list | Displays a list of criteria for restricting duplicate user parameters by name, surname, patronymic | List of available combinations | Not used | Not used—added users are not checked for duplicate name, surname, patronymic Surname, name—added users are checked for duplicate name and surname Surname, name, patronymic—added users are checked for duplicate name, surname, patronymic |
| External ID | Set the checkbox | Checks the added users for duplicate external ID | Boolean type | Clear | Set—added users are checked for duplicate external ID Clear—added users aren't checked for duplicate external ID | |
| PIN code | Set the checkbox | Checks the added users for duplicate PIN code | Boolean type | Clear | Set—added users are checked for duplicate PIN code Clear—added users aren't checked for duplicate PIN code | |
| Vehicle LP | Set the checkbox | Checks the added users for duplicate license plates | Boolean type | Clear | Set—added users are checked for duplicate license plates Clear—added users aren't checked for duplicate license plates | |
| Set the checkbox | Checks the added users for duplicate emails | Boolean type | Clear | Set—added users are checked for duplicate emails Clear—added users aren't checked for duplicate emails | ||
2 | The Redefine DB authorization parameters—this group of settings is currently rudimentary | |||||
The Field highlighting settings group | ||||||
3 | Cards not yet valid [0] | Click the button | Sets the color highlighting of the Cards not yet valid field | NA | NA | NA |
| Cards expired [0] | Click the button | Sets the color highlighting of the Cards expired field | NA | NA | NA | |
| User is locked [0] | Click the button | Sets the color highlighting of the User is locked field | NA | NA | NA | |
4 | Master server | Select the value from the list | Displays the list of the Server objects | List of the Server objects | -NA | Depends on the number of the created Server objects |
| The Interaction with Face Recognition Server group | ||||||
5 | Server | Select the value from the list | Displays the list of the Face Recognition Server objects created on the Hardware tab of the System settings dialog window | List of the Face Recognition Server objects created in the system | -NA | Depends on the Face Recognition Server objects created in the system |
| Port | Enter the value in the field | Sets the communication port to connect to the Face Recognition Server via the REST API. The default value is 10000 | Natural number series | 0 | -NA | |
The Fields tab
№ | Parameter name | Method of setting the parameter value | Parameter description | Representation | Default value | Value range |
1 | Name of field | Automatically | Displays the list of standard user fields | -NA | Names of the standard user fields | -NA |
| 2 | Drop-down list | Select the value from the list | Sets the permissions to edit, specify or hide the standard fields from the Access Manager interface object | -NA | Depends on the standard field | Edit—the field will be displayed with the possibility of editing Hidden—the field will be hidden Read only—the field won't be available for editing Mandatory—this field is mandatory when creating and editing a user in the Access Manager module. If you don't fill out the parameter, the field will be highlighted with red asterisks |
| 3 | Category | Enter the value in the field | Sets the name of the category to which the standard field belongs | -NA | Depends on the standard field | Any value |
...
№ | Parameter name | Method of setting the parameter value | Parameter description | Representation | Default value | Value range |
1 | Name of field | Automatically | Displays the list of additional user fields | -NA | Names of the additional user fields | -NA |
| 2 | Drop-down list | Select the value from the list | Sets the permissions to edit, specify or hide the additional fields from the Access Manager interface object | -NA | Depends on the additional field | Edit—the field will be displayed with the possibility of editing Hidden—the field will be hidden Read only—the field won't be available for editing Mandatory—this field is mandatory when creating and editing a user in the Access Manager module. If you don't fill out the parameter, the field will be highlighted with red asterisks |
| 3 | Category | Enter the value in the field | Sets the name of the category to which the additional field belongs | -NA- | NA | Any value |
