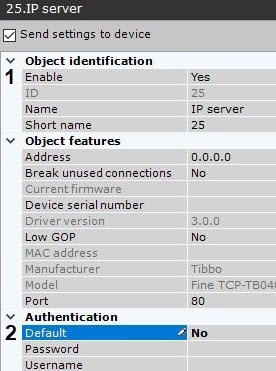

  1. Select the IP Server.
  2. Activate the object (1).
  3. In the Authentication parameter group, set Default to No (2).
  4. Select a Channel object.
  5. Activate the object (1).
  6. Set permissible ranges for temperature (in centigrade) and relative humidity (in per cent) (2). If a reading falls out of the range, the corresponding Input (sensor) triggers generates an alarmevent.
  7. Set the check period in milliseconds (3).

  8. If you need to report sensors statuses when readings are within the range, set Yes for Always report other sensors status (4). In this case, the following records will appear in the log file in specified intervals of time (see paragraph step 7):

    Code Block
    Special humidity ray#16 changed status to: false ,Sensor value: 16,8 Correct range [15, 58]. Time: …..
Special temperature ray#17 changed status to: false ,Sensor value: 29,8 Correct range [20, 60]. Time: …..


  9. Click the Apply button.

Now, the board is configured. Current temperature/humidity value will be displayed next to input 's icon on the Map (see Displaying device status).
