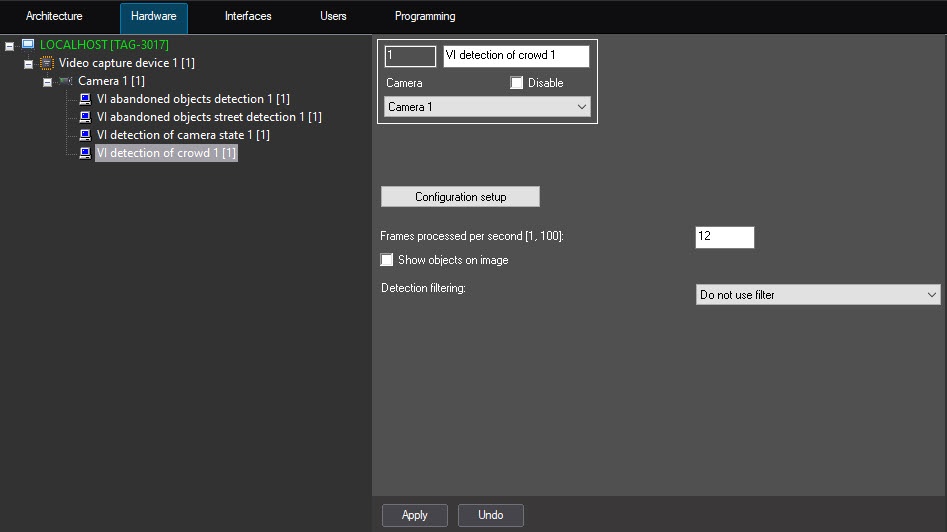

1. Go to the settings panel of the VideoIntellect detection of crowd object, which is created on the basis of the Camera object on the Hardware tab of the System settings dialog box.

2. In the Frames processed per second [0.0161, 100] field, specify the number of frames in the range 1-100 that the detection tool processes per second. With a minimum value of 0.016, the video image is analyzed once per minute, with a maximum value of 100—once every one hundredth of a second. To work with the detection tool, we recommend using the default value of 12 FPS. The default value is 12 (recommended). You can specify only a positive integer. If you enter a number outside the range 1-100, it is automatically changed to the nearest border value. If you leave the field blank, it automatically returns to the default value when you save the settings.
3. In the Scale frame to (pix.) field, specify in the range 480-960 the size of the frame in pixels after scaling. The default value is 640.
4. Set the Show objects on image checkbox if it is necessary to highlight the detection zone with a red border on the Video surveillance monitor when a crowd detection event is generated. The detection zone is specified in the detection tool settings on the Select area tab.
5. From the Detection filtering drop-down list, select the filter that you want to use: Object filter, Object counting filter, Do not use filter (default). You can configure filters on the Postprocessing tab of the Detection settings window.
6. Click the Configuration setup button. As a result, the Detection settings window opens.

...

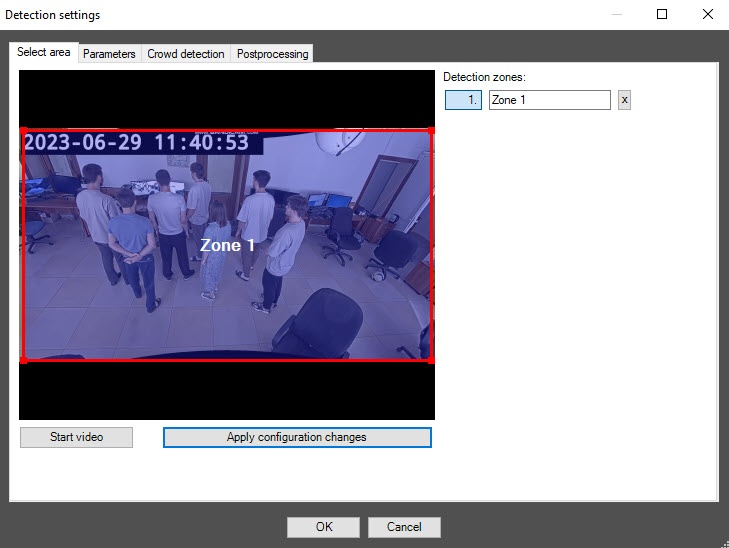

1. In the Detection settings window, on the Select area tab, click the Stop video button to pause the video.Image Removed
2. By default, one detection zone is highlighted the entire frame is outlined with a red border as a detection zone. You can add more zones with the mouse, as well as change the borders of a zone with the mouse by clicking its number in the list on the right. Number of a detection zone is highlighted in blue. A new zone is added to the list to the right of the video image.
   Image RemovedImage Added
3. To rename a detection zone, enter a new name in the field to the right of its number. The new name appears in the zone caption on the video image.


   Info
   title Note
   You can specify only one detection zone. To delete a detection zone, click the the  button to the right of the zone name.

4. To save all changes, click the Apply configuration changes button.
5. To start video playback, click the Start video button.

...
