№	Parameter name	Method of setting the parameter value	Parameter description	Representation	Default value	Value range
The Create / Delete / Edit group
1	Create	Set the checkbox	Sets possibility Enables the ability to create the corresponding object in the Access Manager window	Boolean type	Set	Set—creating the corresponding object from the Access Manager window is allowed Clear—creating the corresponding object from the Access Manager window is forbidden
	Delete	Set the checkbox	Sets possibility to delete the Enables the ability to delete the corresponding object in the the Access Manager window	Boolean type	Set	Set—deleting the corresponding object from the Access Manager window is allowed Clear—deleting the corresponding object from the Access Manager window is forbidden
	Edit	Set the checkbox	Sets possibility to edit the Enables the ability to edit the corresponding object in the the Access Manager window	Boolean type	Set	Set—editing the corresponding object from the Access Manager window is allowed Clear—editing the corresponding object from the Access Manager window is forbidden
2	Check all	Click the button	Sets all checkboxes in the Create / Delete / Edit group	NA	NA	NA
3	Uncheck all	Click the button	Clears all checkboxes in the Create / Delete / Edit group	NA	NA	NA
The Forbid to delete group
4	Non-empty departments	Set the checkbox	Forbids to delete departments if there are users in them	Boolean type	Clear	Set—non-empty departments cannot be deleted Clear—non-empty departments can be deleted
	Assigned AL	Set the checkbox	Forbids to delete access levels if they are assigned to a user or department	Boolean type	Clear	Set—assigned access levels cannot be deleted Clear—assigned access levels can be deleted
	Assigned TZ	Set the checkbox	Forbids to delete time zones if they are assigned to an access levels	Boolean type	Clear	Set—assigned time zones cannot be deleted Clear—assigned time zones can be deleted
The Allow to change group
5	User type	Set the checkbox	Enables the possibility ability to change the user type	Boolean type	Clear	Set—the user type change is allowed Clear—the user type change is not allowed
	User department	Set the checkbox	Enables the possibility ability to change the user department	Boolean type	Clear	Set—the user department change is allowed Clear—the user department change is not allowed
	Current region	Set the checkbox	Enables the possibility ability to change the current region	Boolean type	Clear	Set—the current region change is allowed Clear—the current region change is not allowed

...

№	Parameter name	Method of setting the parameter value	Parameter description	Representation	Default value	Value range
The Limit cards count group
1	Minimum	Select the value from the list	Sets the minimum number of access cards that must be assigned to the user	List of values of the minimum number of access cards of a user	Unlimited	from 1 to 10—if the specified number of access cards is not assigned to the user, then this user cannot be saved in the Access Manager interface object Unlimited—an unlimited number of access cards can be assigned to the user Prohibited—the user cannot be assigned access cards. Buttons and function menu for assigning access cards will be inactive in the Access Manager interface object
2	Maximum	Select the value from the list	Sets the maximum number of access cards that must be assigned to the user	List of values of the maximum number of access cards of a user	Unlimited	from 1 to 10—if the user is assigned more than the specified number of access cards, then this user cannot be saved in the Access Manager interface object Unlimited—an unlimited number of access cards can be assigned to the user Prohibited—the user cannot be assigned access cards. Buttons and function menu for assigning access cards will be inactive in the Access Manager interface object
The Formatting group
3	Common format	Select the value from the list	Sets the format of access cards	List of values of access cards fprmats	Default	Default—allows setting an arbitrary value for the facility code and card code. Any letters, numbers digits and symbols characters are allowed Wiegand26—allows entering a 1-byte facility code (from 0 to 255), and a 2-byte card code (from 0 to 65535). If the limit of the code length is exceeded, the user cannot be saved Wiegand32—allows entering a 2-byte facility code (from 0 to 65535), and a 2-byte card code (from 0 to 65535). If the limit of the code length is exceeded, the user cannot be saved Wiegand26 (code only)—the facility code cannot be set, only a 3-byte card code is set (from 0 to 16777215) Wiegand32 (code only)—the facility code cannot be set, only a 4-byte card code is set (from 0 to 4294967295) TouchMemory—the facility code cannot be set, only the 8-byte card code is set. The format is hexadecimal, characters A, B, C, D, E, F are allowed. The code must be eight characters or longer. If the entered card code is less than eight characters long, the the higher order digits are filled with zeros Hikvision—the Hikvision ACS format. It always has a fixed H character in the facility code. The card code is specified by a string with a maximum length of 32 characters Configurable—allows setting the parameters of the facility code (4) and card code (5) Fixed character—the specified single character will always be hard-coded, which cannot be changed in the Access Manager interface object String—allows entering a string of 0 to 255 characters Numeric—allows entering only numbers digits from 0 to 4294967295. Hexadecimal—allows entering numbers digits in HEX format (numbers digits and characters A, B, C, D, E, F) from 0 to 8 bytes long. Fixed number—similar to Fixed character, but instead of a character, a number digit between 0 and 4294967295 is used Regular template—allows defining an access card template with specified restrictions, lengths and value ranges

...

№	Parameter name	Method of setting the parameter value	Parameter description	Representation	Default value	Value range
1	The Filter group
	Status	Select the value from the list	Dispays a list of control reader statuses to search by the value of this field	List of control reader statuses	Any	Any—all control readers created in the system Used—only used control readers Not used—only control readers that are not used
	Name	Enter the value in the field	Sets the name of the control reader to search by the value of this field	Latin and Cyrillic alphabet, digits 0-9	NA	NA
	ID	Enter the value in the field	Sets the unique identifier of the control reader to search by the value of this field	Natural number series	NA	NA
	Server	Select the value from the list	Sets the name of the server to search by the value of this field	List of the Server objects	NA	Depends on the number of the Server objects
2	List of control readers	Automatically	Displays the list of control readers used for entering user access cards from the Access Manager	List of readers filtered in step 1	NA	If you select the reader, it is available for entering the user access card or entering the user biometric data
3	Reset filters	Click the button	Resets filters and search result	NA	NA	NA
4	Confirm card entered by operator	Set the checkbox	Sets the requirement to confirm the card code entered by operator	Boolean type	Confirm card entered by operator	Set the checkbox	Sets the requirement to confirm the card code entered by operator	Boolean type	Clear	Set—operator confirmation is required to assign access card to a user Clear—operator confirmation is not required to assign access card to a user
5	Collapse all	Click the button	Collapses	2	List of readers	Set the checkbox	Sets the list of control readers used for entering user access cards from the Access Managerreaders	NA	NA	NA
6	Clear usage	Click the button	Resets the settings of the control reader list to default values	NA	NA	NA	List of readers created in the system	Set of boolean variables	The reader will be available for entering the user access card using the control reader if checkbox is set next to the reader

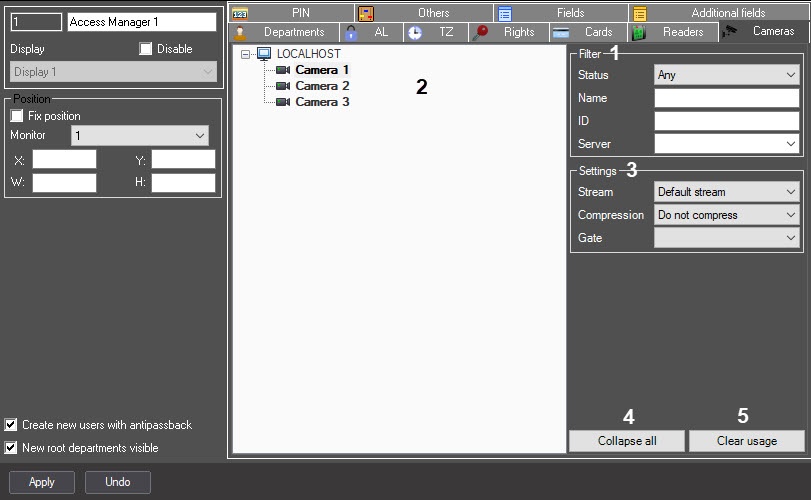

The Cameras tab

№	Parameter name	Method of setting the parameter value	Parameter description	Representation	Default value	Value range
The Filter group
1	Status	Select the value from the list	Displays the list of statuses of the Camera object to search by the value of this field	List of statuses of the Camera object	Do not use	Any—all cameras created in the system Used—only cameras that are used Unused—only cameras that aren't used
	Name	Enter the value in the field	Sets the name of the camera to search by the value of this field	Latin and Cyrillic alphabet, digits 0-9	NA	NA
	ID	Enter the value in the field	Sets a unique camera identifier to search by the value of this field	Natural number series	NA	NA
	Server	Select the value from the list	Sets the name of the server to search by the value of this field	List of the Server objects	NA	Depends on the number of the Server objects
2	The tree of Cameras objects	Automatically	Displays the list of the Camera objects	List of the Camera objects filtered in step 1	NA	Depends on the number of the Camera objects filtered in step 1
The Settings group
3	Stream	Select the value from the list	Sets the camera stream that will be used to assign photos to users	NA	Do not use	Do not use—camera cannot be used to input a photo Default stream—the default stream of a camera will be used Stream #1—the first stream of a camera will be used Stream #2—the second stream of a camera will be used Stream #3—the third stream of a camera will be used Stream #4—the forth stream of a camera will be used
	Compression	Select the value from the list	Sets the compression level of the selected video stream	List of compression options	Do not compress	Do not compress—compression of the camera video stream is disabled Level 1—the lowest level of video stream compression .... Level 5—the highest level of video stream compression
	Gate	Select the value from the list	Sets the Videogate object used for receiving video signal from camera	List of the Videogate objects created in the system	NA	Depends on the number of the Videogate objects created in the system
4	Collapse all	Click the button	Collapses the list of cameras	NA	NA	NA
5	Clear usage	Click the button	Resets all camera settings to default values	NA	NA	NA

...

№	Parameter name	Method of setting the parameter value	Parameter description	Representation	Default value	Value range
1	The Criteria of user parameters duplicates group
	Full name	Select the value from the list	Displays a list of criteria for restricting duplicate user parameters by name, surname, patronymic	List of available combinations	Not used	Not used—added users are not checked for duplicate name, surname, patronymic Surname, name—added users are checked for duplicate name and surname Surname, name, patronymic—added users are checked for duplicate name, surname, patronymic
	External ID	Set the checkbox	Checks the added users for duplicate external ID	Boolean type	Clear	Set—added users are checked for duplicate external ID Clear—added users aren't checked for duplicate external ID
	PIN code	Set the checkbox	Checks the added users for duplicate PIN code	Boolean type	Clear	Set—added users are checked for duplicate PIN code Clear—added users aren't checked for duplicate PIN code
	Vehicle LP	Set the checkbox	Checks the added users for duplicate license plates	Boolean type	Clear	Set—added users are checked for duplicate license plates Clear—added users aren't checked for duplicate license plates
	Email	Set the checkbox	Checks the added users for duplicate emails	Boolean type	Clear	Set—added users are checked for duplicate emails Clear—added users aren't checked for duplicate emails
	Access Points in the AL list	Set the checkbox	Checks the added users for duplicate access points included in the access level	Boolean type	Clear	Set—added users are checked for duplicate access points included in the access level Clear—added users aren't checked for duplicate access points included in the access level
2	The Field highlighting settings group
	Cards not yet valid [0]	Click the button	Sets Enables the color highlighting of the Cards not yet valid field	NA	NA	NA
	Cards expired [0]	Click the button	Sets Enables the color highlighting of the Cards expired field	NA	NA	NA
	User is locked [0]	Click the button	Sets Enables the color highlighting of the User is locked field	NA	NA	NA
3	The Interaction with Face Recognition Server group
	Server	Select the value from the list	Displays the list of the Face Recognition Server objects created on the Hardware tab of the System settings dialog window	List of the Face Recognition Server objects created in the system	NA	Depends on the Face Recognition Server objects created in the system
	Port	Enter the value in the field	Sets the communication port to connect to the Face Recognition Server via the REST API. The default value is 10000	Natural number series	0	NA
4	The Redefine DB authorization parameters—this group of settings is currently rudimentary
5	Master server	Select the value from the list	Displays the list of the Server objects	List of the Server objects	NA	Depends on the number of the created Server objects

The Fields tab

№

Parameter name

Method of setting the parameter value

Parameter description

Representation

Default value

Value

range

1

Name of field

range
1	Field name	Automatically	Displays the list of standard user fields	List of standard user fields	NA	List of fields depends on the integration modules that you use
2	Access mode	Automatically	Displays the list of assigned access modes for standard user fields	List of assigned access modes for standard user fields	NA	NA
3	Category	Automatically	Displays the list of category names to which the standard

user

fields belong

NANames of

List of category names to which the standard

user

fields belong

NA

2

4

Mode

Drop-down list

Select the value from the list

Sets the permissions to edit, specify or hide the standard fields from the

Assigns the mode of working with standard user fields in the Access Manager interface object

NA

List of access modes of the standard user field created in the system

Depends on

the standard

the standard user field

Edit—the field

will be

is displayed with the possibility of editing

Hidden—the field

will be

is hidden

Read only—the field

won

isn't

be

available for editing

Mandatory—this field is mandatory when creating and editing a user in the Access Manager module. If you don't fill out the parameter, the field

will be

is highlighted with red asterisks

3CategoryEnter the value in the fieldSets the name of the category to which the standard field belongsNADepends on the standard fieldAny value

5

Category

Select the value from the list

Assigns a category to a standard user field

List of category names of the standard user field created in the system

Depends on the standard user field

0. Full name

1. Personal data

3. Vehicle

4. Visitor data

6

Button for adding a category

Click the button

Adds a category of a standard user field

NA

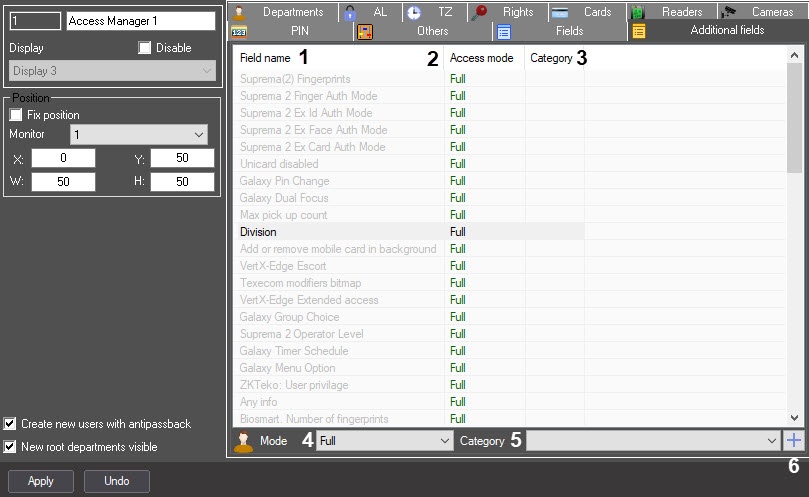

The Additional fields tab

Drop-down listSets the permissions to edit, specify or hide the additional fields from NA the additional will be will be won be will be 3Enter in the fieldSets the name of the category to which the additional field belongsAny value

№

Parameter name

Method of setting the parameter value

Parameter description

Representation

Default value

Value range

1

Field name

Automatically

Displays the list of additional user fields

List of additional user fields

NA

List of fields depends on the integration modules that you use

2

Access mode

1

Name of field

Automatically

Displays the list of assigned access modes for additional user fields

NA

Names of the additional user fields

NA

2

NA

3

Category

Automatically

Displays the list of category names to which the additional fields belong

NA

4

Mode

Select the value from the list

Assigns the mode of working with additional user fields in the Access Manager interface object

List of access modes of the additional user field created in the system

Depends on

the additional user field

Edit—the field

is displayed with the possibility of editing

Hidden—the field

is hidden

Read only—the field

isn't

available for editing

Mandatory—this field is mandatory when creating and editing a user in the Access Manager module. If you don't fill out the parameter, the field

is highlighted with red asterisks

5

Category

Select the value

from the list

Assigns a category to an additional user field

List of category names of the additional user field created in the system

NA

6

Button for adding a category

Click the button

Adds a category of an additional user field

NA
