Info
titleNote

This setting is only available in the extended mode of the Export dialog box. Click window. If the setting isn't displayed, click the >> button in the bottom right corner to display it.

...

Configuring the Export modeis selecting means selecting the format of a file (container type) and codec (original or specified recompression):

...

Container typeCodecResultLimitations and features
Without data conversionOriginal format

Export is performed in the format of Axxon PSIM file system, i.e. , that is, the format in which archive is stored on a disk

Export without conversion is not available for external repositories by default. For this option to be available, it is necessary to configure the use the EnabledFsForIpStorage registry key (see Registry keys reference guide).

  1. The following functions are NOT available in this mode:
    • Watermark is not added to the video image.

    • Captions enabling and disabling are not available when exporting. If an archive recording has captions, they will be exported. When switching to the without data conversion position, the Add captions checkbox is set automatically and becomes unavailable for editing.

    • The conversion is not available—the Display as on monitor screen checkbox is unavailable.

    • Export in the .exe format is not available
AVI / MKV / MP4 / FLV / ASFOriginal formatExport to the selected format is performed without recompression (without changing of the codec)Watermark is added to the video image. It is displayed over the video image when playing back the video archive in the Axxon Player utility (see Watermarks)
AVI / MKV / MP4 / FLV / ASFRecompressionExport to the selected format with the selected audio and video codec. Video codec is specified using the Video format button, audio codec is specified using the Audio format button (described below)


Note
titleAttention!

The availability of the codec (recompression method) depends on the selected container (file format).

Expand
titleExpand the table of the container and codec compatibility

Available codecs when exporting with recompression:

Codec / containerAVIASFFLV MKVMP4
Intel IYUV+----
Microsoft Video 1++---
x264+++++
Lagarith Lossless++---
MPEG4++-++
Full Frames +- - - -



Features:

  • If fisheye conversion, rotation, or scaling is applied to the image in the Surveillance window, then in order to export the video using this conversion, it is necessary to set the Display as on monitor screen checkbox (see Image processing). The video is stored in the archive in the original format, and when being exported, the video angle is selected at the current moment for the camera in the Surveillance window.
  • Watermark is added to the video image. It is displayed over the video image when playing back the video archive in the Axxon Player utility (see Watermarks).
  • The 100 FPS value will be is displayed in the properties of the exported AVI file. This value is set by the software, as the frames of the original video can be arranged unevenly. When exporting, frames are distributed so that the final AVI file is played back smoothly.
  • The size of the exported AVI file is limited to 1.97 GB. For other formats and modes, there is no size limit.
  • By default, if the selected export period contains a recording from several streams that have different video resolutions, then each video fragment of such a stream will be is exported to a separate file. It is possible to splice such video fragments into one file using the UseFfmpegConcat registry key (for details, see Registry keys reference guide). In this case, the resulting exported file will be is in MKV format regardless of the selected container type

Video converting format

When clicking you click the Video format button, the dialog window will open, a window opens in which you can select codec and compression ratio should be selected.

Features of recompression for different formats:

  • Recompression without compression is only available for AVI container.
  • When recompressing you recompress to Xvid MPEG4 Codec/Microsoft Video 1 format, the resulting exported file may can be several seconds longer.
  • When recompressing you recompress to x264vfw−H.264 / MPEG-4 AVC codec format, the first few seconds in the resulting exported file may can be lost.

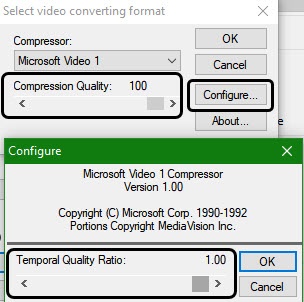

  • When recompressing you recompress to Microsoft Video 1 format, click the Configure button and move the Temporal Quality Ratio slider to the maximum value (1), and select the maximum Compression Quality (slider to 100):

Audio converting format

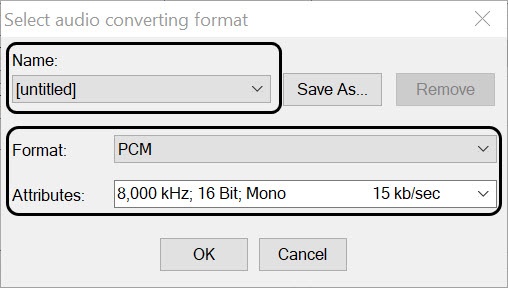

When clicking you click the Audio format button, the dialog box will open, a window opens in which you can select the format of the audio file and the set of sound quality parameters or ready settings profile should be selected.

Info
titleNote

For the ASF and MKV containers, when exporting you export with recompression, it is necessary to you must select an attribute value of 8,000 kHz or less in the PCM audio format parameter.

...
