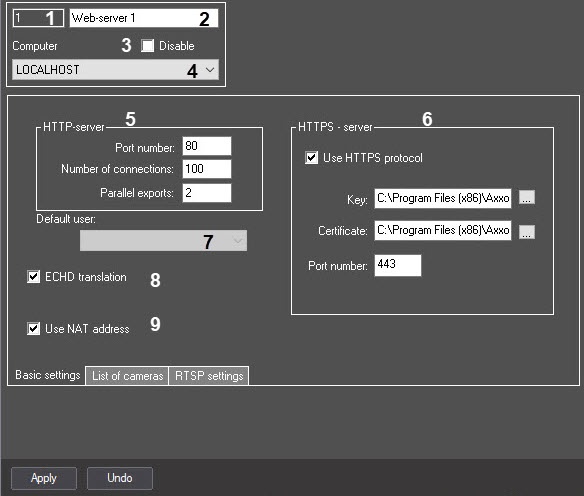

Parameter

Method of setting the parameter value

Parameter description

Representation

Default value

Value range

1

Identification number*

Automatically

Displays the identification number of the Web-server object in the

video surveillance system with the distributed architecture

Sequence of numbers

NA

From 1

to 2147483647.

Depends on the number of the Web-server objects in

the video surveillance system with the distributed architecture

2

Name*

Enter the value

in the field

Sets the name of the Web-server object in the

video surveillance system with the distributed architecture

Latin, Cyrillic, and service characters

Web-server

A line containing a sequence of any characters (letters, digits, service characters except > and < characters), case-insensitive.

Number of characters—from 1 to 60

3

Disable

Set the checkbox

Disables the Web-server object in the

video surveillance system with the distributed architecture

Boolean type

Clear

Set—the Web-server object is disabled and isn't used

Clear—the Web-server object is enabled and used

4

Computer

Select the value from the list

Sets the Computer parent object of the

system with the distributed architecture

to which the given Web-server object belongs

Name of the Computer objects registered in the system

Name of the Computer parent object

Depends on the number of the Computer objects in the

video surveillance system with the distributed architecture

The HTTP-server group

5

Port number

Enter the value

in the field

Sets the number of the port used by the HTTP

server (used for video surveillance via a web browser, including via the internet)

Sequence of numbers

80

Any valid unused port numbers.

The number of ports is determined by the system administrator

Number of connections

Enter the value

in the field

Sets the maximum possible number of connections to the

server via the Web-server module.

Each request to view the video signal from each camera and each request to control all PTZ devices

, regardless of their number, is considered as a connection

100

Any integer.

If you specify the 0 value

in

the Video surveillance monitor of the Web-server module, video signals

aren't

displayed

Parallel exports

Enter the value

in the field

Sets the maximum allowed number of archive files to be uploaded simultaneously

2

From 1 and above.

If you leave the field blank, the lowest possible value is used

The HTTPS-server group

6

Use HTTPS protocol

Set the checkbox

Enables the HTTPS protocol when transmitting data via the Web-server

Boolean type

Clear

Set—the HTTPS protocol is used

Clear—the HTTPS protocol isn't used

Key

Enter the value

in the field

Sets the path to the folder of the key for data transmission via the HTTPS protocol

Latin, Cyrillic, and service characters

C:\Program Files (x86)\Axxon PSIM\Modules\SSL\ssl_internal.key

Depends on the location of data encryption key when transmitting data via the HTTPS protocol

Certificate

Enter the value

in the field

Sets the path to the folder of the certificate for data transmission via the HTTPS protocol

Latin, Cyrillic, and service characters

C:\Program Files (x86)\Axxon PSIM\Modules\SSL\ssl_internal.cert

Depends on the location of certificate file when transmitting data via the HTTPS protocol

Port number

Enter the value

in the field

Sets the number of the port used for the HTTPS

server (used for video surveillance in a web browser and

via the internet)

Sequence of numbers

443

Any available unused port numbers.

The number of ports is specified by the system administrator

Out of the group

7

Default user

Select the value from the list

Sets the user with rights and authority to conduct the video surveillance from the Remote workstation using the Web-server module

Names of the users registered in the system and added to the rights

NA

Depends on the number of the users registered in Axxon PSIM

8

ECHD translation

Set the checkbox

Enables

the use

of HTTP requests used for integration with ECHD

Boolean type

Set—requests used for integration with ECHD are run for the Camera objects on the basis of which the ECHD channel objects are created

Clear—requests used for integration with ECHD

aren't run

№

Parameter

Method of setting the parameter value

Parameter description

Representation

Default value

Value range

10

Range

Click the button

Opens the window for bulk selection of cameras (see Bulk selecting and configuring cameras for the Web-server)

11

Clear

Click the button

Clears the list of the added cameras

12

Add all

Click the button

Adds to the list of cameras all Camera objects created in the system

13

Number

Select the value from the list

Sets the number of the camera the video from which is transmitted to the remote workstation using the Web-server module

Identifiers of the Camera objects registered in the system

Depends on the number of the cameras in the

video surveillance system with the distributed architecture

Camera

Select the value from the list

Sets the name of the camera the video from which is transmitted to the remote workstation using the Web-server module

Names of the Camera objects registered in the system

Depends on the number of the cameras in the

video surveillance system with the distributed architecture

Video stream

Select the value from the list

Sets the number of the video stream used for displaying in the Web-server interface

Numbers of video streams enabled on the camera and the By default value

By default

Depends on the number of the enabled streams

of the camera

Live video

Select the value from the list

Sets the source of live video that is displayed in the Web-server interface

Available means to get live video

server

Server—live video is received from the

 server to which the camera is connected

Videogate—live video is received from the Videogate

Note. If a camera

isn't configured to transmit video through the Videogate, then this item is unavailable in the list

Archive

Select the value from the list

Sets the source of the archive video that is displayed in the Web-server interface

Available means to get archive video

server

• Disabled—archive video isn't transmitted;
• Server—archive video is received from the

•  server to which the camera is connected;
• Backup archive—archive video is received from the Backup archive;
• Videogate—archive video is received from the Videogate archive. If a camera

• isn't configured to transmit video through the Videogate, then this item is unavailable in the list

Microphone

Select the value from the list

Sets the name of the microphone associated with the camera, the audio from which

is transmitted through the Web-server

Names of the Microphone objects registered in the system

Depends on the number of the Microphone objects in the

video surveillance system with the distributed architecture

Speaker

Select the value from the list

Sets the name of the speaker associated with the camera, which

is used to

play back the audio received from the client

Names of the Speaker objects registered in the system

Depends on the number of the Speaker objects in the

video surveillance system with the distributed architecture

Compression

Select the value from the list

Sets the compression level of the video signal transmitted to the remote workstations using the Web-server module. Increasing the level of compression leads to deterioration of the video signal quality

Reference compression levels

Not defined, 1

—5.

The 1 value corresponds to the minimum compression level, the 5—to the maximum compression level

If the compression level

isn't specified, video signal is transmitted with the same compression level as set for recording and transmitting video

Control

Select the value from the list

Sets the camera control (arm/disarm, PTZ, recording to the archive) according to the user rights

Boolean type

Enabled

Enabled—camera control according to the user rights is enabled

Disabled—camera control is disabled regardless of the user rights

• Forbidden—option of the PTZ control

• using a web browser

• ;
• Low priority—low priority of control;
• Medium priority—medium priority of control;
• High priority—high priority of control

№

Parameter

Method of setting the parameter value

Parameter description

Representation

Default value

Value range

RTSP

server

Set the checkbox

Sets the RTSP

Server (one or several) to process the ECHD requests

Names of the RTSP

Server objects registered in the system

NA

Set—RTSP Server is used to process ECHD requests

Clear—RTSP Server isn't

used to process ECHD requests
