1. Double-click the icon  in the tray.
2. In the Update agent window that opens, click  click the  Image Removed Change button.
3. As a result, the Server field becomes editable. Enter the IP address and port of the update server separated by a colon in this field:
   Image Removed.
4. Click SetClick the Set button.

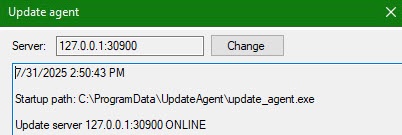

As a result, the window displays information about the connected update server and its status—ONLINE or OFFLINE:

Image RemovedImage Added

General update procedure on the client

1. The client receives the update task from the Update update manager.
2. The client requests from the server the installation package with the required version in ZIP format, downloads it, and unzips it.
3. Then the update runs in the quiet mode:
   1. If Axxon PSIM is running at this time, the client stops it;.
   2. The client runs the update;.
   3. After a successful update, if it was specified during configuration that Axxon PSIM must be restarted, the client restarts it. It is also possible to You can restart the computer if this was specified.
4. After the update, the client deletes the installation package.

...

The bottom part of the Update agent window displays information about the client (update agent):

Image RemovedImage Added

If you right-click the tray icon Image Added, a dialog window opens:

Image RemovedImage Added

If you click Exit, the update agent stops. If you click Open log folder, a folder with the logs of the update agent opens.

To restart the update agent, go to its installation folder and run the update_agent.exe file.

Click Image AddedClick Image Removed to hide the Update agent window without stopping it.

...
