  1. Run the VLC Media Player.

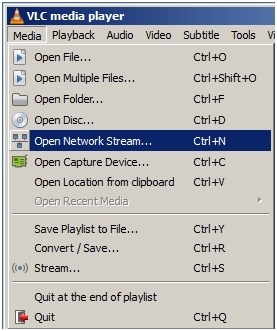

  2. Select the Open Network Stream item... in the Media menu.
    Image RemovedImage Added

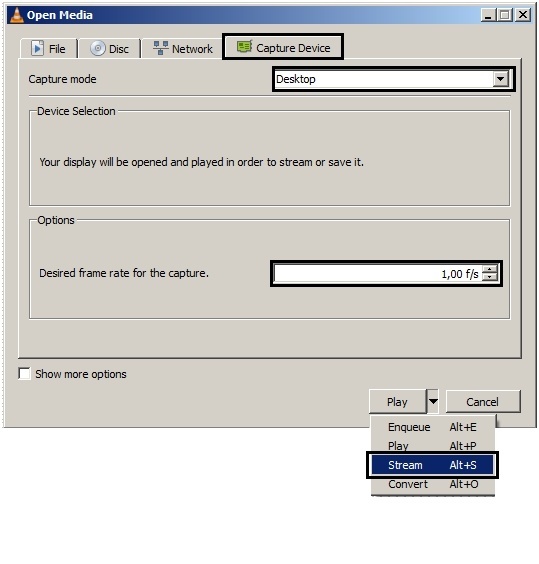

  3. In the opened window go to the Capture Device tab.
    Image RemovedImage Added
  4. In the Capture mode drop-down list select the Desktop value.
  5. Set the desired frame rate for the capture in the corresponding field.

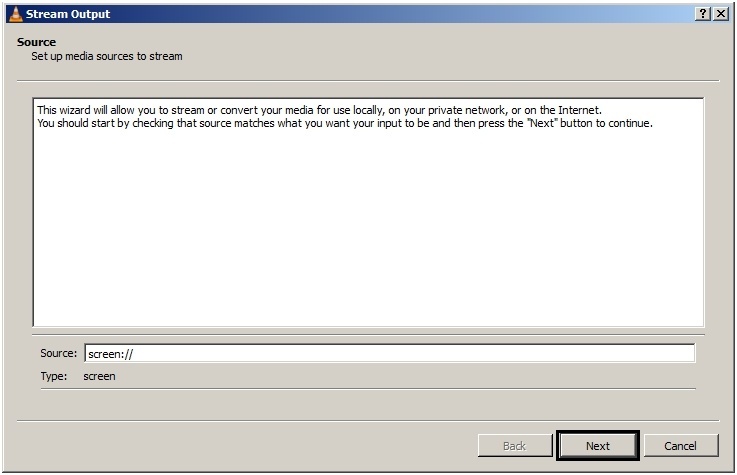

  6. In the Play list select the Stream value. As a result the Stream Output window will open.
    Image RemovedImage Added
  7. Click the Next button.

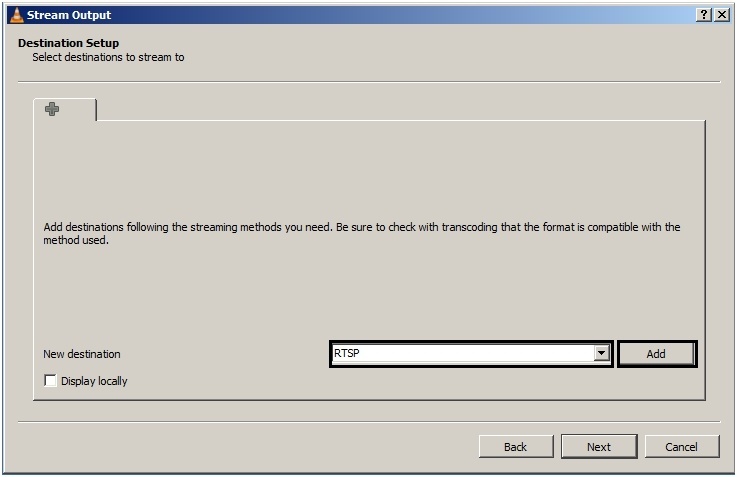

  8. In the opened window select the RTSP value in the New destination drop-down list and click Add button.
    Image RemovedImage Added

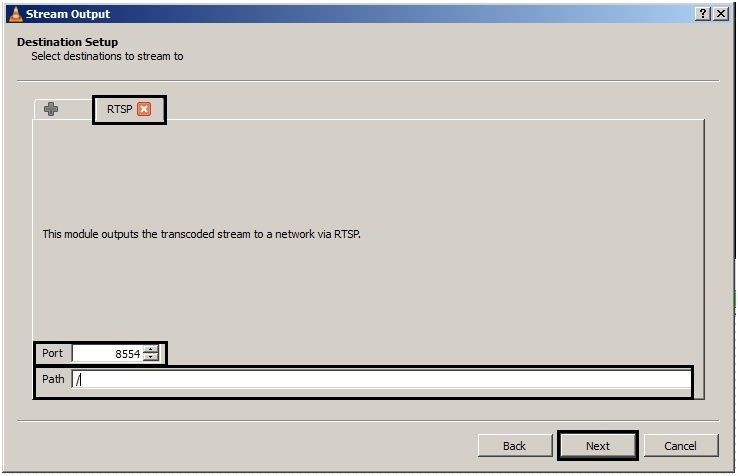

  9. Go to the RTSP tab.
  10. Specify port and path to the stream if it's required.
    Image RemovedImage Added
  11. Click Next button.

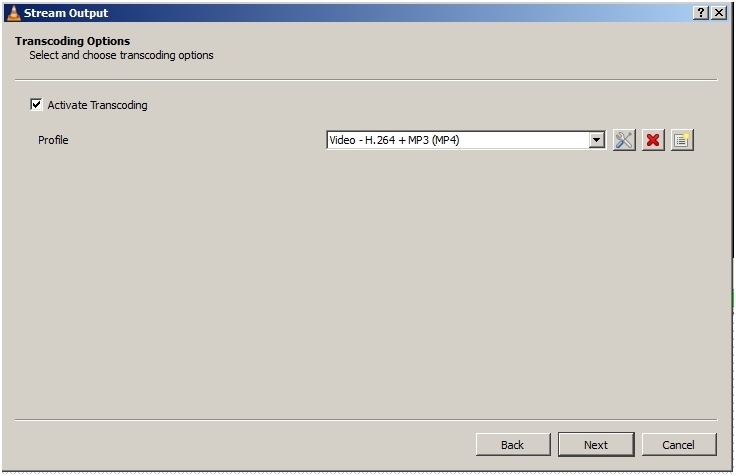

  12. Specify parameters of video transcoding and click Next button.
    Image RemovedImage Added
  13. Click Stream button in the opened window.

 Image RemovedImage Added

After that configure receiving of the RTSP stream and its record to the archive in the Intellect software package – see Configuring multimedia receipt using RTSP protocol and  Selecting the disks for video archive storage sections.

...
