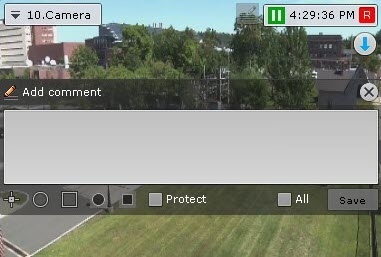

To add a comment, click the Image Removed the Image Added button. A dialog box opens for entering a comment.

The number of characters in the comment is limited.

...

1. Position of comment in the frame (the window with the comment is movable by dragging the window title).
2. Transparency of comment window, by adjusting the Image Removed the Image Added slider from left to right (from opaque to maximum transparency).

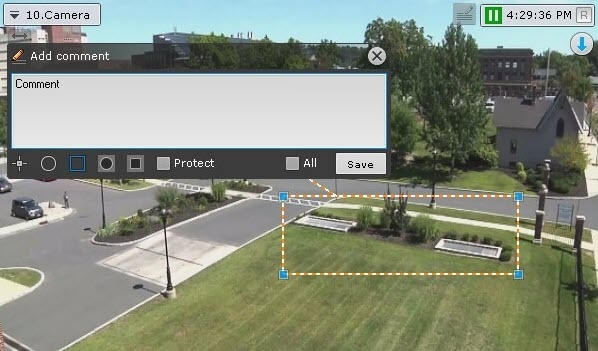

3. Marking the area of interest in the frame, with a dot (Image RemovedImage Added), semicircle oval (Image RemovedImage Added), or rectangle (Image RemovedImage Added). To do so:
   1. Click the relevant button and then click anywhere in the frame. The selected element is displayed.
      Image Modified
Drag
4. 1. Move the element to the
necessary place in
5. 1. required area of the frame. To do
so
6. 1. this, left-click
and drag the edge of the area (or for a dot, click and drag the dot)
7. 1. on the element and move the cursor without releasing it.
   2. Set the size of the element by stretching its anchor points.

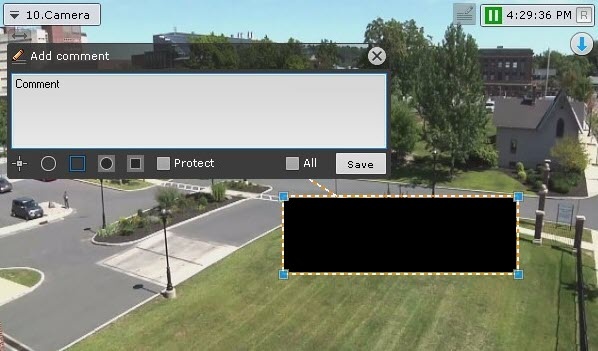

8. Marking the privacy zone — the area of the frame that should be hidden. You can mark it with an oval (Image Added) or rectangle (Image Added). To do so:
   1. Click the relevant button and then click anywhere in the frame. The selected element is displayed.
      Image Added
   2. Move the element to the required area of the frame. To do this, left-click on the element and move the cursor without releasing it.
   3. Set the size
by dragging the corner points
9. 1. of the element by stretching its anchor points.

   2. The Mask position will be displayed below the comment. Click the Add button. Click Image Added to delete a position.

      Info
      title Note
      The privacy zone cannot be set in real time.




      Info
      title Note
      For one comment, you can specify either the area of interest, or the privacy zone.




10. Protection of an archive interval with a comment from overwriting. To protect archive records with a comment from being deleted, click the Image Added button. To cancel protection, click the Image Added button (see Setting up record protection).
11. Adding a comment to all cameras on the layout — set the All check box.

To save the comment, click the Save button. Otherwise, click Image Removed to Image Added to cancel.

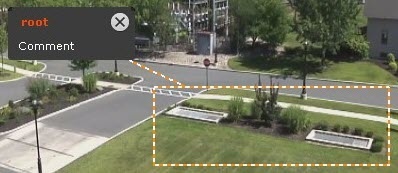

After being saved, a comment is displayed in the frame as specified. To delete the comment, before you perform any other command in the system, click the Image Removed the Image Added button..

Image RemovedImage Added
