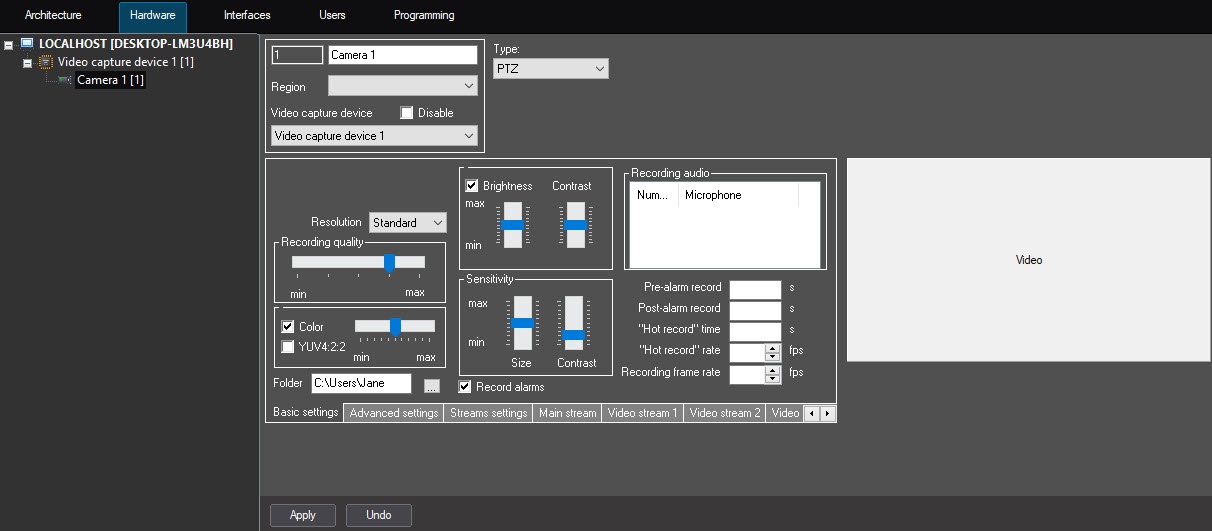

1. Go to the Hardware tab in the System settings dialog box (1).
2. Select the Camera object corresponding to the required camera in the objects tree (2). The settings panel for the selected object is displayed on the right of the Hardware tab.
3. Go to the Basic settings tab on the settings panel of the Camera object (3).
   Image Modified

4. Specify the recording frame rate value in the Recording frame rate field (4). The value is not to exceed the digitization frame rate value. The value set for the Recording frame rate parameter allows calculating the interval (msec) in which a frame is to be captured to be stored in the archive.   The calculation is made according to the formula:
   Interval = 1000 / Value in the Recording frame rate field

   Info
   title Note.
   Setting the value of the Recording frame rate parameter, take account of video digitizing rate and frame rate (fps), otherwise actual recording speed can differ from the set one.




5. Click the Apply button (5).
