The Playback card object is registered on the basis of the Computer object in the Hardware tab of the System settings dialog box.

Image Modified

To configure the Audio playback card object, do the following:

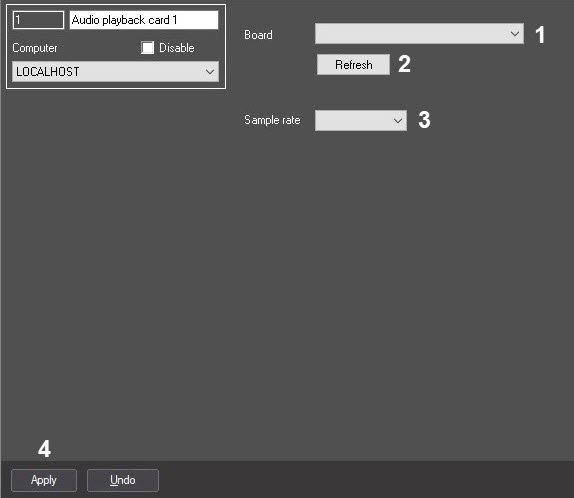

1. Go to the settings panel of the Audio playback card object.
   Image Modified

2. Select the type of audio digitization device in the Board dropdown list (1).

   Info
   title Note.
   SoundBlaster, ADC video card, audio digitization USB devices, IP cameras digitization devices are used as audio digitization devices.




3. Select the rate of audio digitization in the Sample rate dropdown list (3).
4. To save the changes, click the Apply button (4).

...
