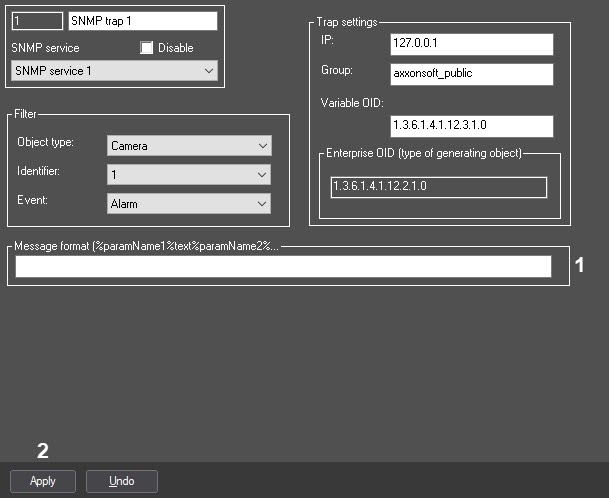

1. Go to the settings panel of SNMP trap object.
   Image Modified

2. Enter in the field Message’s format string (%parameter’s name1%text% parameter’s name2%(%paramName1%text% paramName2%... parameters’names in the required sequence. Description of event’s main parameters is given in the table.

   Parameter’s name	Description of parameter	Availability in the message
   %event_action%	Event, registered in the system	Is determined by object’s type, for which the event may be registered
   %event_source_id%	Object’s identification number, for which the event has been registered
   %event_source_type%	Object’s type, for which the event has been registered
   %owner%	Computer name, from which the message has been received	Obligatory message’s parameters
   %time%	Time of event’s creation
   %user_id%	Computer’s user identification number,   from which the message has been received	Optional message’s parameters
   %module%	Module’s name, for which the event has been registered




   Info
   title Note.
   In case when message’s format string is not set, SNMP message is formed in accordance with the pattern  %event_action%,%event_source_id%,%event_source_type%, %owner%,%user_id%,%module%.




3. To save the changes click Apply button.

...
