Tip

This page describes the setup using the example of receiving video from Axxon One.

Receiving

...

video using the ONVIF-Server module is configured in Axxon

...

One. Information on how to search and add IP devices to Axxon

...

One is described in the Axxon One User Guide.

After adding a camera to Axxon NextOne, in Intellect Axxon PSIM two ONVIF-Server Profile objects will be created under ONVIF-Server object for each camera added to the corresponding RTSP Server. These objects correspond to video streams of low and high quality in Axxon NextOne.

Info
titleNote

If multistreaming is disabled for the camera, then the parameters of both profiles corresponding to the camera are the same. See Configuration of Configuring the multistream video.

If user rights are configured in Intellect Axxon PSIM (see Configuration of users and permissions), then the login and password are to be specified in order to connect to the camera. Otherwise there is no need to specify any login or password.

If required it is possible to select the video stream in the Stream dropdown drop-down list. Available video streams areconfigured on the settings panel of the Camera object– see Configuration of object—see Configuring the multistream video.

When changing camera parameters in Axxon NextOne the corresponding changes will be applied in Intellect Axxon PSIM too. For instance, if the microphone, analytics, metadata transmission and sensor/relays are enabled in Axxon NextOne, then the corresponding settings are applied for the ONVIF-Server Profile object in Intellect Axxon PSIM:

  1. PTZ. PTZ object is to be created and configuredin Intellect Axxon PSIM in order tocontrol PTZ on camera connected via ONVIF-Server on the client. See PTZ configuration section in Installing and configuring security system components guide).
  2. Microphone, Audio stream. Audio card and Microphone objects are to be created and configuredin Intellect Axxon PSIM in order toreceive and record audio from ONVIF Server on the client. See Configuring audio acquisition from IP devices section in Installing and configuring security system components guide.
  3. Analytics, Metadata. Tracker and VMDA detection objects are to be created and configuredunder the corresponding Camera objectin Intellect Axxon PSIM in order toreceive and record metadata and analytics data from ONVIF Server on the client. See Configuring smart video detection tools. In Axxon NextOne the ONVIF events detection is to be created for the added camera.
Note
titleImportant!

Changes of the configurationof the RTSP Server object corresponding to the ONVIF Server object in Intellect Axxon PSIM will be applied in Axxon NextOne only after the Axxon NextOne Server is restarted or when the camera is deleted and added to Axxon NextOne again.

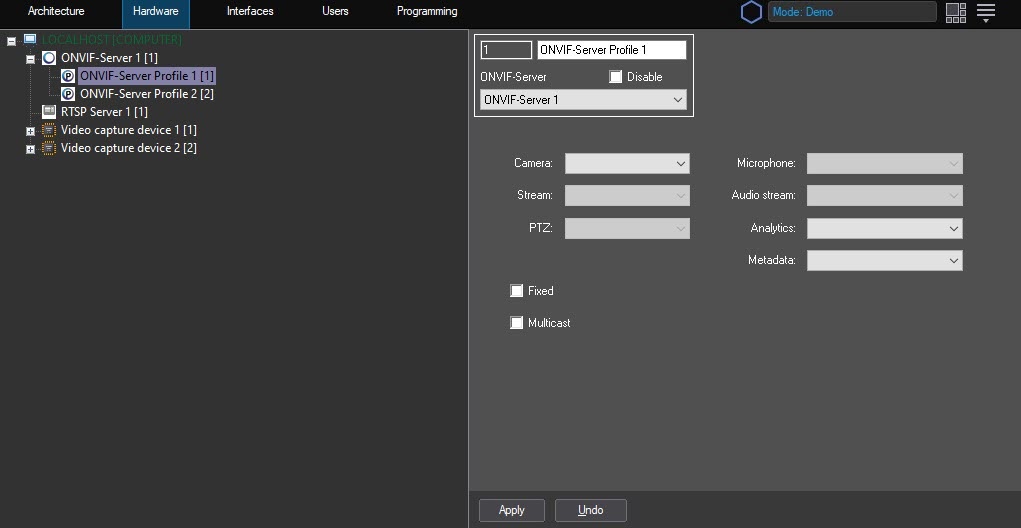

Besides, there are the following checkboxes on the settings panel of the ONVIF-Server Profile object:

  1. Fixed– disables —disables deleting the profile using the driver.
  2. Multicast– enables —enables video transmission in the multicast mode. There are some extra actions besides setting the checkbox checked:
    1. Set the registry key:
      HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\ITVAxxonSoft\IntellectPSIM\Video\TransportProtocols
      rtsp = multicast
    2. Enable the multicast mode on the settings panel of the RTSP Server object corresponding to the ONVIF-Server object - see object—see Configuring the RTSP Server module.
