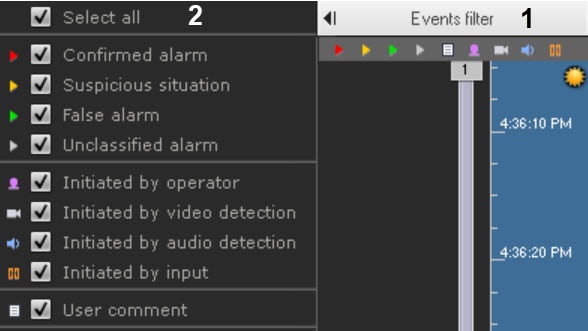

1. Click the Events filter button (1). The Events filter window will then be displayed opens (2).
   Image Modified
2. Select the checkboxes for the types of alarms which should that must be displayed on the Archive Navigation Panel, according to their status:

   1. Confirmed alarm.
   2. Suspicious situation.
   3. False alarm.

   4. Unclassified alarm.

      Info
      title Note.
      If you clear the checkbox for a certain type of alarm, this type of alarm and the corresponding track are no longer displayed on the timeline.

3. Select the checkboxes for the types of alarms which should that must be displayed on the Archive Navigation Panel, according to the cause of their initiation:

   1. Initiated by operator.
   2. Initiated by a video detection tool detector (basic or embedded, including their sub-detection toolsdetectors).
   3. Initiated by an audio detection tool detector (basic, situation analysis, or embedded).

   4. Initiated by an input.

   Info
   title Note
   By default, all checkboxes are already selected.

   Note
   title Attention
   To display alarms on the timeline, select at least one type of alarm event and one initiator.

4. Select the checkbox to display operator comments.
5. Click the Apply button.

Selection of events is now complete.

...
