To search for moments when the object moves from one area to another:

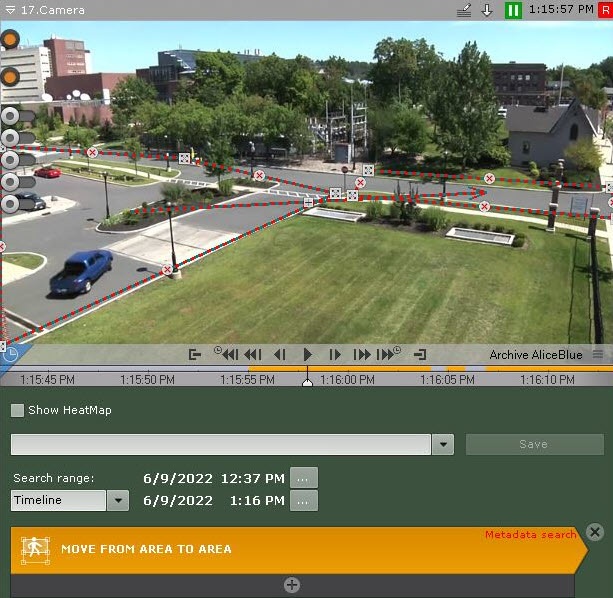

1. Set two areas in the Viewing TileSurveillance window: the area the object moves from and the one it moves to.


   The nodes anchor points of each area are connected by a two-colored dotted line. The direction of motion movement between the areas is indicated by a dotted arrow.

   By default, each area is defined by 4 nodes four anchor points. The nodes anchor points of the first area have the coordinates (20%, 40%), (40%, 40%), (40%, 60%), (20%, 60%), and those the anchor points of the second area have the coordinates (60%, 40%), (80%, 40%), (80%, 60%), (60%, 60%) as percentages of the width and height of the frame, respectively.

   Infotitle

   Note

   You can collapse the graphical elements if they block the visual elements and prevent editing them. To hide them, select the Hide graphical elements check box.



   Area editing operations are described in the Motion in area section.

   To change the direction of motion movement between the areas, click the button on the direction arrow.

2. Select the metadata source if there are several for this video camera. This parameter will not be isn't displayed if there is only one source.
3. Specify any number of additional parameters by clicking , if necessary (see Configure Configuring the search parameters).
4. Set the search interval (see Setting a search interval).

5. Click the Search button.

   Info
   title Note
   Once launchedstarted, the search can be stopped at any time. To do this, click the Stop button, which appears instead of the Search button.

The found moments will be are displayed in the search results panel.
