To create the export task, do the following:

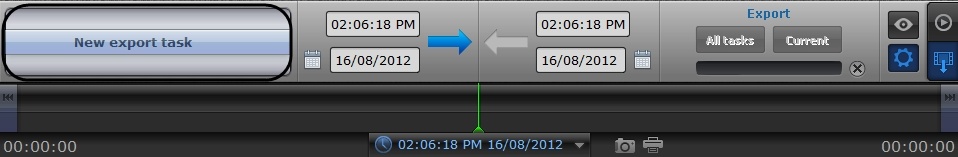

1. Select the New export task in the list. The list value selection is performed by dragging the list items up or down until they align with the list center.

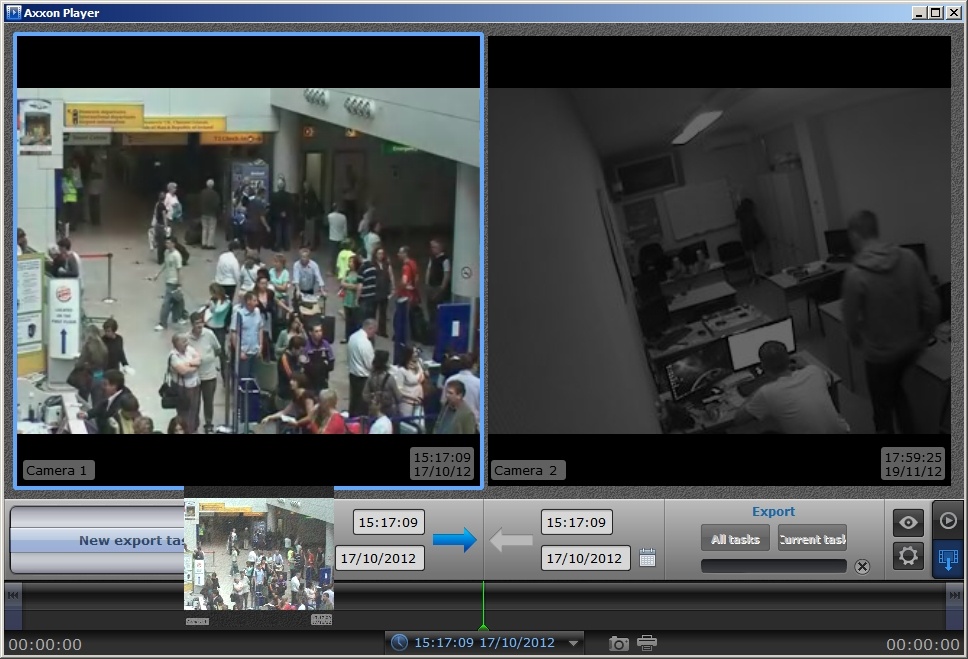

2. Select Using the mouse, select an image from the required camera and drag it to the export list using the left mouse button.

   Cameras will be added to the export list (1).



   Info
   title Note
   You can create several export tasks, i.e. select several cameras for one task, then create another export task and add other cameras to it. To remove a camera from the cameras list, click the Image Modified button.

3. Each export task has a separate window with settings.

   For the correct operation of the player, you should not add more than 10 cameras within one export task. The limitation is linked to the Windows API pecularities

   Note
   title Attention!
   Window with settings is only available for formats different from the Axxon PSIM own format.

   To open the settings window, click the gear button Image Added next to the list of cameras.

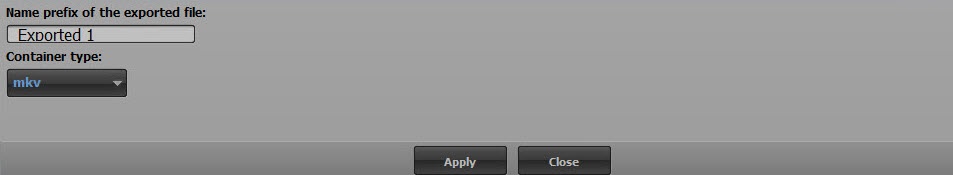

   1. In the window that opens, in the Container type field, select the container type (a file format containing a set of video and audio tracks, subtitles tracks, as well as other service information) for the exported file: avi or mkv.
      Image Added

   2. In the Name prefix of the exported file field, specify the name of the exported file.

   3. To save the changes, click the Apply button. To discard the changes, click the Close button.

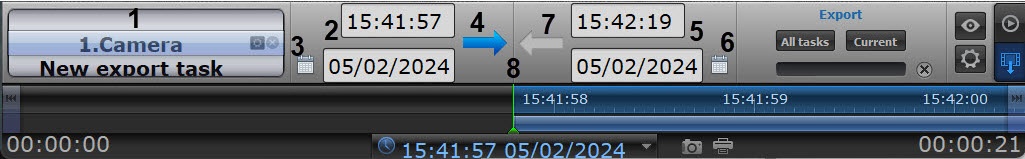

4. Specify the export start and end date by in one of the following ways:

   1. Enter the required value in the field manually (2, 5).
   2.  Click the  button and use the Calendar tool (3, 6). Calendar operation algorithm is similar to the archive navigation (see Archive navigation using the calendar).
   3. Click the  button (4) and specify the export start date by dragging the time scale relative to the indicator (8).
   Specify the export end date by one of the following ways:

   1. Enter the required value in the field manually (5).
   2. Click the Image Removed button and use the Calendar tool (6). Calendar operation algorithm is similar to the archive navigation (see Archive navigation using the calendar).
   3. Click  Click the  button (7) and specify the export end date by dragging the time scale relative to the indicator (8).

...
