1. Enable the displaying of edit parser panel.
2. Set the rules of receipts structuring on the settings panel.

To the Enable enable the displaying if edit parser panel do the following steps:

1. Run the utility Extended settings tweaki.exe from the Start menu OS Windows:Start -> Programs -> Intellect Axxon PSIM -> Tools -> Tweaki. Intellect tweaker Advanced settings utility. Axxon PSIM® Advanced Setup dialog window will open in result.

   Info
   title Note.
   The utility can also be run from Tools folder of POS PSIM install catalog: <POS <POS PSIM installation directory>\Tools\Tweakitweaki.exe. Detailed description of work with tweaki.exe utility is given in the Intellect software: Administrator guide documentation  Administrator's Guide documentation.




2. Go to the settings panel of POS PSIM POS section dialog window Intellect Axxon PSIM Advanced Setup (1).
   Image Modified
3. Set the checkbox Allow to specify recognition settings to display edit parser panel (2).
4. Click OK to save the changes and quit tweaki.exe utility (3).
5. Run the POS PSIM software and then go to then click Advanced button (1) in the the settings panel of the POS terminal object.
   Image Modified
6. Click Advanced button and select Parser settings  Select Parser settings (1) in the appeared dialog window.

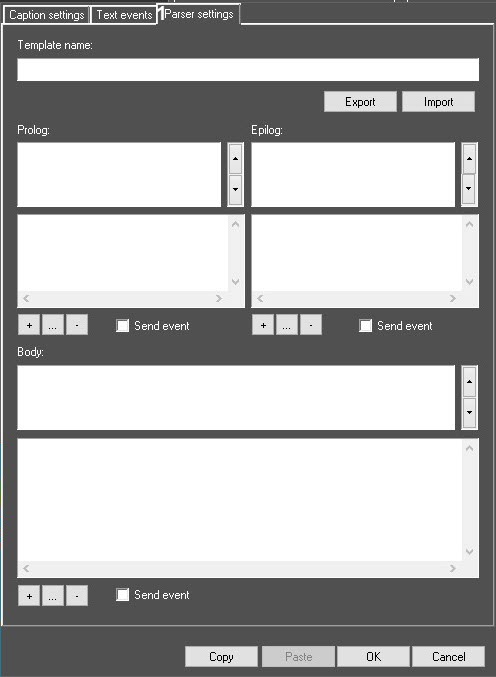

Parser settings tab will be displayed in result

Displaying the Parser settings tab is completed.

...

1. Names of structuring rules are displayed in the first listlist 1.

2. If it is necessary to add a new rule to the first list, click  (1-2). Enter the name of the new rule in the opened Enter/change value dialog window and then click ОК OK.


3. If it is necessary to edit the name of the rule, select the name of this rule and click (1-2). Set a new name of the rule in the opened dialog window Enter/change value and then click OK.

   Info
   title Note.
   Instead of button button, you can double-click on the name of the rule.




4. If it is necessary to delete the rule, select the name of the rule in the first list list 1 and click  button(1-2) button.
5. If it is necessary to move the name of the rule upwards, click ; Image Removed - Image Added − to be moved downwards (3).
6. Select the name of the rule in the first list and then enter the required changes in the field 4 2 to create/edit the text of the structuring rule (Figure 6.3—45, 4)
7. If it is necessary to send the message about registration of the given receipt to POS-server, set the Send event checkbox (Figure 6.3—45, 5)3).
8. Repeat steps 1-7 for all the required setting groups on the edit panel.

Editing the data’ structuring rules in groups 2-4 is completed.

To configure the parser when data is received only about the beginning of a receipt, do the following:Image Removed

1. Enter the template name in the Template name field (1).
   Image Added
2. In the rule name area of the Prolog field (2), enter the value __CLOSE__=1, using a double underscore before and after the word CLOSE.
3. In the check structuring rules area (3), enter the value .+ (point plus).
4. Set the Send event checkbox (4).
5. Press the OK button (5).

...

To export structuring rules to the parser file do the following:

1. Click Export button (1).
   Image RemovedImage Added
2. In the standard Windows Save as dialog box that appears, enter a file name, select a folder, and save the parser file with the .prl extension.
   Image RemovedImage Added

Exporting the structuring rules to the parser file is completed.

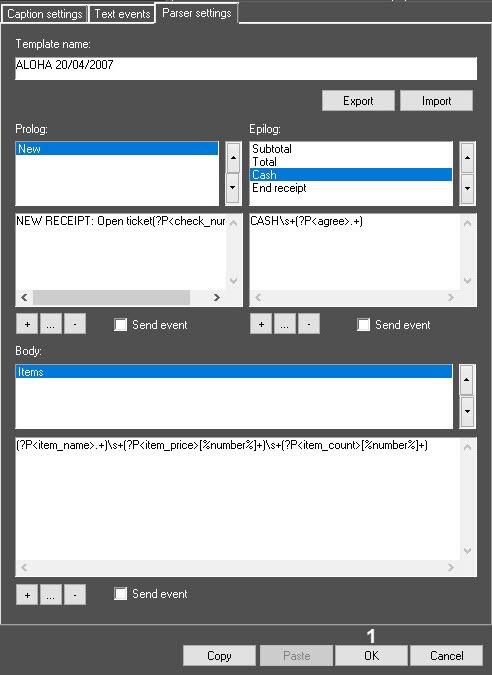

Click OK (1) to save the changes and close the the Advanced window.

Image RemovedImage Added

Cick Apply on the POS - terminal object’s settings panel (2).

...
