Info
titleNote

This option is available for all Axis devices on the following hardware platforms:

  • MIPS (ARTPEC-4 and ARTPEC-5 CPUs),
  • ARMv7 (ARTPEC-6 and ARTPEC-7 CPUs).

For full list of setup parameters, refer to the AxxonSoft Tracker help.

...

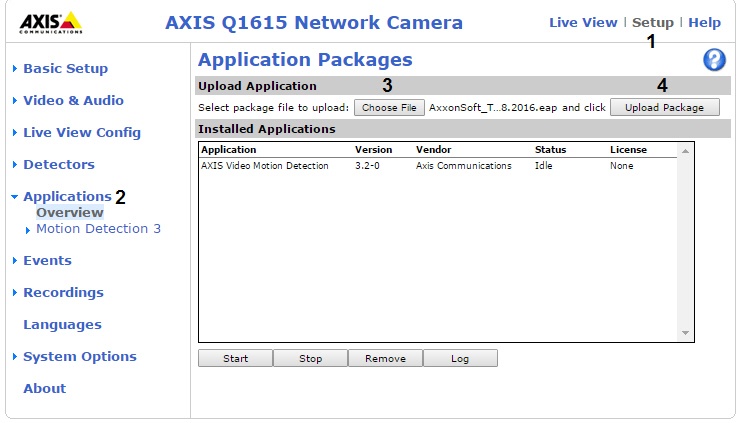

  1. Go to the device's web interface.
  2. Select the Setup menu (1) → Applications (2).

  3. Select the ACAP application (3) and click Upload the Package (4).

    Note
    titleImportant!

    For application, contact AxxonSoft help-desk. You will be given a license code that is to be registered along with camera's MAC address on Axis website in order to get the license file.

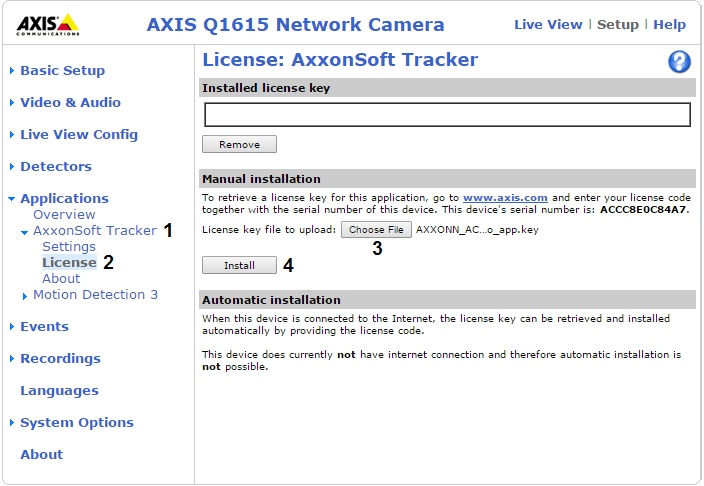

  4. Go to AxxonSoft Tracker menu (1) → License (2).
  5. Select the license file (3).
  6. Click Install (4).

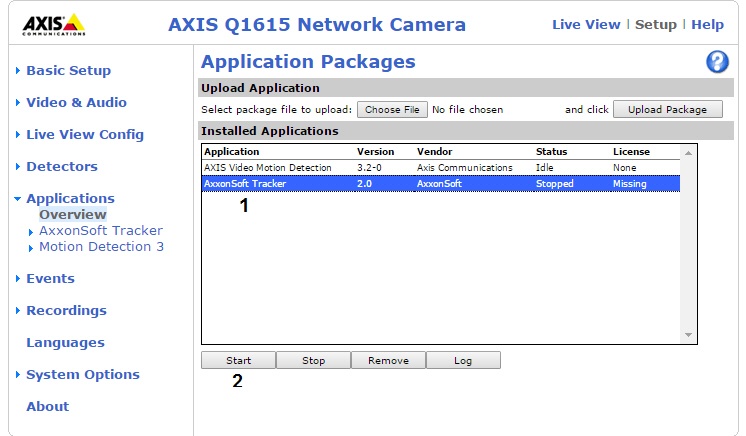

  7. Go to Applications, select the installed application applications (1).
  8. Click Start (2).

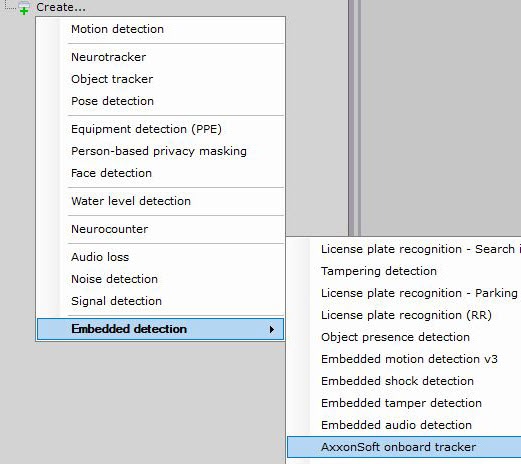

  9. In Axxon One, create for the corresponding camera the AxxonSoft onboard tracker object.

  10. Configure the tracker and create the required detection tools.

    Info
    titleNote

    You can configure the AxxonSoft onboard tracker object similar to the General information on Scene Analytics detection tools.

    You cannot configure perspective for solution based on Axis devices.
