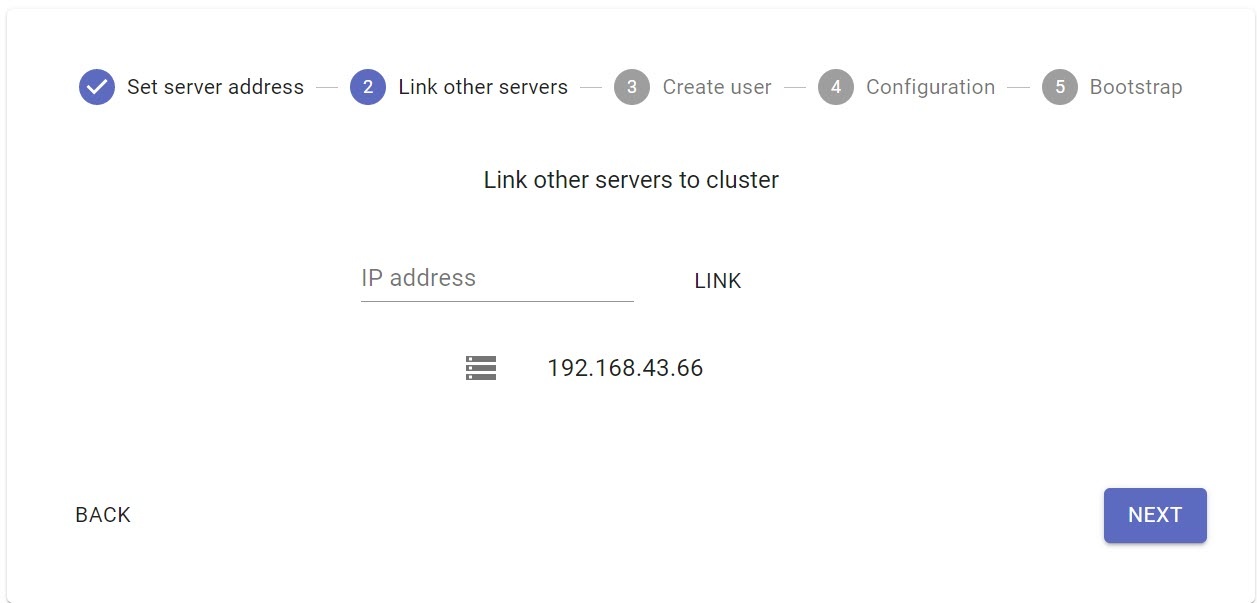

To initialize 1+1 configuration, add a second Server to the configuration. To do this, enter the IP address and click LINK.

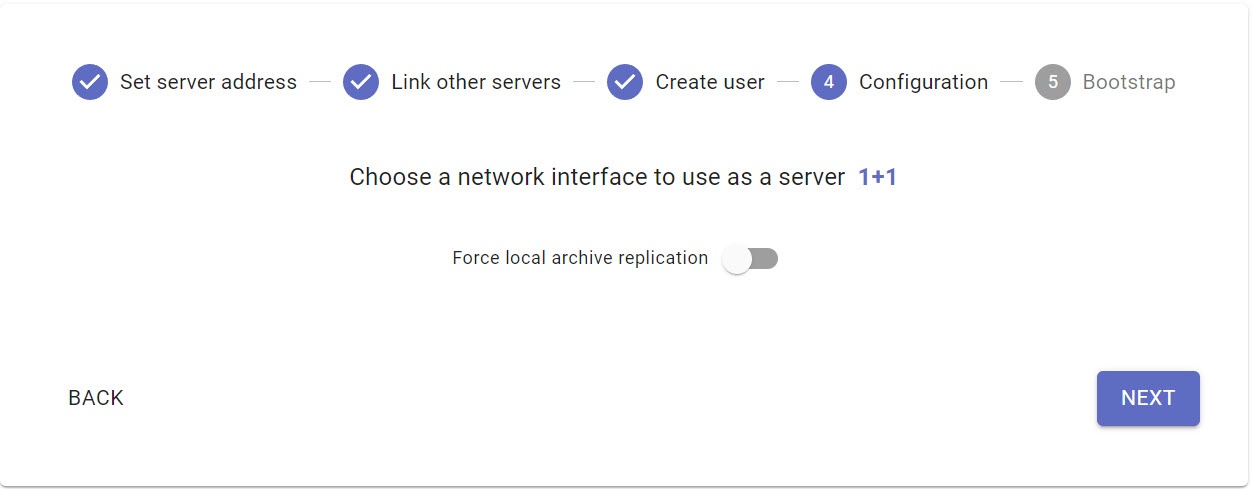

Next, activate the Force local archive replication parameter if you want the replication to the backup archive to be continuous regardless of the location of the master node.

...

1. Add a second Server to the configuration (see Creating a cluster).

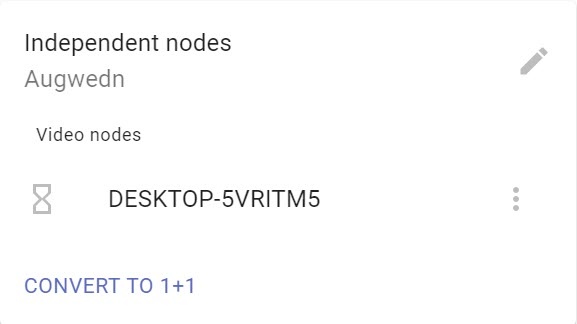

2. On the Configuration page, click CONVERT TO 1+1.

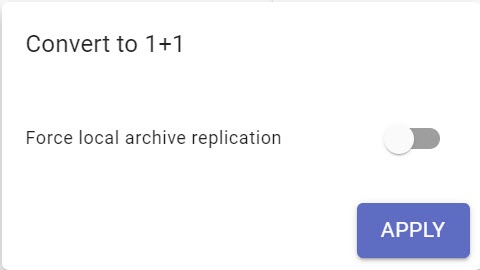

3. Activate the Force local archive replication parameter if you want the replication to the backup archive to be continuous regardless of the location of the master node.

4. Click the APPLY button to convert to 1+1 configuration.

...

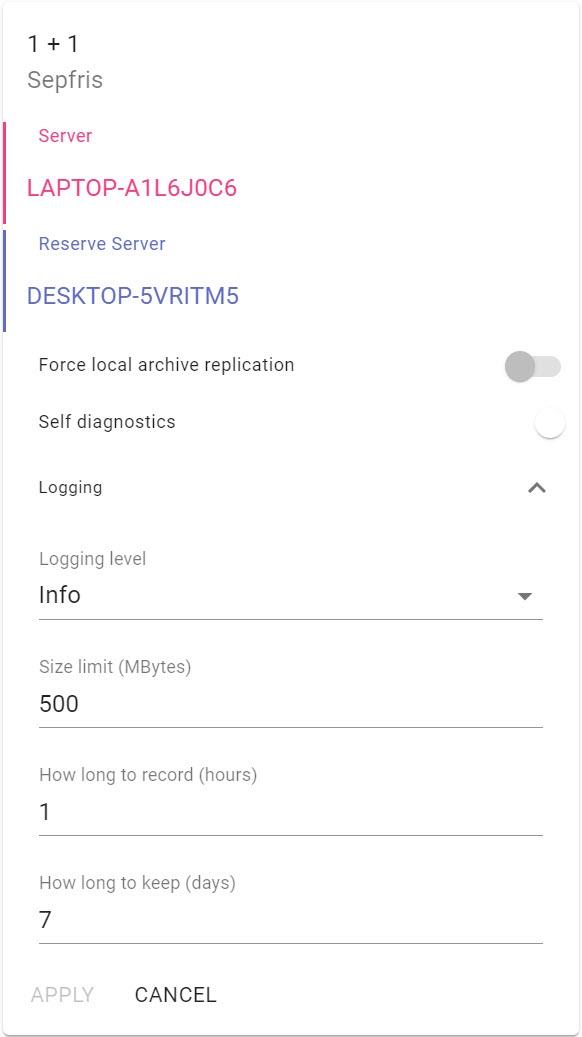

• activate/deactivate the self-diagnostics service (see Self-diagnostics service);
  Image Modified

• change the logging level (see Configuring Logging levels Log Management Utility);
• change the log archive parameters archiving options (seeConfiguring a Log archiveManagement Utility).

Setting up archive replication

...

1. Combine the master and the backup nodes into one domain (see Adding a Server to an existing Axxon- domain).
2. Create a local archive on the master node (see Creating an archive).
3. Add video cameras on the master node (see Adding Searching, adding, configuring and removing IP devices).
4. Set up video camera recording to the local archive (see Configuring recording to an archive).
5. Create an archive for replication on the backup node.
6. Set up the replication from the local archive to the archive for replication (see Configuring data replication). The replication period should be set to Always.

...

• to view the recordings when the master node was on the master Server, use the local archive;
• to view the recordings when the master node was on the backup Server, use the archive for replication (see Selecting an Archivearchive).
