The Captioner object is a child object of the Camera system object. It is designed for configuring titles used to configure captions display on a video recording and maintaining titles maintain captions database.

...

1. Go to the Hardware tab of the System settings dialog box.

2. Create the Captioner object object on the base basis of the the Camera object.

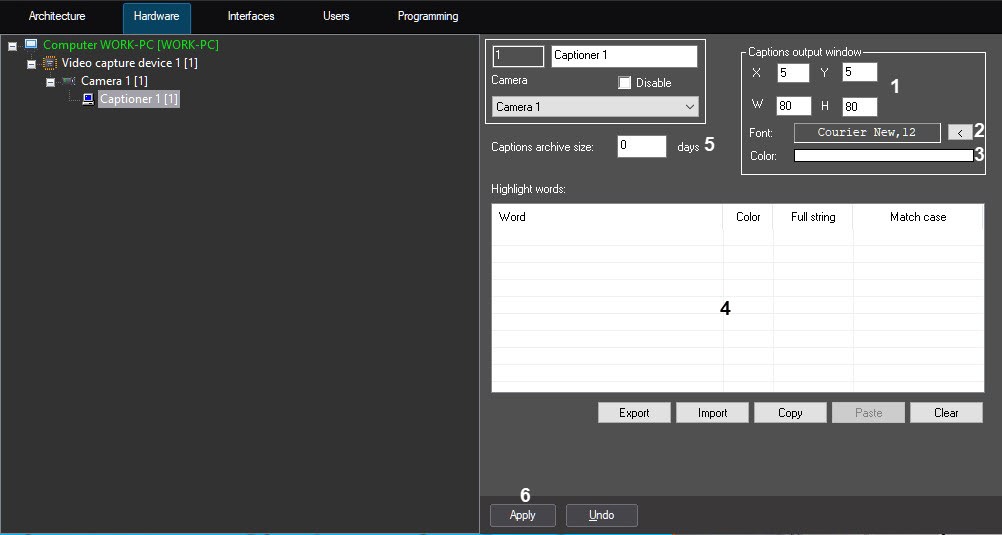

3. Specify the parameters of the titles captions output window (1):

   1. Set coordinates of the upper left corner of the titles captions output window:   X (horizontal indent from left border of screen) and Y (vertical indent from top border of screen) fields.
   2. Set measurement of the titles captions output window:  W  (width of the titles captions output window) and and H  (height of the titles captions output window) fields.
4. Specify the parameters of font used for titles captions output:

   1. Click the button (2).
   2. In the appeared Windows dialog box, specify font parameters and click click the OK button.
   3. Double left-click the Color field (3)
   4.  In the appeared Windows dialog box, select color and click click the OK button.
5. Specify the parameters for words highlighting (4):

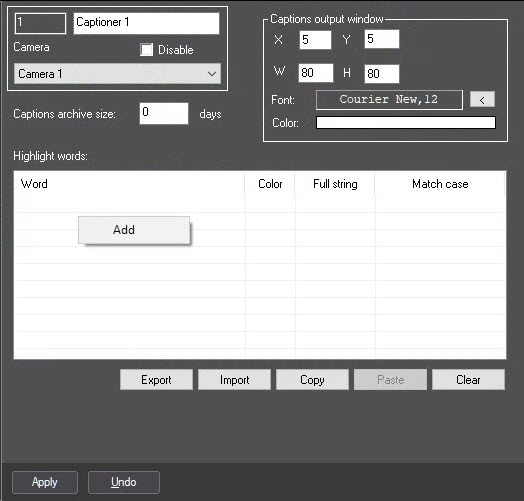

   1. Right-click the Highlight words field and select Add in the appeared context menu.

   2. In the appeared dialog box, type-in enter a required word and click click the OK button. The word is added to the Highlight words table.

   3. Specify the color with which the word will be highlighted by double left-clicking the Color field next to the specified word. In the appeared Windows dialog box, select color and click click the OK button.
   4. If the full string with a word is to should be highlighted, then set the the Full string checkbox.
   5. If the case of word characters is to should be matched, then set the the Match case checkbox.

   6. Repeat steps 5.1-5.5 for all required words.

      Info
      title Note
      Use the context menu for operations with words in the table (right-click a word). If the table is to be cleared, then click the Clear button.




6. Specify the maximum number of days as the difference between the newest and the oldest entry in the titles captions database for the given captioner in the the Captions archive size__days field (5). Entries which were added earlier than the specified number of days before the most recent entry will be automatically deleted "in a loop". If the 0 value is specified, the entries will not be deleted "in a loop".

   Info
   title Example
   For example, the titles captions archive size is 1 day. On Friday, the titles captions from the Captioner 1 were added to the titles captions database. On Saturday and Sunday the camera was turned off, and the titles captions were not recorded. On Monday the camera was turned on, and the titles captions from the Captioner 1 from Friday remained in the titles captions database until the new record was added to the titles captions database of the Captioner 1. In 3 minutes after the new record was made on Monday, the captions from Friday were deleted.




7. Click the Apply button (6).

...
