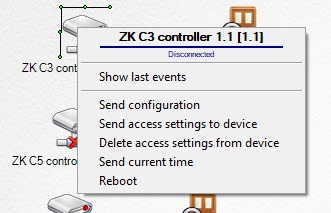

Control the ZK Teco controller is carried out in the Map interface window using functional menu of the AC ZK Controller C3-100 object.



Available commands in the context menu are described in the table.

CommandDescription
Send configurationSending configuration to the controller
Send access settings to deviceSending access settings to the controller
Delete access settings from deviceDeleting access settings from the controller
Send current timeSynchronization time between the controller and the Intellect Server
RebootRestarting the controller

Note.

Commands for controlling the C3-200 and C3-400 controllers are the same.
