Setting up the Receipt viewer window display

To set up the Receipt viewer window, the following parameters should be specified:

1. coordinates – the position and size of the window;
2. overlay type – the type of the overlay of the synchronous display of video image and search results;
3. print reports – the operator can print the search results.

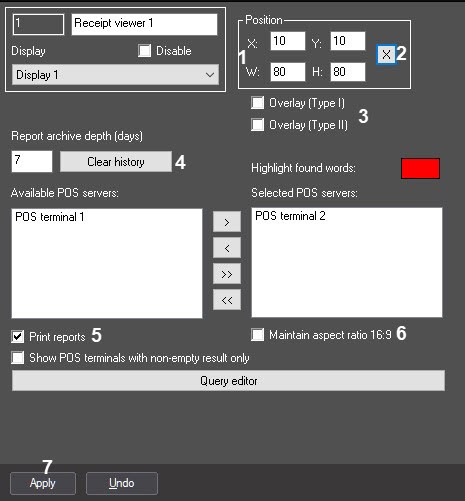

To set up the Receipt viewer window, do the following:

1. Specify the position and size of the Receipt viewer window: X is the indent relative to the left border of the video image, Y is the indent relative to the top border of the video image, W is the window width, H is the window height.

   Note.

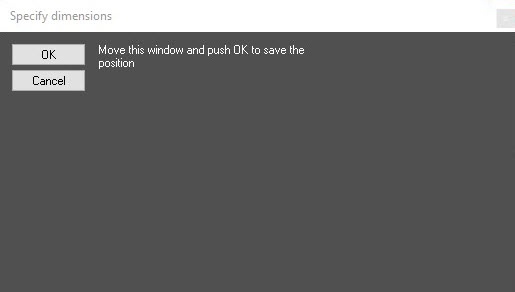

   The coordinates can be set up using the visual method. Click the  button and use the mouse to set the location and size of the sample window, then click OK. The coordinates of the sample window will be filled in the X, Y, W and H fields automatically.

2. Set the overlay type by checking the Overlay (Type I) or Overlay (Type II) checkbox (1).

3. To allow the operator to print the search results, check the Print reports checkbox (2).
4. Set the Maintain aspect ration of 16:9 to display the archive in 16:9 format (3).

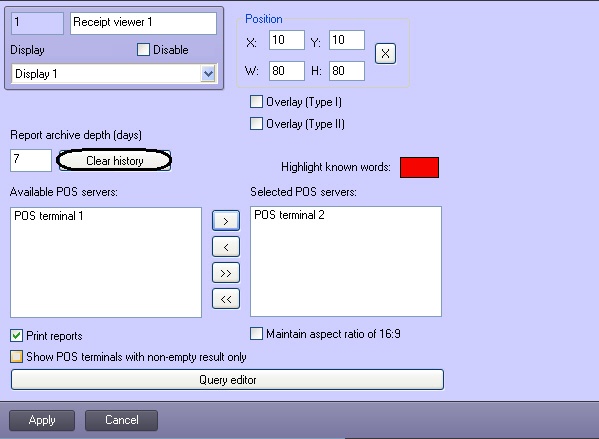

The Receipt viewer window is now set.
