Creating a Face counter report (common report by all counting points)

The Face counter report (common report by all counting points) allows getting data about the number of captured faces (people/persons) using the data from the face recognition servers. The data can be presented as a table and a chart.

To create the Face counter report (common report by all counting points), do the following:

1. Select the Face counter report (common report by all counting points) (see Selecting a type of reports by Visitors counting detectors). As a result, the dialog box for specifying the report parameters will be displayed.

2. Set the report parameters in the following way:

   1. In the Detectors field set checkboxes in those Face Recognition Server objects information on which should be displayed in the report (1).

   2. Set the Add total per day checkbox to display sum of positions per day (2).

   3. Specify the period in the following way:
      1. From the Receiving data period drop-down list select the time period for which the report is to be created (3).

      2. If the User defined period is selected, enter the date of start and end periods for which the report is to be created in the from and to fields using the Calendar tool.

         Note

         Click the  button near the corresponding field to use the Calendar tool.

      3. If the User defined 2 period is selected, enter additionally the time of start and end periods for which the report is to be created using the  button.
      4. If another period type is selected, specifying the date of start and end periods is not needed.
   4. Enter a time period (in minutes) during which the values received from people counter detector will be summarized in the Step field (4).
   5. From the Maximum value drop-down list select a maximum value of people that will be displayed in a chart (5).

   6. From the Time zone drop-down list select time zone by which report is to be created (6).

      Note.

      Time zones created in Axxon PSIM which have only one time period and haven't got any inclusions are available to select. Selection of week days is not performed. Detailed information about creation and using of time zones is presented in Creating and using time schedules.

   7. If it is necessary to view a report as a chart, set the corresponding checkbox (7).
   8. In the Layout field, select the print layout of the report: Portrait, Landscape (8).
   9. Set the Sum results checkbox to display sum result by selected detections in the report (9).
3. To create a report click Execute (10).

4. As a result a face counter report detailed by servers with specified parameters is displayed.

   Example of a face counter report detailed by servers as a chart is given in the following figure.



   Note

   The number of people (persons) in the report means the number of captured faces, not the number of unique visitors.

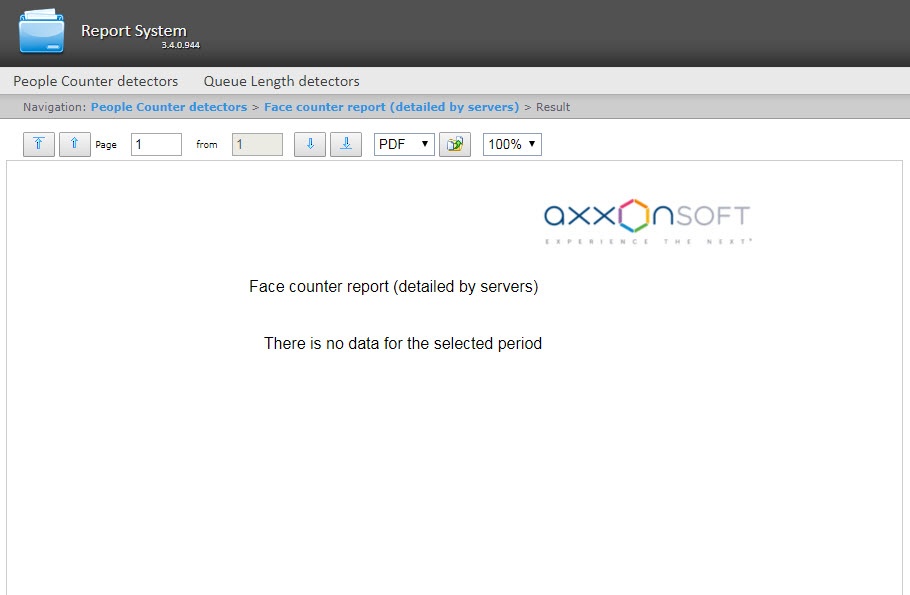

   If there is no data for specified time period, the report will be displayed as in the following figure.
