To configure the ATM-Intellect Workstation from another server in a distributed configuration, do the following:

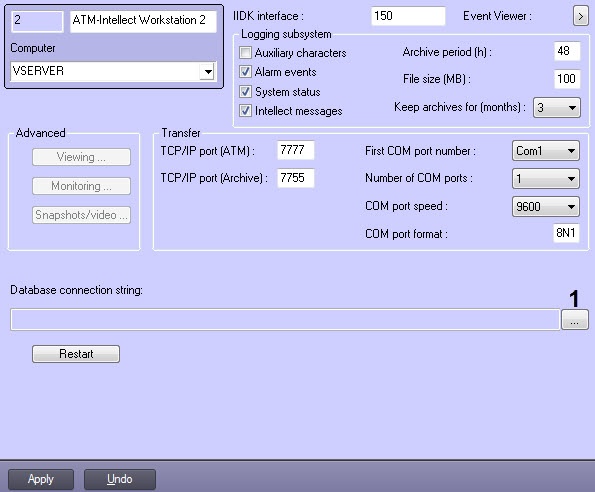

  1. Go to the settings panel of the ATM-Intellect Workstation object.

  2. Click the  button (1). The Data Link Properties window opens. Configure the connection to the remote ATM-Intellect Workstation database as follows:

    Note

    The Database connection string parameter is displayed only if the ATM-Intellect Workstation is configured from another server in a distributed configuration.

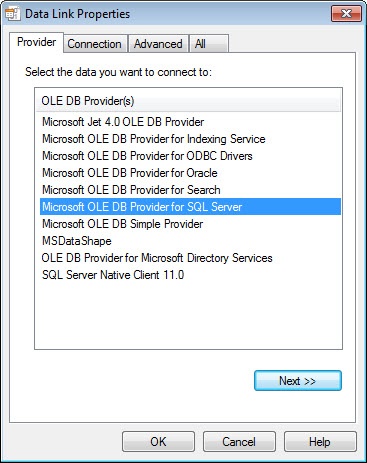

    1. Go to the Provider tab. Select Microsoft OLE DB Provider for SQL Server.

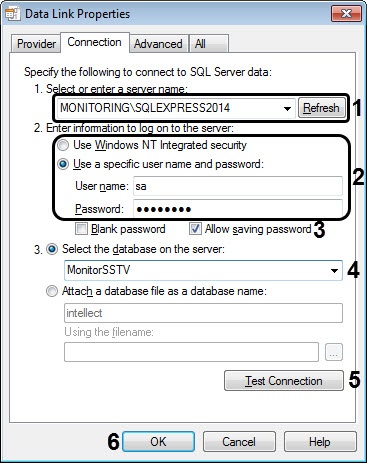

    2. Go to the Connection tab. From the 1. Select or enter a server name drop-down list, select the name of the database server that stores the ATM-Intellect Workstation database (1).
    3. Set the 2. Enter information to log on to the server switch to the Use a specific user name and password position and enter the name and password to connect to the MS SQL Server (2).
    4. Set the Allow saving password checkbox (3).
    5. From the Select the database on the server drop-down list, select the name of the ATM-Intellect Workstation database (MonitorSSTV by default) (4).
    6. Click the Test Connection button (5). If the connection data is correct, a window with the message "Connection check completed" will be displayed.
    7. Click OK (6).

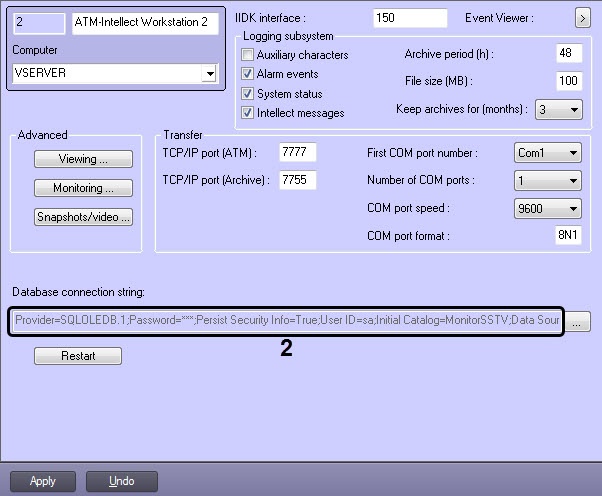

  3. The configured string of connection to the ATM-Intellect Workstation database will be displayed in the text field (2).
  4. As a result, you can start configuring the ATM-Intellect Workstation (see ATM Intellect Workstation configuration).

Configuring the ATM-Intellect Workstation from another server in a distributed configuration is now complete.
