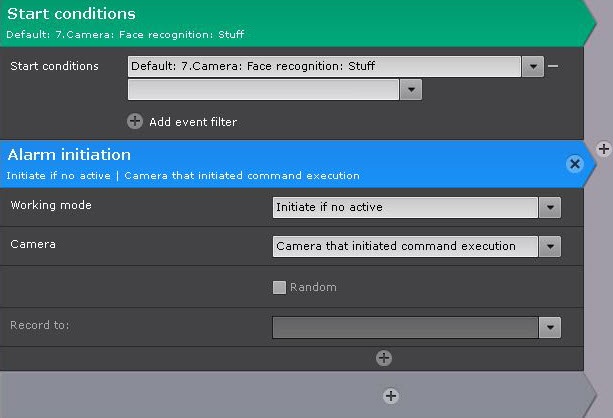

Alarm initiation

This macro can be used together with the Dialog Board (see Configure the Dialog Board).

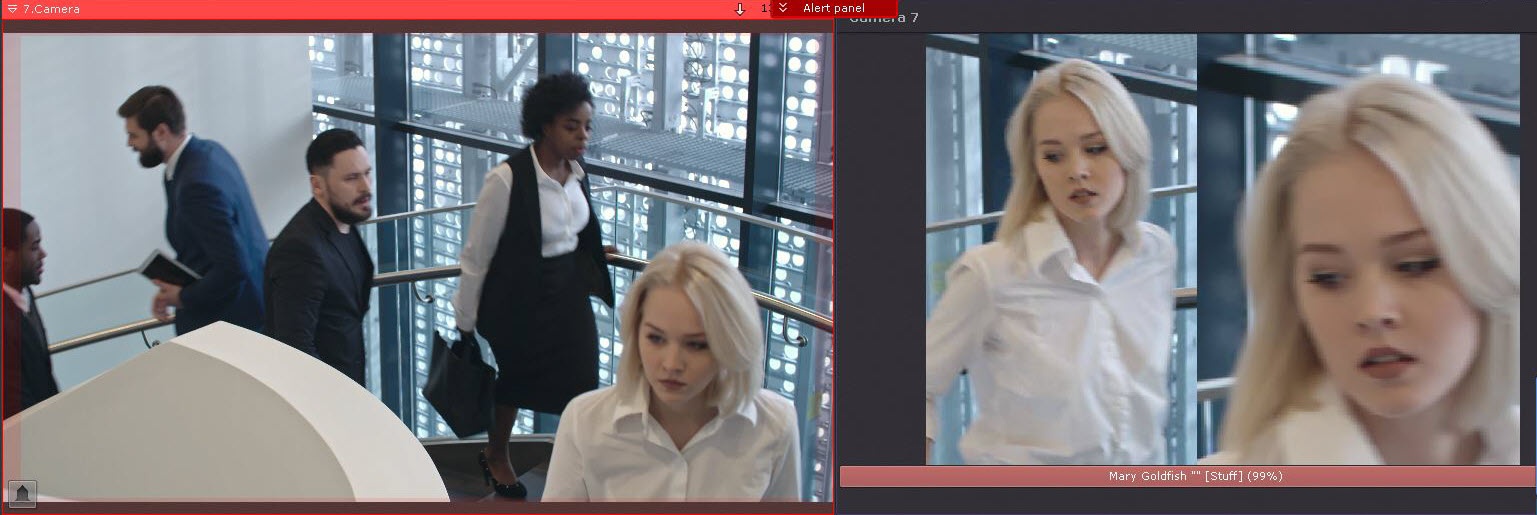

If the Dialog Board is configured to display an alarm and linked with a video camera (see Linking cells), then when a face from the list is recognized, the following information will be displayed on the Dialog Board:

  1. Reference photo from the face list.
  2. An enlarged image of the recognized face in the frame.
  3. The name of the recognized person, the comment in quotation marks, the name of the face list in square brackets, and the percentage of similarity with the reference face in parentheses (see Faces).

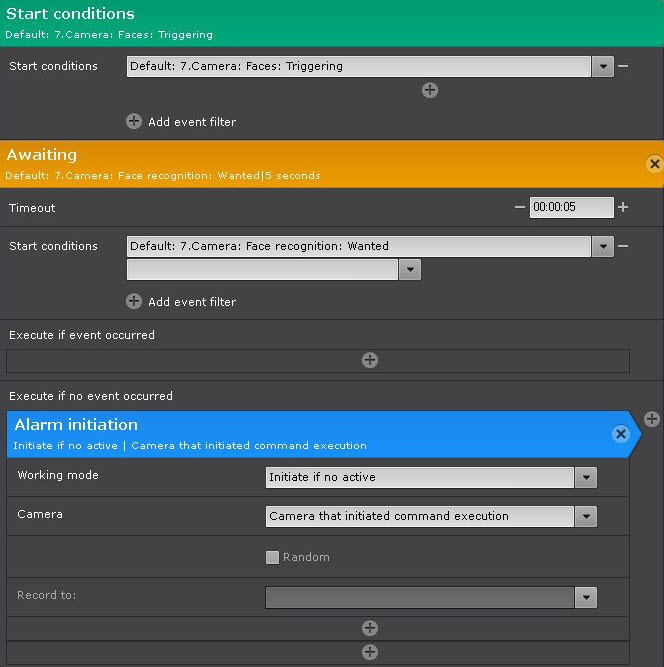

Response to a recognition of a non-listed person

Sending an E-mail

If the E-mail is sent via the SMTP Server (see The E-mail notifier object), then 3 files will be attached to the message:

  • full frame at the moment of face recognition;
  • reference photo from the face list;
  • an enlarged image of the recognized face in the frame.

Starting export

As with the E-mail notifications, three files will be exported when you export an image for a facial recognition event i.e. when a match from Lists of Facial Templates is detected:

  • Full frame at the moment of facial recognition;
  • Reference photo from the List of Facial Templates.
  • Close up shot of the target face captured in the scene.
