In the ACFA PSIM software package it is possible to congifure supportings of formats of required access cards.

For this, open the FormatsCard.xml file located in the <Directory of the Axxon PSIM software installation>\Modules and specify corresponding parameters of format for access card is to be added:

  • BitsOnCard – number of bits on card;
  • BitsForEven – number of bits for even check;
  • BitsForOdd – number of bits for odd check;
  • NumBitsInFC – number of bits in facility code;
  • IndexFCBegin – index of faciliy code's begin;
  • NumBitsInCardNumber – number of bits in card number;
  • IndexCardNumberBegin – index of card number's begin.

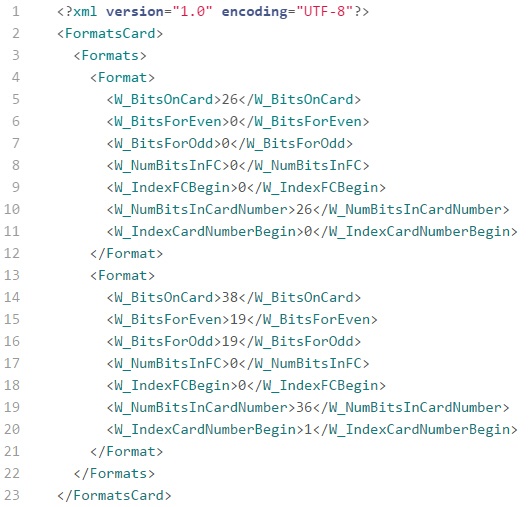

Example of configuring the Wiegand26 and Wiegand38 card formats supporting is follows:

Note.

Wiegand 26 and Wiegand 38 card formats are supported on default.

Attention!

Maximum number of card formats are to be added is 6. If more than 6 card formats have been added, the first six formats will be supported and other formats will be ignored.
