Attention!

Starting with Detector Pack 3.12, a demo license has been added to the VL Analytics Pack add-on (see Installing DetectorPack add-ons). Demo license is valid for 30 days after installation on one Server or a virtual machine.

To activate a license for the Human tracker VL (see Configuring the Human tracker VL), do the following:

  1. Request EID and ProductID from the technical support.

    Attention!

    EID and ProductID are linked with the MAC address of the Server. If the MAC address changes, you need to request EID and ProductID again.

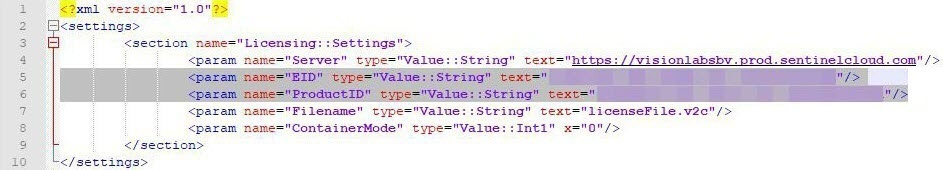

  2. Open the following file in a text editor: C:\Program Files\Common Files\AxxonSoft\DetectorPack\VLSdk\gpu\data\license.conf.

  3. Enter the received EID and ProductID.

    <param name="EID" type="Value::String" text="received EID"/>
<param name="ProductID" type="Value::String" text="received ProductID"/>

  4. Save the file: C:\Program Files\Common Files\AxxonSoft\DetectorPack\VLSdk\gpu\data\license.conf.

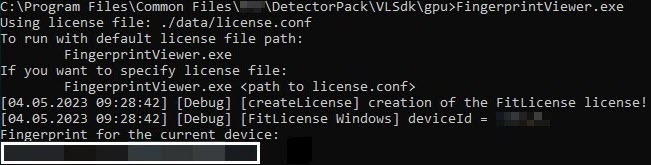

  5. In the command line, run the following file as administrator: C:\Program Files\Common Files\AxxonSoft\DetectorPack\VLSdk\gpu\FingerprintViewer.exe. You will receive the FingerPrint data.

  6. Go to the website.

    Attention!

    If you fail to log in to the website, contact the technical support.

    Guide to the Sentinel EMS Customer Portal

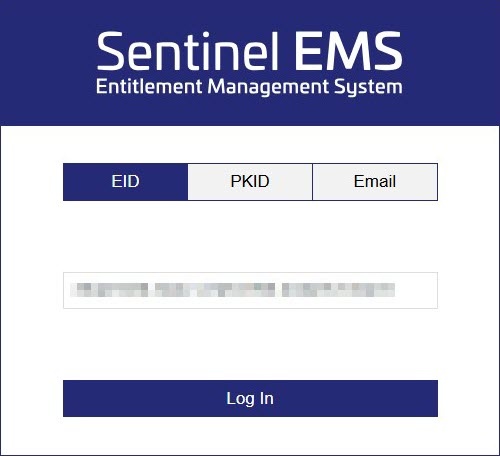

  7. Log in using the received EID.

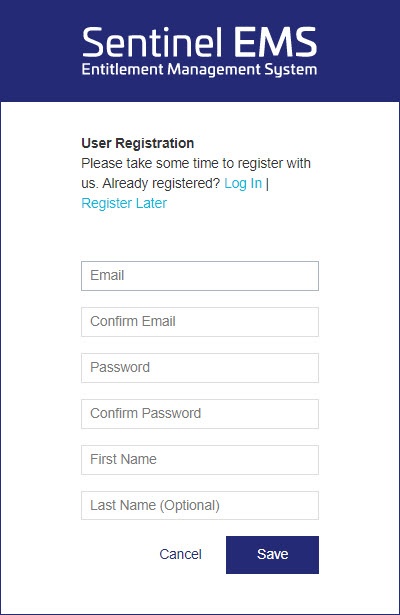

  8. Fill in the user registration data.
  9. Click the Save button.

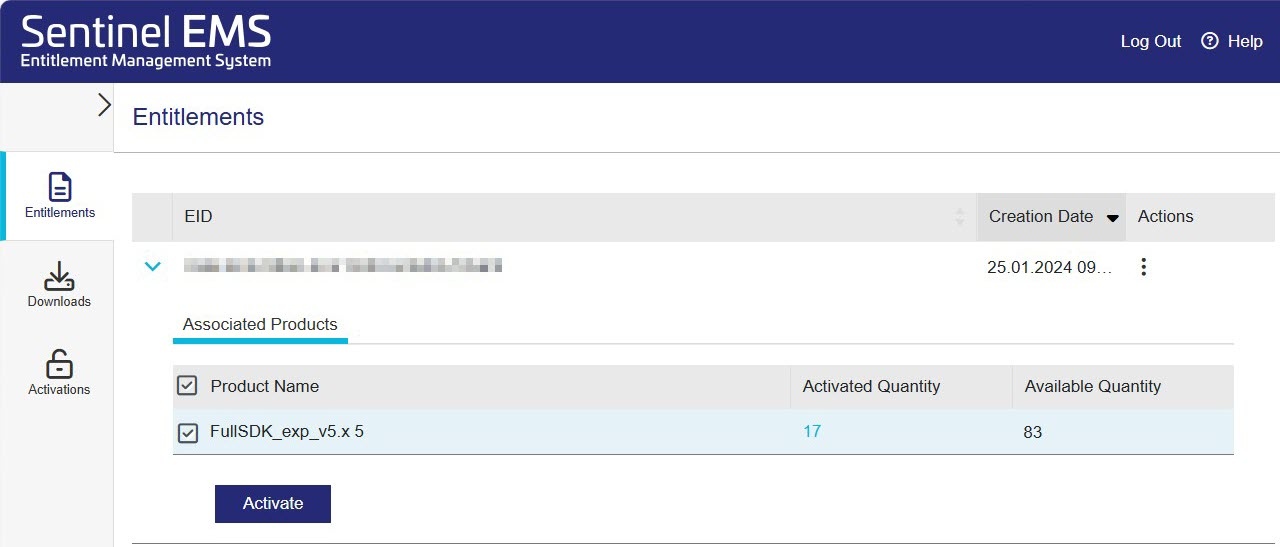

  10. Click the Activate button to activate the license.

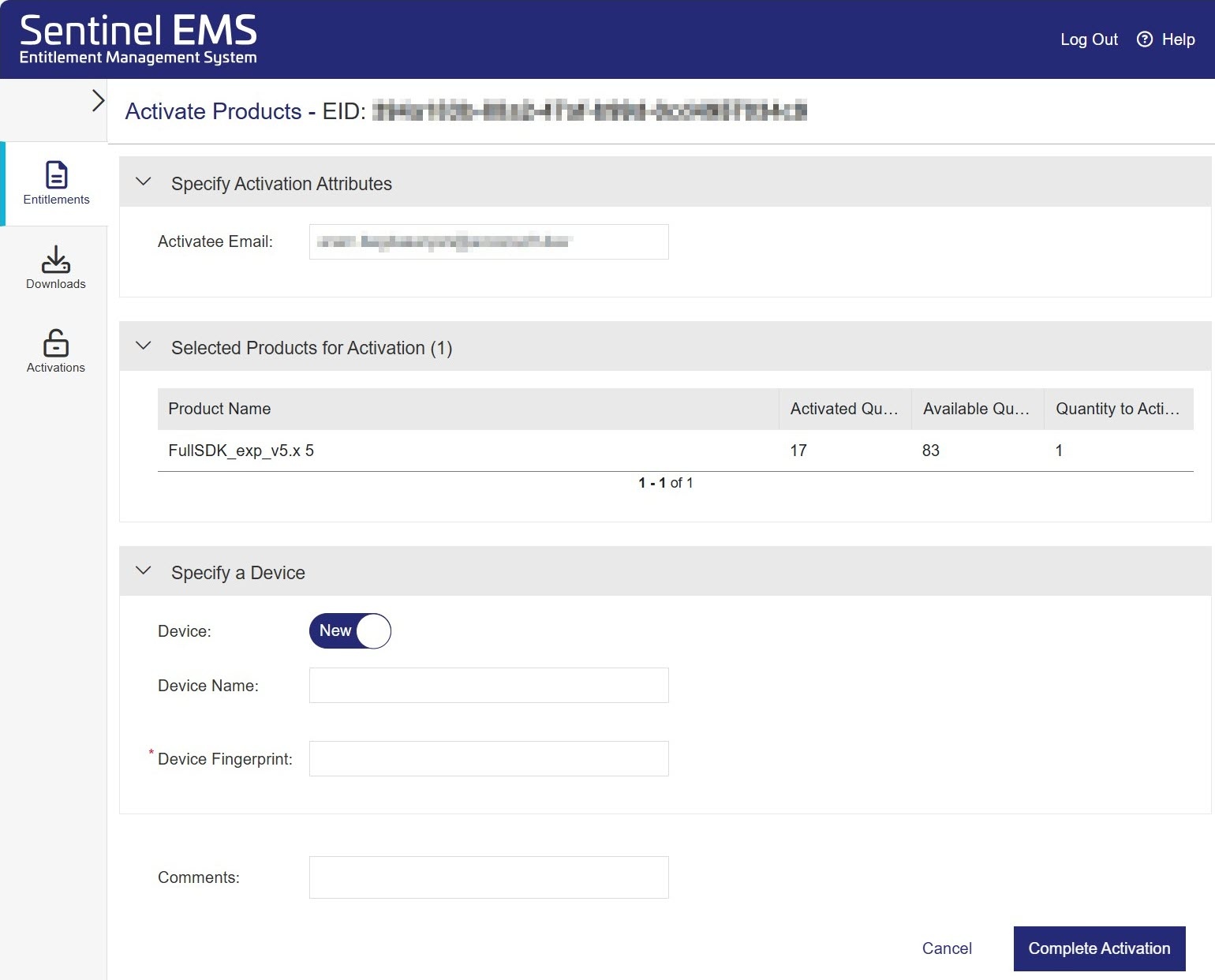

  11. In the Activatee Email field, specify the email address to confirm the license activation. The licenseFile.v2c file with license data will be sent to the specified email address.
  12. In the Device FingerPrint field, specify the FingerPrint data.
  13. Click the Complete Activation button.
  14. Place the downloaded licenseFile.v2c file on the Server in the folder: C:\Program Files\Common Files\AxxonSoft\DetectorPack\VLSdk\.
  15. Make sure the license is successfully activated. If the Server is connected to the internet, the license will be checked automatically.

Note

If the Server doesn't have internet connection, do the following:

  1. Do steps 2–5, 14 on the Server where the license will be used.
  2. Do steps 1, 6–13, 15 on any computer connected to the internet.

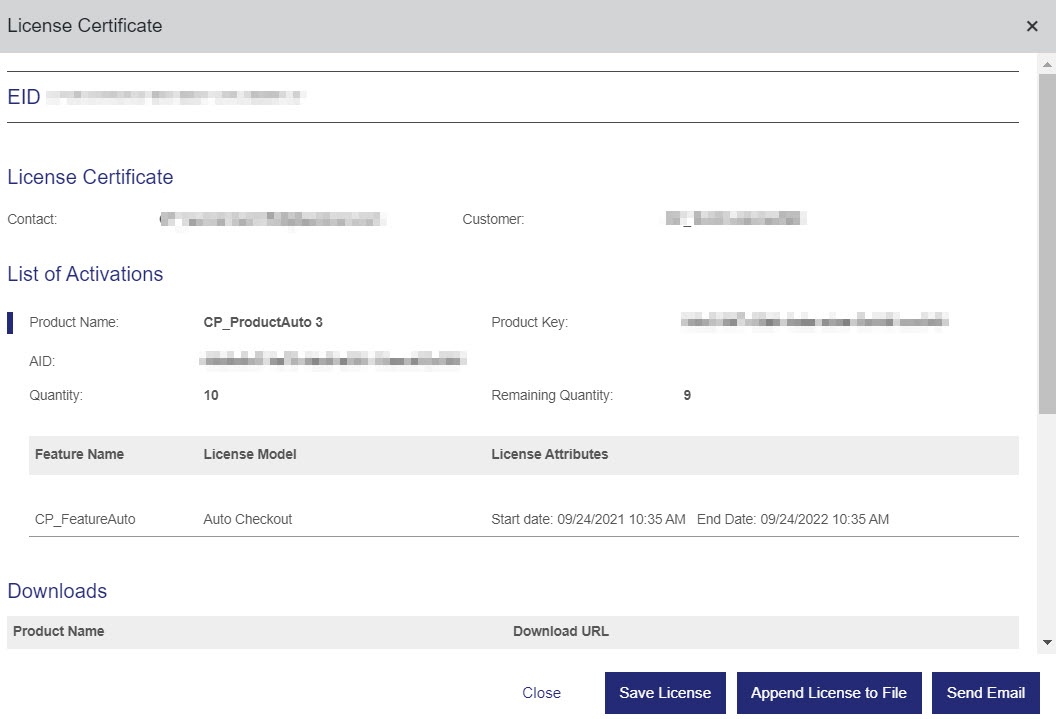

  3. Click the View License Certificate button.
  4. Download the license file by clicking the Save License button.

The license is activated on the Server with no internet connection.

The Human tracker VL license is activated.
