AC-215 controller can service no more than two readers.

One can create the unlimited number of the Reader objects, but only those that has the address will function (the Number parameter).

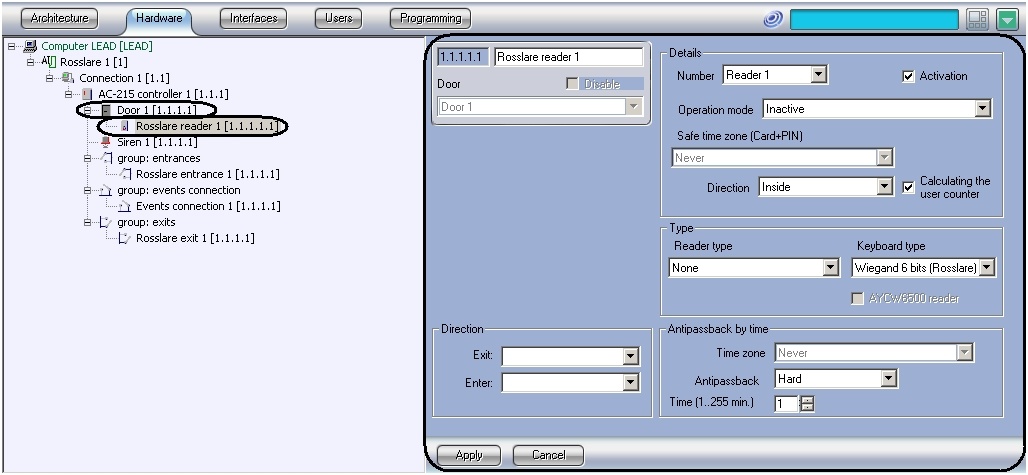

Configuration of AC-215 controller readers is performed on the setting panel of the Rosslare reader object. This object is created on the basis of the Door object on the Hardware tab of the System settings dialog box.

To configure readers do the following:

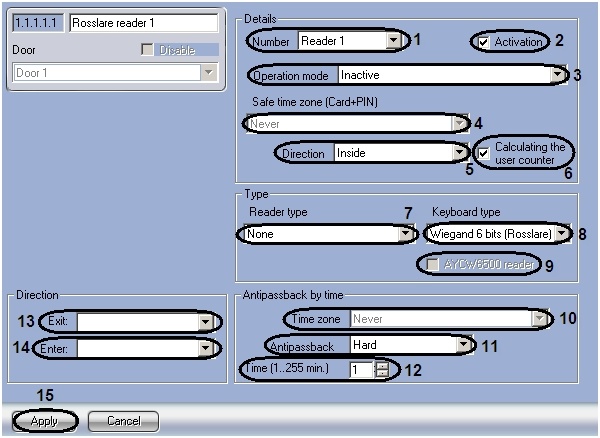

  1. Go to the setting panel of the Rosslare reader object.
  2. From the Number dropdown list select the corresponding reader (1).
  3. For reader activation set the Activation checkbox (2).

  4. From the Operation mode dropdown list select the mode of reader operation (3).

    Operation mode

    Description

    Inactive

    Reader is inactive

    Card only

    Access is given only by access card

    PIN only

    Access is given only by PIN code

    Card or PIN

    Access is given by access card or by PIN code

    Forbidden access mode

    Access is forbidden for everyone


  5. From the Safe time zone (Card+PIN) dropdown list select the time zone for reader operation (4).

  6. From the Direction dropdown list select the direction of reading the pass point (5).

     It’s necessary to select Inside direction if the reader is the exit for the pass point which it belongs to.


  7. To calculate the user counter set the Calculating the user counter checkbox (6).

  8. From the Reader type dropdown list select the access card format (7).

    For Rosslare readers set Wiegand26 format.


  9. From the Keyboard type dropdown list select the type of reader keyboard (8).

    For Rosslare readers set Wiegand 6 bit Rosslare format.


  10. To activate AYCW6500 reader set the AYCW6500 checkbox (9).
  11. From the Time zone dropdown list select the time zone for double pass control (10).
  12. From the Antipassback dropdown list select the mode for double pass control (11).
  13. In the Time (1..255 min.) field using up-down keys set the time of double pass control without selecting the time zone in minutes (12).
  14. From the Exit dropdown list select the Division object that corresponds to the territory and is on the entrance side to the reader (13).
  15. From the Enter dropdown list select the Division object that corresponds to the territory and is on the exit side to the reader (14).
  16. To save changes click Apply (15).

Configuration of readers is completed.
