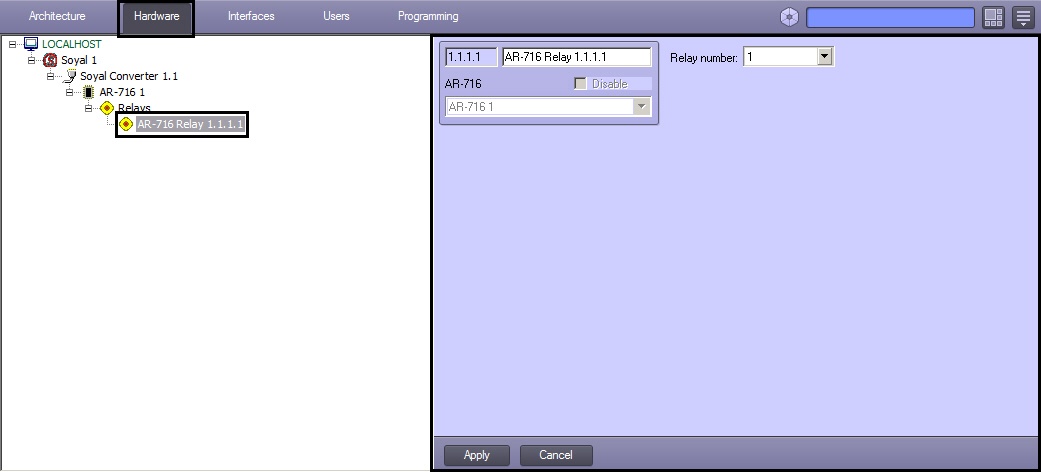

Configuration of AR-716 Relay object is carried out on setting panel of corresponding object. This object is created on the basis of AR-716 object on Hardware tab of System settings dialog box.

To configure the AR-716 relay do the following:

1. Go to the AR-716 Relay object's settings panel.

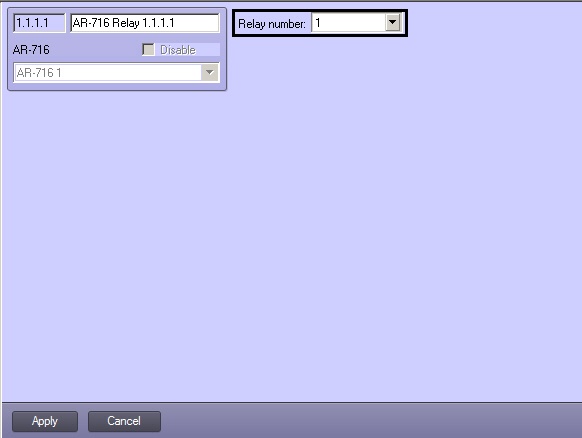

2. From the Relay number drop-down list select the number of AR-716 Relay object (1).
3. To save changes, click the Apply button.

This completes the configuration of the AR-716 Relay object.
