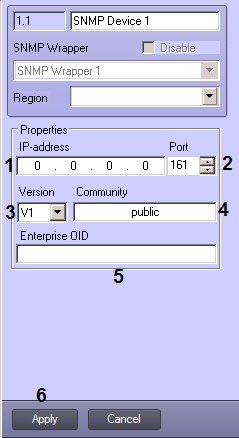

Device connection via SNMP is configured on the settings panel of the SNMP Device. This object is created under the SNMP Wrapper object in the Hardware tab of the System settings dialog box.

Configure device connection as follows:

1. Go to the settings panel of the SNMP Device object.

2. Specify the device IP address (1).
3. Specify device ID in the Enterprise OID (trap v.1 only) (2) field.

4. Select the version of SNMP protocol supported by the connected device from the Version drop-down list (3).

   The SNMP version is selected according to the device specifications (see official reference guides for the device).




   1. For V1 version:

      1. In the Community field, enter group affiliation password (4).

         Standard community values are public or private for read or read and write permissions accordingly.




      2. Enter the device identification number into the Enterprise OID field (5).

   2. For V2 version:

      1. Just enter group affiliation password in the Community (4).




   3. For V3 version:

      1. Select SNMP Wrapper user from the drop-down list (4, see also Configuring of users).

5. To save changes click the Apply button (6).

Device connection via SNMP is now completed.
